Flint-2: VPN and Policy Routing

[Den4ik]

Hi there,

I’m using a Flint 2 (GL-MT6000) on firmware 4.9.0 beta and really like the new VPN Dashboard in Policy Mode.

My use case is:

• Some specific devices in the LAN should go through the VPN with All Targets (full tunnel).

• All other devices should only route specific domains + IP ranges through the same VPN, while the rest of their traffic goes directly to the internet.

Currently, it looks like one Tunnel = only one rule (either “Specified Devices → All Targets” or “All Clients → Specified Domain/IP List”).
To achieve the above I have to create two separate Tunnels using the same VPN profile.

My questions:

1. Is it possible (or planned) to attach multiple rules/policies to a single Tunnel? For example, inside one Tunnel have several “From → To” conditions that are evaluated in order.

2. If not, what is the recommended way to achieve the scenario above while keeping only one real VPN connection (one WireGuard interface)?

[will.qiu]

Hi

Please refer to our responses below:

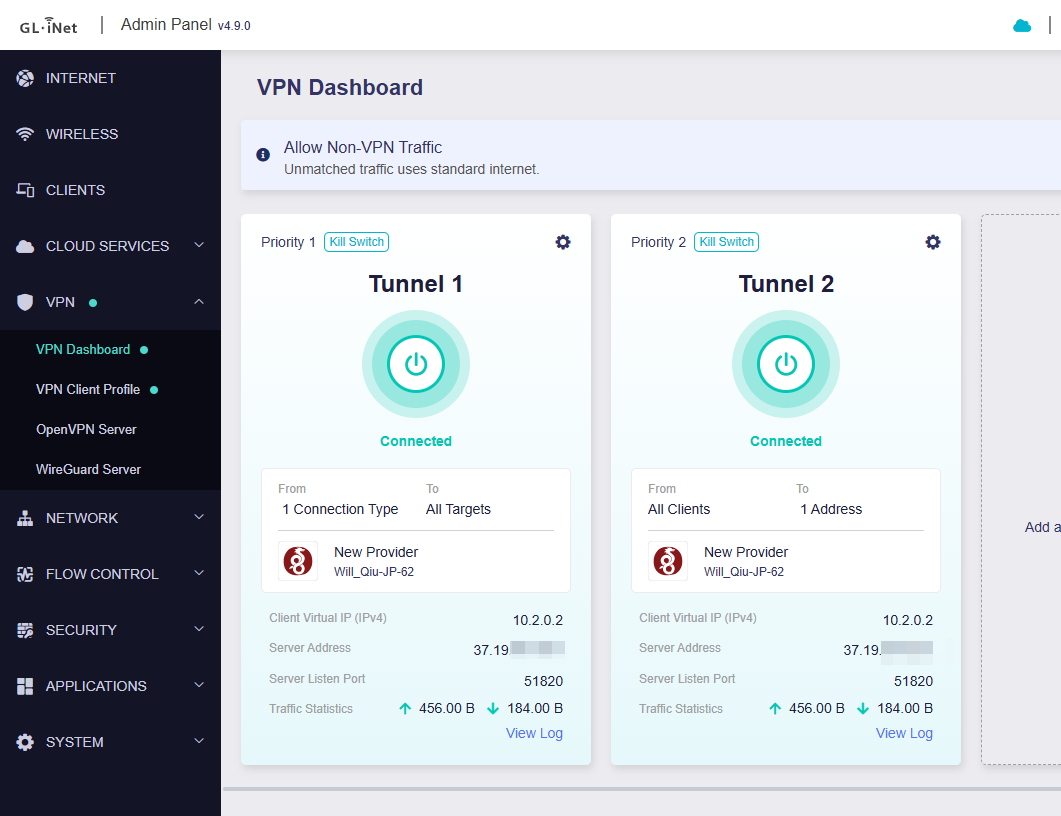

1. We currently do not support attaching multiple rules/policies to a single tunnel. You can achieve this by creating multiple tunnels.

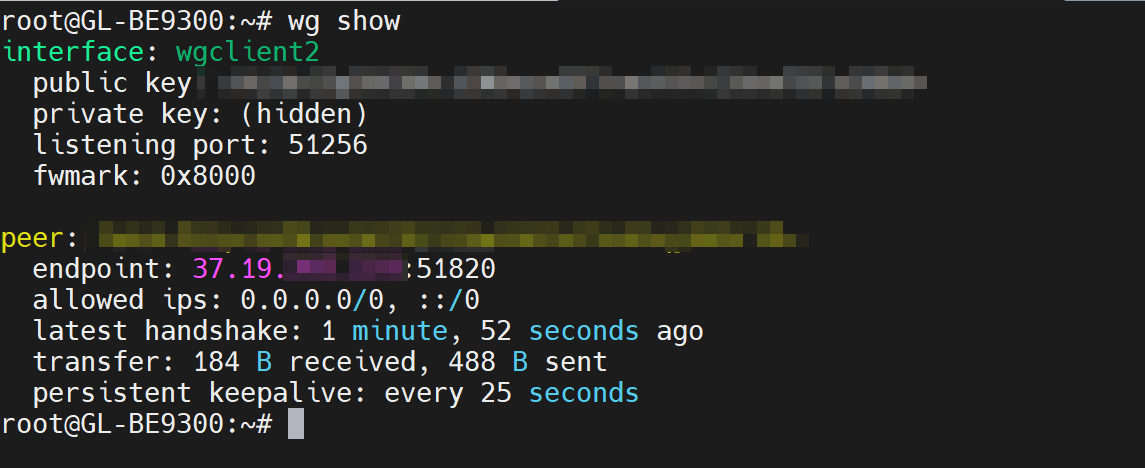

2. When multiple tunnels use the same WireGuard configuration file, only one WireGuard interface will be created, as shown below:
