Gl-A1300 can't see Huawei E5576-320 in Admin Panel v4.4.6 UI

Technical Support for Routers
1

This post was flagged by the community and is temporarily hidden.

2

Here is my luci admin network screenshot with Huawei E5576-320 connected

Screenshot 2023-11-11 at 19.28.01
Screenshot 2023-11-11 at 19.28.011938×1468 385 KB

1 Like
3

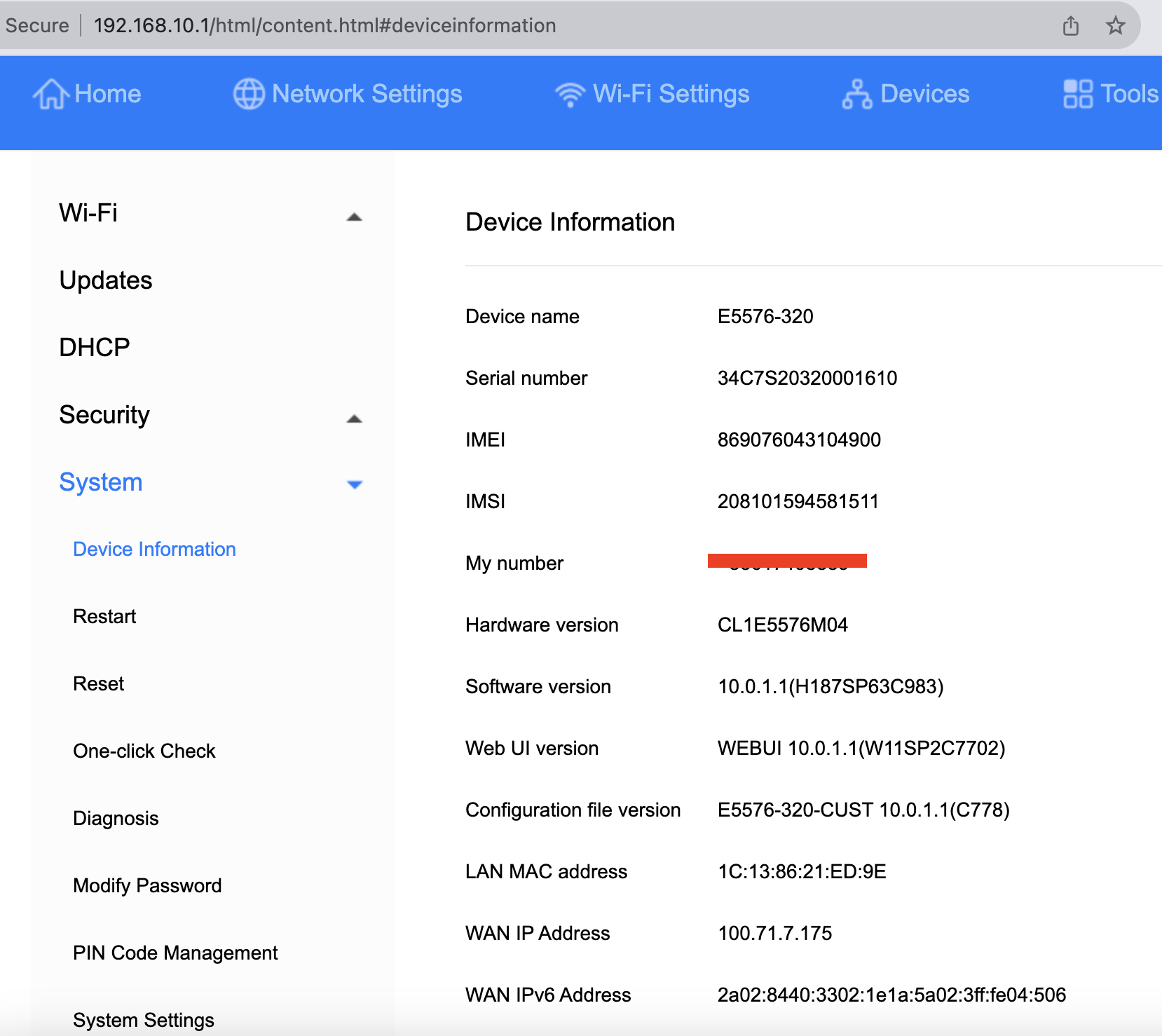

And here is the full Huawei router specification. I can connect to it from the browser, and it has LTE internet connection. I can connect it to Gl A1300 in repeater mode, but this way the connection is not very stable I really want to setup USB connection

Screenshot 2023-11-11 at 19.31.56
Screenshot 2023-11-11 at 19.31.561658×1478 245 KB

4

This is always printed indicating driver registration.

When a modem is found, the log would be like this:

Mon Nov 13 18:26:26 2023 kern.info kernel: [6416661.529188] usb 1-1: new high-speed USB device number 2 using xhci-hcd
Mon Nov 13 18:26:27 2023 kern.info kernel: [6416661.861486] option 1-1:1.0: GSM modem (1-port) converter detected
Mon Nov 13 18:26:27 2023 kern.info kernel: [6416661.862002] usb 1-1: GSM modem (1-port) converter now attached to ttyUSB0

You can use to observe.

logread -f

and then connect USB modem.

5

Thank you for your quick response! There is nothing in logread -f when I’m connecting Huawei E5576-320. Does this mean USB connection is not supported for this model?
