Hello, i have an gl-xe300ac and want to extend the wifi range

dyabolik004 · August 25, 2025, 11:44am

Hello,

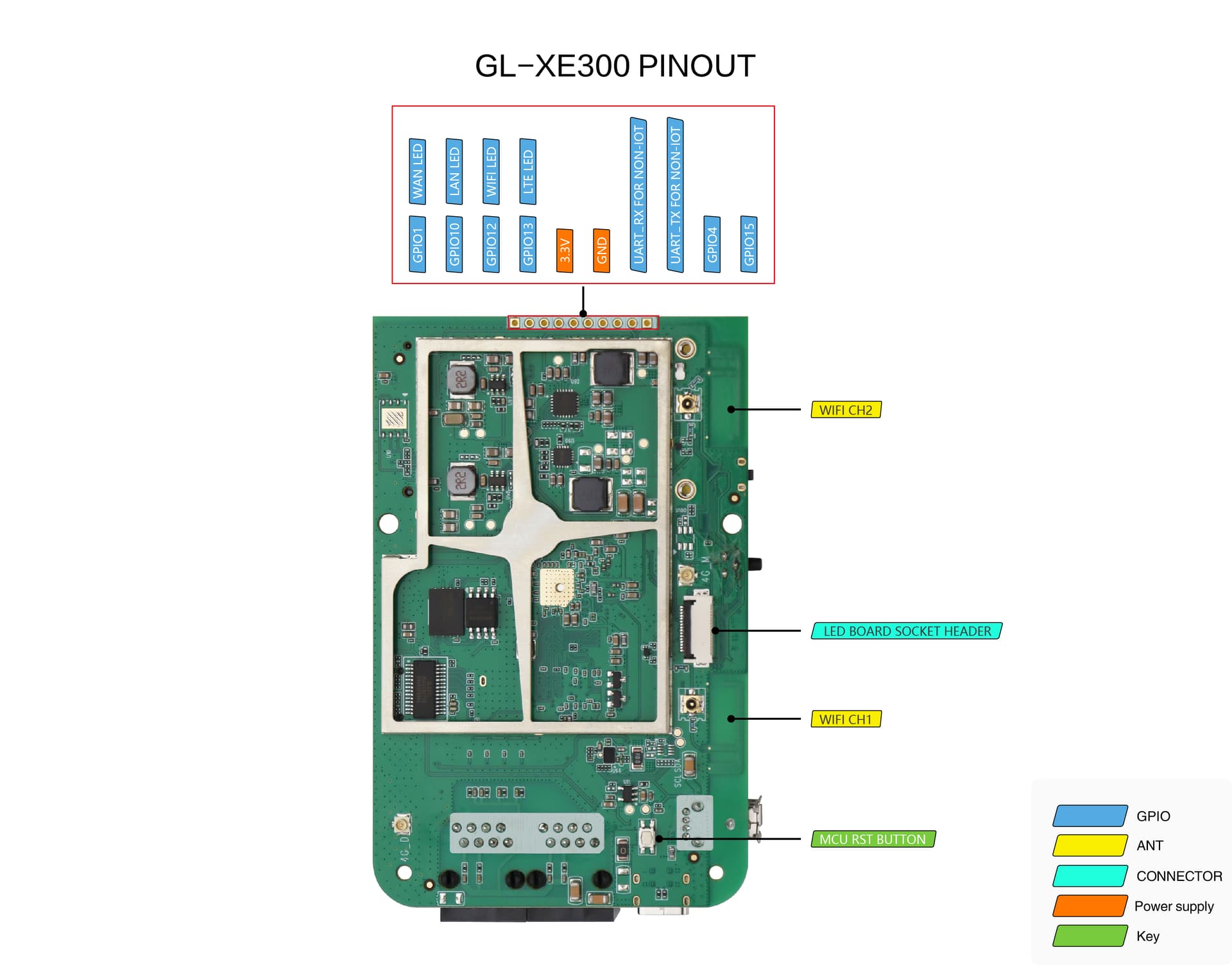

i have seen from the pcb pinout that it has 2 uFl connectors near the integrated wifi antennas.
If i connect 2 external antennas there for wifi it will work?

will.qiu · August 26, 2025, 10:13am

Hi

Yes, it can be used to connect external antennas.

However, please note that disassembling the device will void the warranty.

dyabolik004 · August 27, 2025, 6:09pm

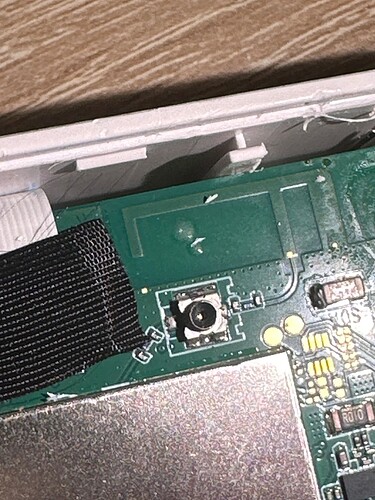

Thanks. I know that. I have some difficulty with The Connector. Îs it an U.fl?

dyabolik004 · August 27, 2025, 7:01pm

I have google a little and find put that it îs a murata swf switch test Connector only for testing. How can i modify the board to use external wifi antennas

will.qiu · August 28, 2025, 7:37am

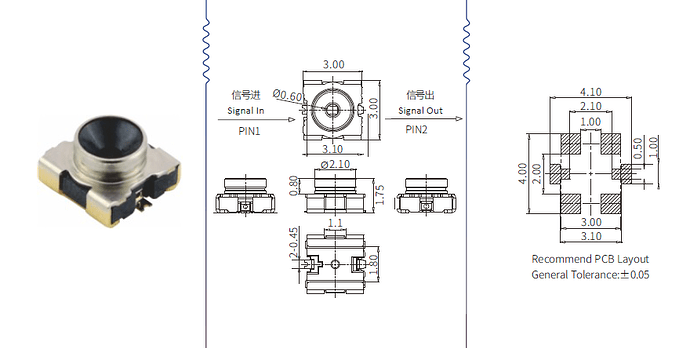

It's a Mini RF I Switch Connector.

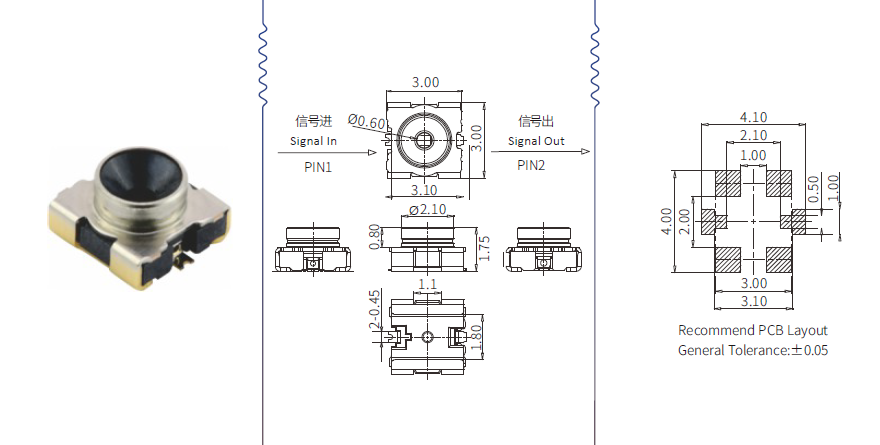

I have enclosed its dimensions diagram.
You may consider replacing it with another U.FL connector with the PCB layout compatible.
