OpenVPN Client

ja16779 · October 27, 2025, 7:58pm

Hello Team, I am trying to configure OpenVPN Client in a Flint-2 router, I have imported the Profile to the Flint-2 router, but does not connect, I have Included the Logs. I just tested with 1 Laptop the OpenVpn Server config, and everything works fine with the Laptop , but not from the Flint-2

I will appreciate all your help you can give. Thanks

Mon Oct 27 13:43:50 2025 daemon.notice netifd: Interface 'ovpnclient1' is now downMon Oct 27 13:43:50 2025 daemon.notice netifd: Interface 'ovpnclient1' is setting up nowMon Oct 27 13:43:52 2025 daemon.notice ovpnclient1[31870]: Note: cipher 'AES-256-CBC' in --data-ciphers is not supported by ovpn-dco,disabling data channel offload.Mon Oct 27 13:43:52 2025 daemon.notice ovpnclient1[31870]: OpenVPN 2.6.14 aarch64-openwrt-linux-gnu [SSL (OpenSSL)] [LZO] [LZ4] [EPOLL] [MH/PKTINFO] [AEAD] [DCO]Mon Oct 27 13:43:52 2025 daemon.notice ovpnclient1[31870]: library versions: OpenSSL 3.0.16 11 Feb 2025, LZO 2.10Mon Oct 27 13:43:52 2025 daemon.notice ovpnclient1[31870]: DCO version: N/AMon Oct 27 13:43:52 2025 daemon.warn ovpnclient1[31870]: NOTE: the current --script-security setting may allow this configuration tocall user-defined scriptsMon Oct 27 13:43:52 2025 daemon.notice ovpnclient1[31870]: TCP/UDP: Preserving recently used remote address: [AF_INET]66.115.177.198:443Mon Oct 27 13:43:52 2025 daemon.notice ovpnclient1[31870]: Socket Buffers: R=[131072->131072] S=[16384->16384]Mon Oct 27 13:43:52 2025 daemon.notice ovpnclient1[31870]: Attempting to establish TCP connection with [AF_INET]66.115.177.198:443Mon Oct 27 13:43:52 2025 daemon.notice ovpnclient1[31870]: TCP connection established with [AF_INET]66.115.177.198:443Mon Oct 27 13:43:52 2025 daemon.notice ovpnclient1[31870]: TCPv4_CLIENT link local: (not bound)Mon Oct 27 13:43:52 2025 daemon.notice ovpnclient1[31870]: TCPv4_CLIENT link remote: [AF_INET]66.115.177.198:443Mon Oct 27 13:43:52 2025 daemon.notice ovpnclient1[31870]: TLS: Initial packet from [AF_INET]66.115.177.198:443, sid=4367f6d9 dfbc0a8fMon Oct 27 13:43:52 2025 daemon.notice ovpnclient1[31870]: net_route_v4_best_gw query: dst 0.0.0.0Mon Oct 27 13:43:52 2025 daemon.notice ovpnclient1[31870]: net_route_v4_best_gw result: via 192.168.1.254 dev eth1Mon Oct 27 13:43:52 2025 daemon.notice ovpnclient1[31870]: VERIFY OK: depth=1, CN=CloudVPN Prod CAMon Oct 27 13:43:52 2025 daemon.notice ovpnclient1[31870]: NOTE: --mute triggered...Mon Oct 27 13:43:52 2025 daemon.notice ovpnclient1[31870]: 6 variation(s) on previous 5 message(s) suppressed by --muteMon Oct 27 13:43:52 2025 daemon.notice ovpnclient1[31870]: [us-dfw-dc1-g1.cloud.openvpn.net] Peer Connection Initiated with [AF_INET]66.115.177.198:443Mon Oct 27 13:43:52 2025 daemon.notice ovpnclient1[31870]: TLS: move_session: dest=TM_ACTIVE src=TM_INITIAL reinit_src=1Mon Oct 27 13:43:52 2025 daemon.notice ovpnclient1[31870]: NOTE: --mute triggered...Mon Oct 27 13:43:52 2025 daemon.notice ovpnclient1[31870]: 1 variation(s) on previous 5 message(s) suppressed by --muteMon Oct 27 13:43:52 2025 daemon.notice ovpnclient1[31870]: AUTH: Received control message: AUTH_FAILED,SUCCESS: Authentication successtandard input
on Oct 27 13:43:52 2025 daemon.notice ovpnclient1[31870]: AUTH: Received control message: AUTH_FAILED,SUCCESS: Authentication succes
sful
Mon Oct 27 13:43:52 2025 daemon.notice ovpnclient1[31870]: SIGTERM[soft,auth-failure] received, process exiting
Mon Oct 27 13:43:57 2025 daemon.notice netifd: Interface 'ovpnclient1' is now down
Mon Oct 27 13:43:57 2025 daemon.notice netifd: Interface 'ovpnclient1' is setting up now
:

bruce · October 28, 2025, 2:25am

Hello,

It seems that the authentication failed, but I can't figure out the reason.

Please export the issue syslog.
Please share your openvpn profile with me, you can mark the privacy info.

Please send them in PM.

ja16779 · October 28, 2025, 5:26pm

Thanks I change to proton vpn and now is working but have question is there any way to bypass some apps outside of vpn?

j2zero · October 28, 2025, 5:42pm

@ja16779 What VPN provider was giving you the failed login? Was it NordVPN by any chance?

Some VPN providers have an account username / password and seperate credentials for the VPN configs

ja16779 · October 28, 2025, 5:54pm

Was openvpn

j2zero · October 28, 2025, 6:21pm

That's a protocol, I assumed you were using a 3rd party OpenVPN config? hence you said you changed to proton….

ja16779 · October 28, 2025, 6:35pm

Yes openvpn did not work was to complicated to configure access server in the cloud and for that reason change to proton von but I noted can’t use split tunnel

bruce · October 30, 2025, 7:03am

Please upgrade the Flint 2 to the latest firmware first, like v4.8.3.

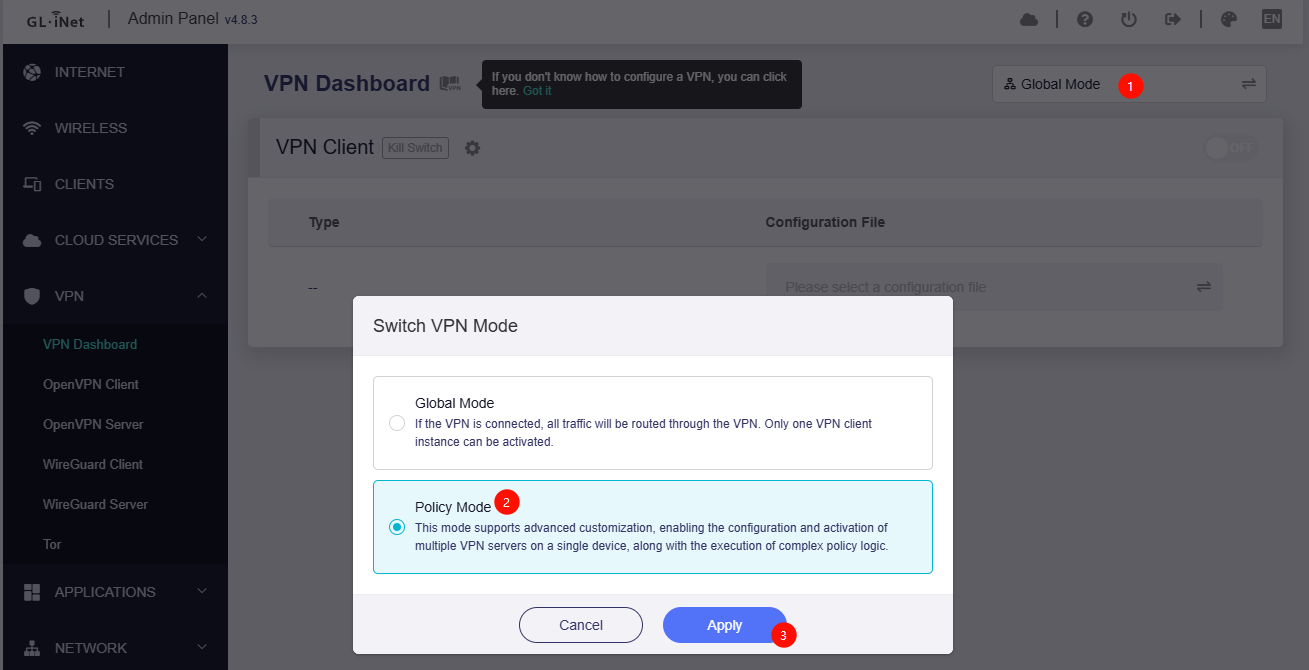

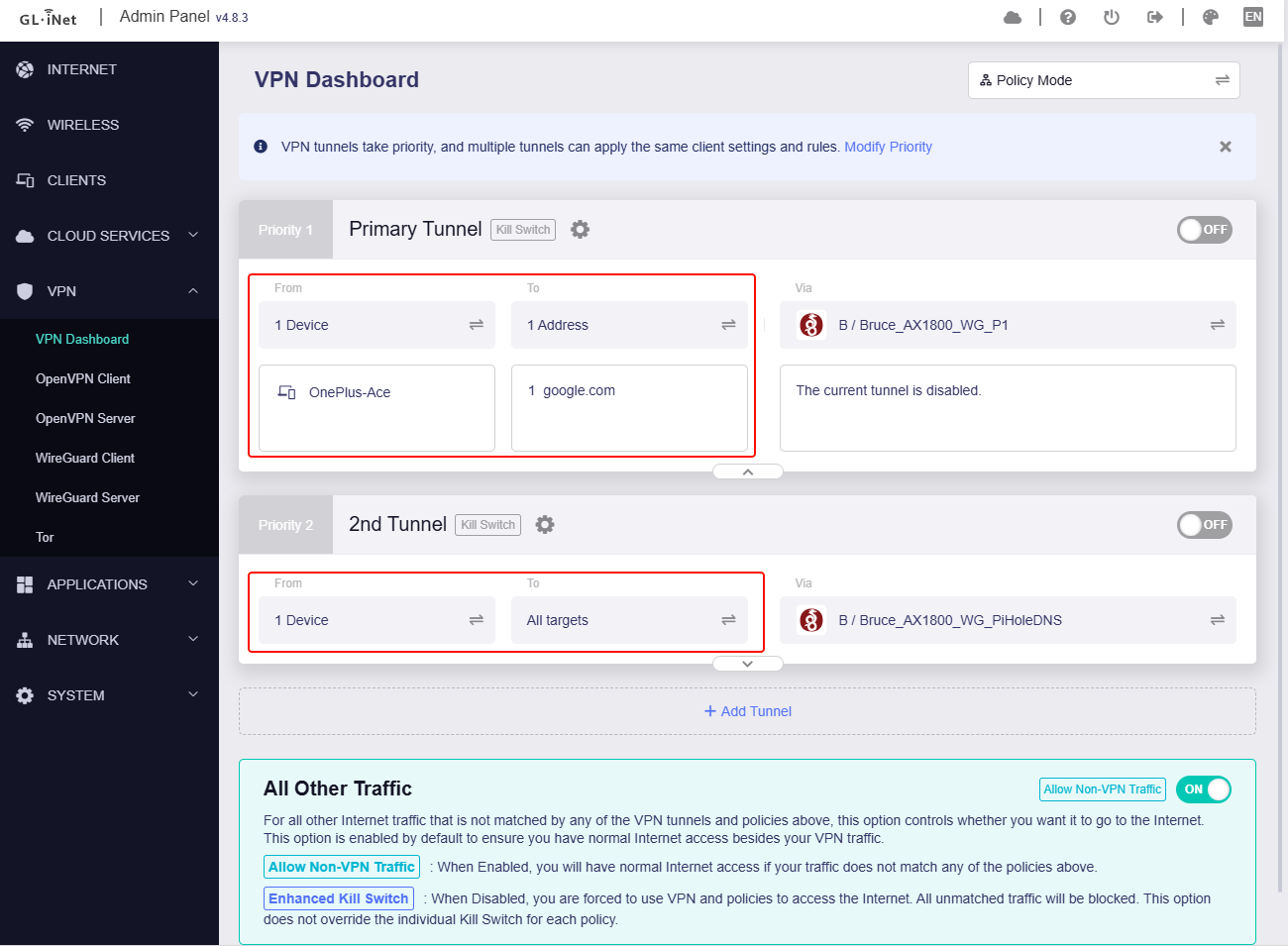

Switch the VPN mode to policy, and configure the split rules what you want.

ja16779 · October 30, 2025, 12:40pm

Thanks but i use opt 24

bruce · October 31, 2025, 8:22am

Sure, the op24 also has firmware that supports multiple VPN instances, v4.8.2-op24
