Spitz X3000 - UART Serial Repair

Having a bit of fun trying to revive my bricked Spitz :lying_face: :

The router seems to have a functioning Uboot (can get to 192.168.1.1), but flashing anything through the GUI fails.

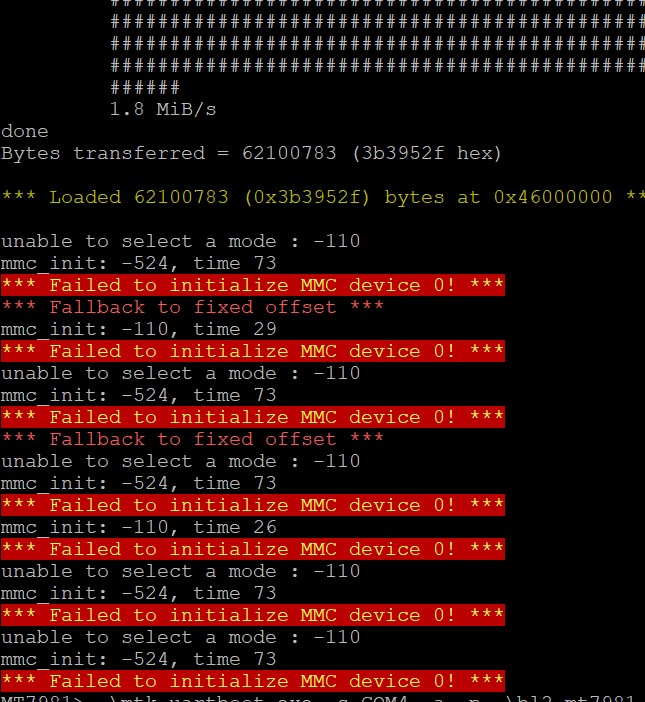

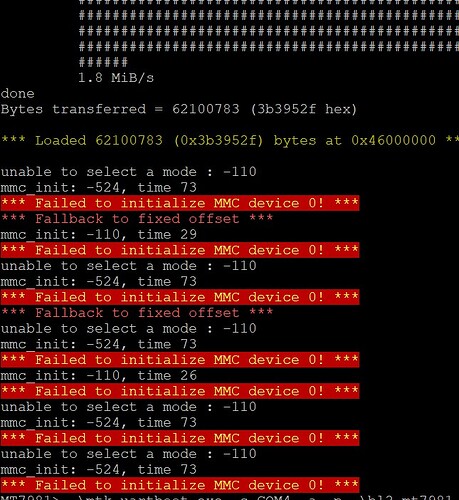

So. had a go at the UART serial route…… tried to load and flash the firmware via tftp - firmware uploaded fine but the flash failed (see screenshot).

To me it looks the like the (firmware) partition is corrupted - any suggestions? Can this partition be erased and re-written, formated…?

Hello,

It seems the partition is corrupted.

Is this router never been installed other firmware (like vanilla)?
Was it suddenly bricked?

If so, please contact our support team via email cs@gl-inet.com

Can this partition be formated / re-written?

In PM discussing.

Any update on this? My x3000 was bricked due issue with firmware shipped on the device. GUI firmware update not working.

Hello,

Please do not disassemble the casing!
Please contact our CS team at cs@gl-inet.com, they will provide some help for this, or after-sales service according to the policy if it meets the requirements.
