2025-09-20 : Number of SSID? : Fint3 / BE9300

hanasaki · September 21, 2025, 11:39pm

2025-09-20 : Number of SSID? : Fint3 / BE9300

I have several questions and will post them each individually to keep threads clean.

There are 2 SSID’s each for MLO, 6G, 5G and 2.4G

Let’s just discuss the non-MLO capabilities.

I had heard that there are upto 12 SSID’s available. Meaning 4 each for 6G, 5G and 2.4G. I see 2 for each band. Is this maybe a reference to the OpenWRT code base that I think supports 4 SSID per band? Is there a way to get to more SSID’s per band?

MLO is new to me so please forgive the basic nature of my question. The admin GUI has a main and a guest MLO setup with their own SSID id/passwd. What frequencies are being used and shared? Is just for wifi 7 bands or does MLO borrow from the 6,5,2.4 bands?

Thank you.

bruce · September 25, 2025, 11:24am

Hello,

You can SSH to your Flint3, and execute the following commands:

uci add network device # =cfg150f15
uci set network.@device[-1].type='bridge'
uci set network.@device[-1].name='br-iot'
uci set network.iot=interface
uci set network.iot.proto='static'
uci set network.iot.device='br-iot'
uci set network.iot.ipaddr='192.168.11.1'
uci set network.iot.netmask='255.255.255.0'


uci set dhcp.iot=dhcp
uci set dhcp.iot.interface='iot'
uci set dhcp.iot.start='100'
uci set dhcp.iot.limit='150'
uci set dhcp.iot.leasetime='12h'


uci add firewall zone # =cfg17dc81
uci set firewall.@zone[-1].name='iot'
uci set firewall.@zone[-1].input='REJECT'
uci set firewall.@zone[-1].output='ACCEPT'
uci set firewall.@zone[-1].forward='REJECT'
uci add_list firewall.@zone[-1].network='iot'
uci add firewall forwarding # =cfg18ad58
uci set firewall.@forwarding[-1].src='iot'
uci set firewall.@forwarding[-1].dest='wan'
uci add firewall rule # =cfg1792bd
uci set firewall.@rule[-1].name='Allow-DHCP'
uci add_list firewall.@rule[-1].proto='udp'
uci set firewall.@rule[-1].src='iot'
uci set firewall.@rule[-1].dest_port='67-68'
uci set firewall.@rule[-1].target='ACCEPT'
uci add firewall rule # =cfg1892bd
uci set firewall.@rule[-1].name='Allow-DNS'
uci set firewall.@rule[-1].src='iot'
uci set firewall.@rule[-1].dest_port='53'
uci set firewall.@rule[-1].target='ACCEPT'


uci set wireless.wifi6g1=wifi-iface
uci set wireless.wifi6g1.device='wifi2'
uci set wireless.wifi6g1.network='iot'
uci set wireless.wifi6g1.mode='ap'
uci set wireless.wifi6g1.ssid='GL-Router-IoT-6G'
uci set wireless.wifi6g1.encryption='ccmp'
uci set wireless.wifi6g1.sae_pwe='1'
uci set wireless.wifi6g1.key='goodlife'
uci set wireless.wifi6g1.wds='1'
uci set wireless.wifi6g1.isolate='0'
uci set wireless.wifi6g1.hidden='0'
uci set wireless.wifi6g1.ifname='wlan24'
uci set wireless.wifi6g1.ieee80211k='1'
uci set wireless.wifi6g1.bss_transition='1'
uci set wireless.wifi6g1.sae='1'
uci set wireless.wifi6g1.acs_6g_only_psc='1'
uci set wireless.wifi6g1.disabled='0'

uci set wireless.wifi6g2=wifi-iface
uci set wireless.wifi6g2.device='wifi2'
uci set wireless.wifi6g2.network='iot'
uci set wireless.wifi6g2.mode='ap'
uci set wireless.wifi6g2.ssid='GL Router-Custom-6G'
uci set wireless.wifi6g2.encryption='ccmp'
uci set wireless.wifi6g2.sae_pwe='1'
uci set wireless.wifi6g2.key='goodlife'
uci set wireless.wifi6g2.wds='1'
uci set wireless.wifi6g2.isolate='0'
uci set wireless.wifi6g2.hidden='0'
uci set wireless.wifi6g2.ifname='wlan25'
uci set wireless.wifi6g2.ieee80211k='1'
uci set wireless.wifi6g2.bss_transition='1'
uci set wireless.wifi6g2.sae='1'
uci set wireless.wifi6g2.acs_6g_only_psc='1'
uci set wireless.wifi6g2.disabled='0'


uci set wireless.wifi5g1=wifi-iface
uci set wireless.wifi5g1.device='wifi1'
uci set wireless.wifi5g1.network='iot'
uci set wireless.wifi5g1.mode='ap'
uci set wireless.wifi5g1.ssid='GL Router-IoT-5G'
uci set wireless.wifi5g1.encryption='psk2+ccmp'
uci set wireless.wifi5g1.key='goodlife'
uci set wireless.wifi5g1.wds='1'
uci set wireless.wifi5g1.isolate='0'
uci set wireless.wifi5g1.hidden='0'
uci set wireless.wifi5g1.ifname='wlan14'
uci set wireless.wifi5g1.ieee80211k='1'
uci set wireless.wifi5g1.bss_transition='1'
uci set wireless.wifi5g1.sae='0'
uci set wireless.wifi5g1.disabled='0'

uci set wireless.wifi5g2=wifi-iface
uci set wireless.wifi5g2.device='wifi1'
uci set wireless.wifi5g2.network='iot'
uci set wireless.wifi5g2.mode='ap'
uci set wireless.wifi5g2.ssid='GL Router-Custom-5G'
uci set wireless.wifi5g2.encryption='psk2+ccmp'
uci set wireless.wifi5g2.key='goodlife'
uci set wireless.wifi5g2.wds='1'
uci set wireless.wifi5g2.isolate='0'
uci set wireless.wifi5g2.hidden='0'
uci set wireless.wifi5g2.ifname='wlan15'
uci set wireless.wifi5g2.ieee80211k='1'
uci set wireless.wifi5g2.bss_transition='1'
uci set wireless.wifi5g2.sae='0'
uci set wireless.wifi5g2.disabled='0'



uci set wireless.wifi2g1=wifi-iface
uci set wireless.wifi2g1.device='wifi0'
uci set wireless.wifi2g1.network='iot'
uci set wireless.wifi2g1.mode='ap'
uci set wireless.wifi2g1.ssid='GL Router-IoT-2.4G'
uci set wireless.wifi2g1.encryption='psk2+ccmp'
uci set wireless.wifi2g1.key='goodlife'
uci set wireless.wifi2g1.wds='1'
uci set wireless.wifi2g1.isolate='0'
uci set wireless.wifi2g1.hidden='0'
uci set wireless.wifi2g1.ifname='wlan04'
uci set wireless.wifi2g1.ieee80211k='1'
uci set wireless.wifi2g1.bss_transition='1'
uci set wireless.wifi2g1.sae='0'
uci set wireless.wifi2g1.disabled='0'


uci set wireless.wifi2g2=wifi-iface
uci set wireless.wifi2g2.device='wifi0'
uci set wireless.wifi2g2.network='iot'
uci set wireless.wifi2g2.mode='ap'
uci set wireless.wifi2g2.ssid='GL Router-Custom-2.4G'
uci set wireless.wifi2g2.encryption='psk2+ccmp'
uci set wireless.wifi2g2.key='goodlife'
uci set wireless.wifi2g2.wds='1'
uci set wireless.wifi2g2.isolate='0'
uci set wireless.wifi2g2.hidden='0'
uci set wireless.wifi2g2.ifname='wlan05'
uci set wireless.wifi2g2.ieee80211k='1'
uci set wireless.wifi2g2.bss_transition='1'
uci set wireless.wifi2g2.sae='0'
uci set wireless.wifi2g2.disabled='0'


uci commit wireless

reboot

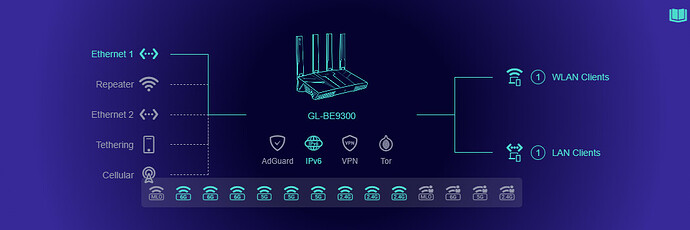

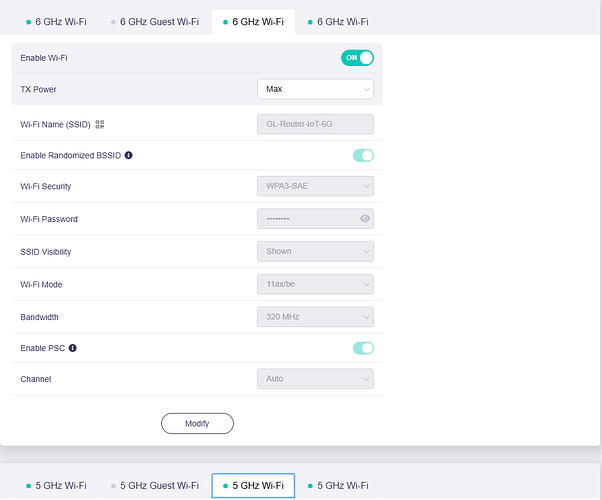

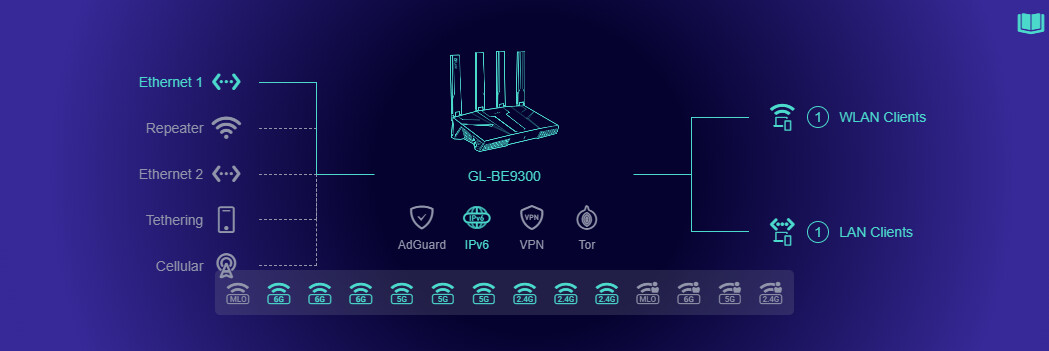

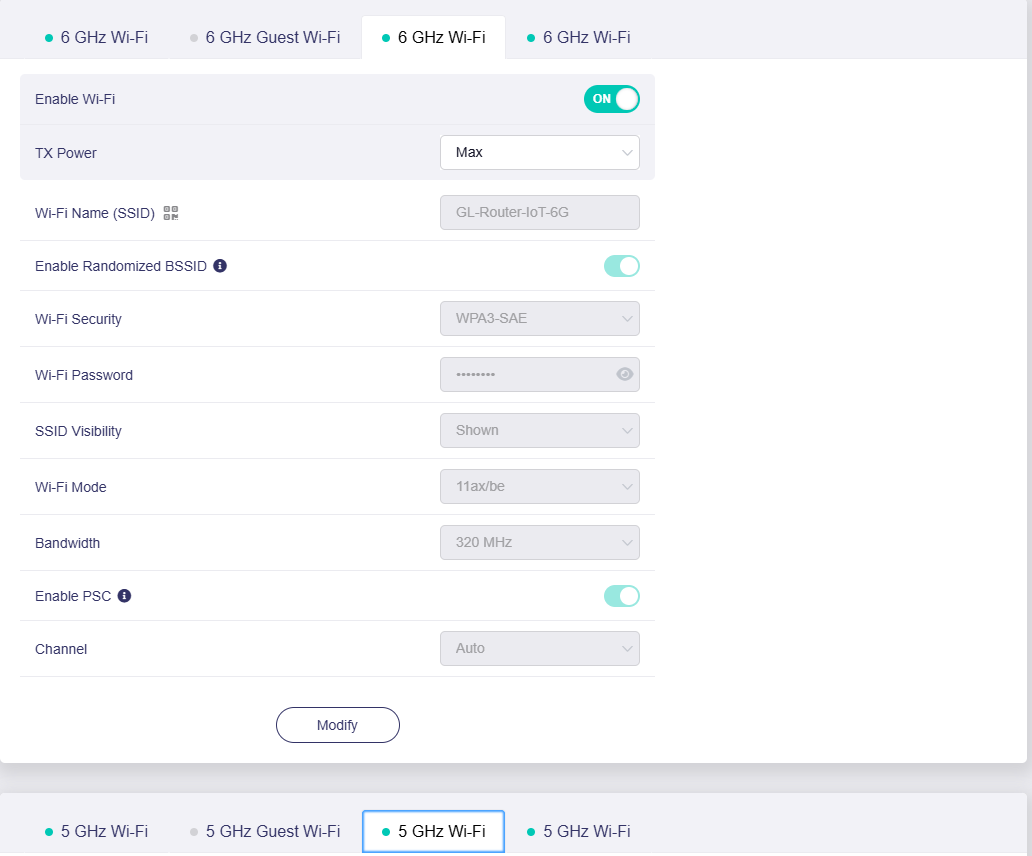

Will new add 2 x [2.4GHz Radio + 5GHz Radio + 6GHz Radio], new firewall zone is iot, subnet is 192.168.11.1, password is goodlife

SGJL · October 13, 2025, 1:19pm

Do I execute the commands line by line? or can 1 shot “copy all and paste all” into SSH?

would the interface be named iot on the GUI? (in small cap)

bruce · October 15, 2025, 2:35am

Hello,

You can copy them all and execute at once in router SSH terminal.

In the Client list of the GL GUI, the custom-added bridge and radio connected clients will not be displayed, but can be checked in Luci's DHCP lease.
