ATX Board for MSI Z370 (SM-7B45)

KVM
1

I am not sure how to connect the ATX board with my mainboard, because the description does not fit the marking on the Mainboard.

On the Main board I do have 1 24 Connector:

1 +3.3V 13 +3.3V
2 +3.3V 14 -12V
3 Ground 15 Ground
4 +5V 16 PS-ON#
5 Ground 17 Ground
6 +5V 18 Ground
7 Ground 19 Ground
8 PWR OK 20 Res
9 5VSB 21 +5V
10 +12V 22 +5V
11 +12V 23 +5V
12 +3.3V 24 Ground

GL-ATX Board:
1 PowerBTN - 5 Reset +
2 PowerBTN+ 6 Reset -
3 PLED- 7 HDLED -
4 PLED+ 8 HDLED +

Question: What goes where?

Appreciate any support..
THank you Winklef

2

The main board connecter you have described is for the power supply.

The ATX board connects to the F_Panel (front panel) connector.

Cheers.

1 Like
3

Is your issue solved?

4

Unfortunatlly the feedback is more confusing than helping for me:

  • I described 2 connectors. It is not clear which connectors the answer is referenced to.
  • I do not see any F_Panel connector at all. That is my Issue.

Is that the Connector you talking about (The only one that looks somewhat close to what I am looking at:
JUSB3-4: USB 3.1 Gen1 Connectors

If yes, which pin is going where?

Unfortunatlly I Do not see where I can send you a picture to the forum.

Your support is highly appreciated. Thank you so far.

5

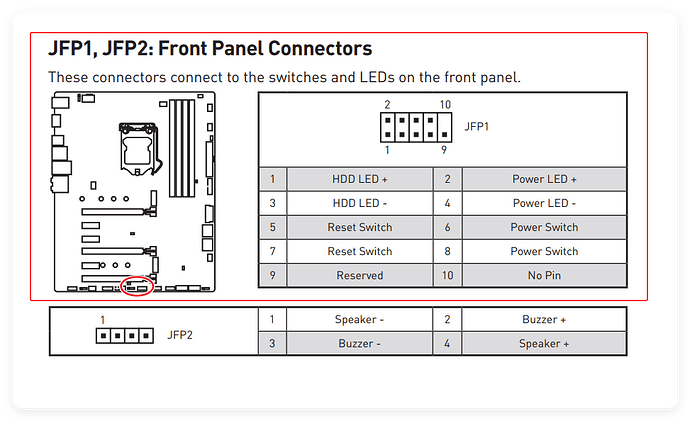

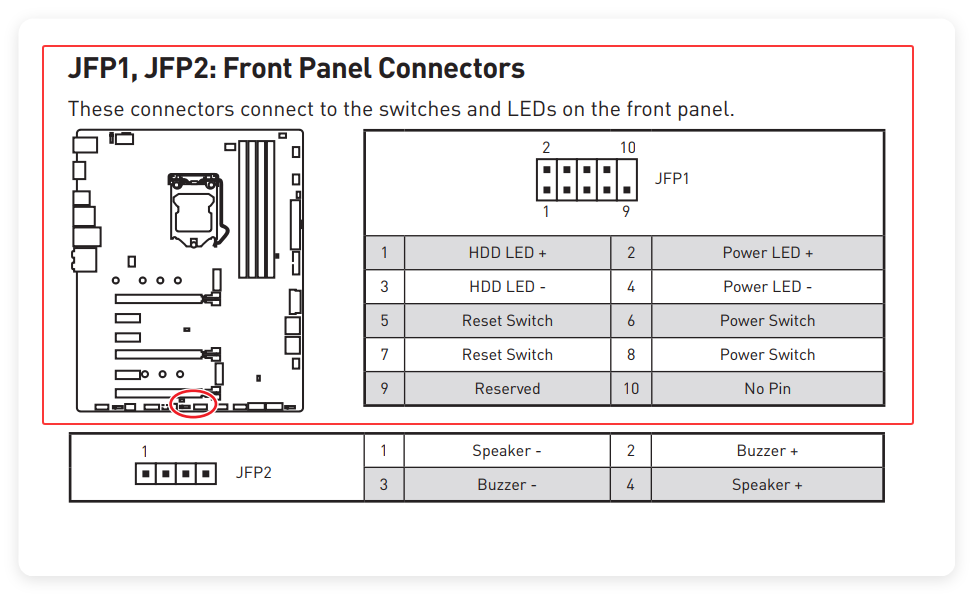

Here is the online doc.GL-ATX Board - GL.iNet KVM Docs

you can refer to the 10-1 panel connection.

QQ_1750765206248
QQ_1750765206248973×594 55.8 KB

6

Thank you. I will try.
It is page 21 on the manual.
