Connect Beryl Ax to m.2 Development with RM500U

Routers
1

Hallo, I‘m trying to use a Beryl AX with a via USB connected to a M.2 Development Board with attached RM500U.
In the UI of the Beryl I see the DEV board as Tethering available.
How do I setup things like APN, sim Pin and so on?

2

GL firmware did not support the RM5000U, it is not Qualcomm modem, so probably it cannot use QMI protocol and recognized as modem on GL router.

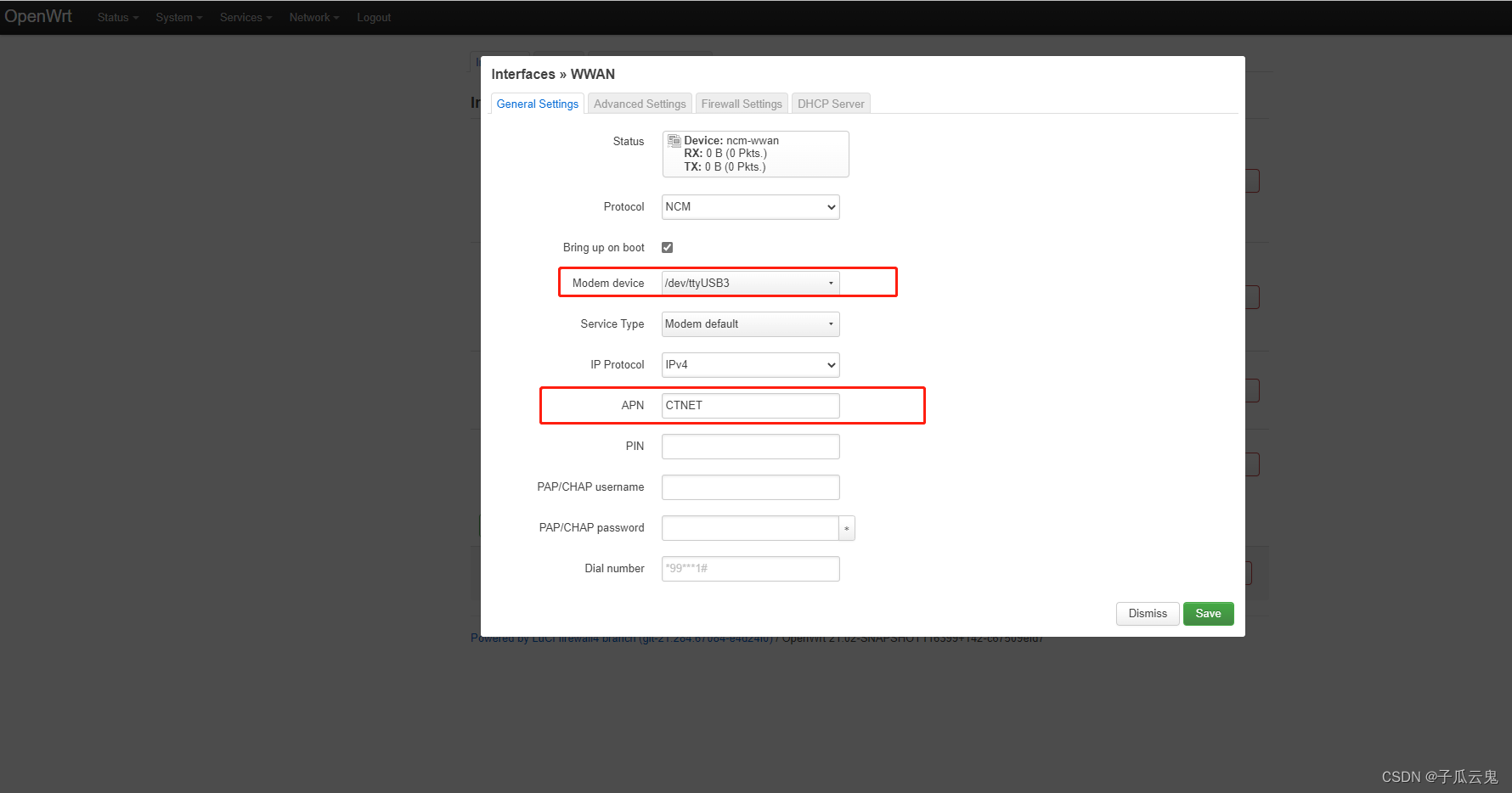

  1. Please try installing the plugin ncm, and use ncm to dial in the Luci

    image1780×934 39.5 KB

  2. If AT+QCFG="usbnet" is supported for RM500U, you can connect it the PC and change the working mode of the modem AT+QCFG="usbnet",0, and plugin the GL router to see if it can be recognized as modem, and use ppp to dial.

If above ways does not work, probably only be connected via Tethering.

5

Is there a list of offical supported 4G/5G cards?

6

it depends the cellular frequency of operators, and if the modem model is supported.
