E750 Frequent WAN Connection Drops "SIM Not Registered"

Issue: My LTE connection drops 8-10 /day
SIMs used: T-mobile, Simple Mobile
Duration Tested: about 2 weeks
Firmware tested: 3.105 & 3.201

Recently purchased E750 and my LTE connection drops several times a day
When connected - all good
But when d/c (SIM not registered), requires modem reset / reboot repeatedly

More Info:

  • Using 2.4 & 5.0 Wifi without guest
  • Mullvad VPN using Wireguard
  • No Adguard
  • Few LAN IP set manually
  • Server connected via LAN
  • 3-4 other devices via WLAN

Any help would be appreciated
Thank you in advance,

Ocean

Can you please check modem configuration and try

device you can try ttyUSB3 other than cdc-wdm0

protocol can try qcm

ttl change to 65

Check if apn is correct

I’ve applied the suggested setting on tmobile SIM (prepaid 50/unlimited)
Will test all day for any drop connection(s)
When notice of any drop, will try to get kernel log
Will report in 24 hours

Currently on:

  • 3.201 / fresh reset
  • Mullvad VPN via WG
  • 1 LAN Server (media server / torrent client)
  • 3 WLAN (phones/laptop)
  • Roaming disabled via AT Command

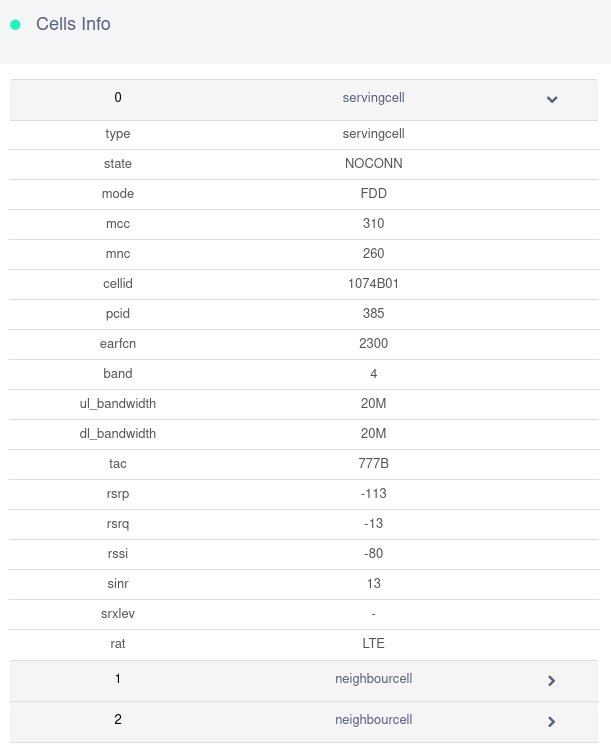

Attached: modem setting / cells info

Please note that the signal is not good. So it may be due to weak signal.

  • Total of about 5-6 disconnects

  • Tethering (easytether) works without disconnects - can rule out the signal possibility, I think

  • SO, to test a theory that the modem IMEI may not match the current t-mobile SIM,
    I repaired my IMEI to match to the phone used for tethering above
    Will test for 24 hours; will not count disconnects that are for less than 30 seconds
    (how can I restore the original IMEI? reset modem?)

  • Couldn’t get all kernel logs but two (I read; couldn’t understand much)
    Attaching the first one; will upload the second one if needed

[ 0.000000] Linux version 4.14.221 (glinet@ubuntu) (gcc version 7.5.0 (OpenWrt GCC 7.5.0 r11257-5090152ae3)) #0 Mon Feb 15 15:22:37 2021
[ 0.000000] bootconsole [early0] enabled
[ 0.000000] CPU0 revision is: 00019374 (MIPS 24Kc)
[ 0.000000] MIPS: machine is GL.iNet GL-E750 (NOR/NAND)
[ 0.000000] SoC: Qualcomm Atheros QCA9533 ver 2 rev 0
[ 0.000000] Determined physical RAM map:
[ 0.000000] memory: 08000000 @ 00000000 (usable)
[ 0.000000] Initrd not found or empty - disabling initrd
[ 0.000000] Primary instruction cache 64kB, VIPT, 4-way, linesize 32 bytes.
[ 0.000000] Primary data cache 32kB, 4-way, VIPT, cache aliases, linesize 32 bytes
[ 0.000000] Zone ranges:
[ 0.000000] Normal [mem 0x0000000000000000-0x0000000007ffffff]
[ 0.000000] Movable zone start for each node
[ 0.000000] Early memory node ranges
[ 0.000000] node 0: [mem 0x0000000000000000-0x0000000007ffffff]
[ 0.000000] Initmem setup node 0 [mem 0x0000000000000000-0x0000000007ffffff]
[ 0.000000] On node 0 totalpages: 32768
[ 0.000000] free_area_init_node: node 0, pgdat 805d3a90, node_mem_map 810072e0
[ 0.000000] Normal zone: 256 pages used for memmap
[ 0.000000] Normal zone: 0 pages reserved
[ 0.000000] Normal zone: 32768 pages, LIFO batch:7
[ 0.000000] random: get_random_bytes called from start_kernel+0x98/0x494 with crng_init=0
[ 0.000000] pcpu-alloc: s0 r0 d32768 u32768 alloc=132768
[ 0.000000] pcpu-alloc: [0] 0
[ 0.000000] Built 1 zonelists, mobility grouping on. Total pages: 32512
[ 0.000000] Kernel command line: rootfstype=squashfs,jffs2 rootfstype=squashfs,jffs2
[ 0.000000] PID hash table entries: 512 (order: -1, 2048 bytes)
[ 0.000000] Dentry cache hash table entries: 16384 (order: 4, 65536 bytes)
[ 0.000000] Inode-cache hash table entries: 8192 (order: 3, 32768 bytes)
[ 0.000000] Writing ErrCtl register=00000000
[ 0.000000] Readback ErrCtl register=00000000
[ 0.000000] Memory: 122404K/131072K available (4419K kernel code, 160K rwdata, 1008K rodata, 1252K init, 218K bss, 8668K reserved, 0K cma-reserved)
[ 0.000000] SLUB: HWalign=32, Order=0-3, MinObjects=0, CPUs=1, Nodes=1
[ 0.000000] NR_IRQS: 51
[ 0.000000] CPU clock: 650.000 MHz
[ 0.000000] clocksource: MIPS: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 5880801374 ns
[ 0.000009] sched_clock: 32 bits at 325MHz, resolution 3ns, wraps every 6607641598ns
[ 0.008261] Calibrating delay loop… 432.53 BogoMIPS (lpj=2162688)
[ 0.074874] pid_max: default: 32768 minimum: 301
[ 0.079949] Mount-cache hash table entries: 1024 (order: 0, 4096 bytes)
[ 0.086922] Mountpoint-cache hash table entries: 1024 (order: 0, 4096 bytes)
[ 0.098549] clocksource: jiffies: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 19112604462750000 ns
[ 0.108975] futex hash table entries: 256 (order: -1, 3072 bytes)
[ 0.115510] pinctrl core: initialized pinctrl subsystem
[ 0.122258] NET: Registered protocol family 16
[ 0.134157] PCI host bridge /ahb/pcie-controller@180c0000 ranges:
[ 0.140590] MEM 0x0000000010000000…0x0000000013ffffff
[ 0.146142] IO 0x0000000000000000…0x0000000000000000
[ 0.168908] PCI host bridge to bus 0000:00
[ 0.173239] pci_bus 0000:00: root bus resource [mem 0x10000000-0x13ffffff]
[ 0.180540] pci_bus 0000:00: root bus resource [io 0x0000]
[ 0.186409] pci_bus 0000:00: root bus resource [??? 0x00000000 flags 0x0]
[ 0.193567] pci_bus 0000:00: No busn resource found for root bus, will use [bus 00-ff]
[ 0.201950] pci 0000:00:00.0: [168c:0050] type 00 class 0x028000
[ 0.202009] pci 0000:00:00.0: reg 0x10: [mem 0x00000000-0x001fffff 64bit]
[ 0.202063] pci 0000:00:00.0: reg 0x30: [mem 0x00000000-0x0000ffff pref]
[ 0.202140] pci 0000:00:00.0: supports D1
[ 0.202148] pci 0000:00:00.0: PME# supported from D0 D1 D3hot
[ 0.202365] pci_bus 0000:00: busn_res: [bus 00-ff] end is updated to 00
[ 0.202393] pci 0000:00:00.0: BAR 0: assigned [mem 0x10000000-0x101fffff 64bit]
[ 0.210154] pci 0000:00:00.0: BAR 6: assigned [mem 0x10200000-0x1020ffff pref]
[ 0.220548] clocksource: Switched to clocksource MIPS
[ 0.226924] NET: Registered protocol family 2
[ 0.232462] TCP established hash table entries: 1024 (order: 0, 4096 bytes)
[ 0.239815] TCP bind hash table entries: 1024 (order: 0, 4096 bytes)
[ 0.246581] TCP: Hash tables configured (established 1024 bind 1024)
[ 0.253455] UDP hash table entries: 256 (order: 0, 4096 bytes)
[ 0.259623] UDP-Lite hash table entries: 256 (order: 0, 4096 bytes)
[ 0.266554] NET: Registered protocol family 1
[ 0.271241] PCI: CLS 0 bytes, default 32
[ 0.274227] Crashlog allocated RAM at address 0x3f00000
[ 0.281160] workingset: timestamp_bits=30 max_order=15 bucket_order=0
[ 0.293157] squashfs: version 4.0 (2009/01/31) Phillip Lougher
[ 0.299299] jffs2: version 2.2 (NAND) (SUMMARY) (LZMA) (RTIME) (CMODE_PRIORITY) (c) 2001-2006 Red Hat, Inc.
[ 0.320598] io scheduler noop registered
[ 0.324734] io scheduler deadline registered (default)
[ 0.332331] pinctrl-single 1804002c.pinmux: 576 pins at pa b804002c size 72
[ 0.340206] gpio-export gpio-export: 1 gpio(s) exported
[ 0.346507] Serial: 8250/16550 driver, 16 ports, IRQ sharing enabled
[ 0.355662] console [ttyS0] disabled
[ 0.359468] 18020000.uart: ttyS0 at MMIO 0x18020000 (irq = 9, base_baud = 1562500) is a 16550A
[ 0.368616] console [ttyS0] enabled
[ 0.452150] bootconsole [early0] disabled
[ 0.566472] m25p80 spi0.0: w25q128 (16384 Kbytes)
[ 0.622976] 5 fixed-partitions partitions found on MTD device spi0.0
[ 0.699178] Creating 5 MTD partitions on “spi0.0”:
[ 0.756670] 0x000000000000-0x000000040000 : “u-boot”
[ 0.817056] 0x000000040000-0x000000050000 : “u-boot-env”
[ 0.881656] 0x000000050000-0x000000060000 : “art”
[ 0.938879] 0x000000060000-0x000000260000 : “kernel”
[ 0.999275] 0x000000260000-0x000000e20000 : “nor_reserved”
[ 1.069503] spi-nand: Giga SPI NAND was found.
[ 1.122869] spi-nand: 128 MiB, block size: 128 KiB, page size: 2048, OOB size: 128
[ 1.213787] 1 fixed-partitions partitions found on MTD device spi0.1
[ 1.290057] Creating 1 MTD partitions on “spi0.1”:
[ 1.347536] 0x000000000000-0x000008000000 : “ubi”
[ 1.832728] found bad block 7fe0000
[ 1.875288] libphy: Fixed MDIO Bus: probed
[ 2.260948] libphy: ag71xx_mdio: probed
[ 2.591019] mdio-bus.0:1f: Found an AR934X built-in switch
[ 2.657042] libphy: ar7240sw_mdio: probed
[ 3.092779] ag71xx 19000000.eth: connected to PHY at mdio-bus.0:1f:04 [uid=004dd042, driver=Generic PHY]
[ 3.207262] eth0: Atheros AG71xx at 0xb9000000, irq 4, mode: mii
[ 3.281025] NET: Registered protocol family 10
[ 3.338147] Segment Routing with IPv6
[ 3.382220] NET: Registered protocol family 17
[ 3.435550] bridge: filtering via arp/ip/ip6tables is no longer available by default. Update your scripts to load br_netfilter if you need this.
[ 3.591042] 8021q: 802.1Q VLAN Support v1.8
[ 3.647183] UBI: auto-attach mtd5
[ 3.686972] ubi0: attaching mtd5
[ 4.160550] random: fast init done
[ 8.046165] ubi0: scanning is finished
[ 8.139340] ubi0: attached mtd5 (name “ubi”, size 128 MiB)
[ 8.205154] ubi0: PEB size: 131072 bytes (128 KiB), LEB size: 126976 bytes
[ 8.287635] ubi0: min./max. I/O unit sizes: 2048/2048, sub-page size 2048
[ 8.369100] ubi0: VID header offset: 2048 (aligned 2048), data offset: 4096
[ 8.452657] ubi0: good PEBs: 1023, bad PEBs: 1, corrupted PEBs: 0
[ 8.525788] ubi0: user volume: 2, internal volumes: 1, max. volumes count: 128
[ 8.612481] ubi0: max/mean erase counter: 11/6, WL threshold: 4096, image sequence number: 1325939097
[ 8.723162] ubi0: available PEBs: 0, total reserved PEBs: 1023, PEBs reserved for bad PEB handling: 19
[ 8.834989] ubi0: background thread “ubi_bgt0d” started, PID 317
[ 8.910408] block ubiblock0_0: created from ubi0:0(rootfs)
[ 8.976294] ubiblock: device ubiblock0_0 (rootfs) set to be root filesystem
[ 9.078761] VFS: Mounted root (squashfs filesystem) readonly on device 254:0.
[ 9.172108] Freeing unused kernel memory: 1252K
[ 9.226410] This architecture does not have kernel memory protection.
[ 10.259653] init: Console is alive
[ 10.300835] init: - watchdog -
[ 13.719550] kmodloader: loading kernel modules from /etc/modules-boot.d/

[ 14.015709] usbcore: registered new interface driver usbfs
[ 14.081686] usbcore: registered new interface driver hub
[ 14.145519] usbcore: registered new device driver usb
[ 14.216767] exFAT: Version 1.2.9
[ 14.294919] ehci_hcd: USB 2.0 ‘Enhanced’ Host Controller (EHCI) Driver
[ 14.383238] SCSI subsystem initialized
[ 14.434157] ehci-platform: EHCI generic platform driver
[ 14.497158] ehci-platform 1b000000.usb: EHCI Host Controller
[ 14.565134] ehci-platform 1b000000.usb: new USB bus registered, assigned bus number 1
[ 14.659191] ehci-platform 1b000000.usb: irq 3, io mem 0x1b000000
[ 14.760571] ehci-platform 1b000000.usb: USB 2.0 started, EHCI 1.00
[ 14.835631] hub 1-0:1.0: USB hub found
[ 14.881016] hub 1-0:1.0: 1 port detected
[ 14.932395] ohci_hcd: USB 1.1 ‘Open’ Host Controller (OHCI) Driver
[ 15.008225] ohci-platform: OHCI generic platform driver
[ 15.074087] uhci_hcd: USB Universal Host Controller Interface driver
[ 15.449248] usbcore: registered new interface driver usb-storage
[ 15.524141] usbcore: registered new interface driver uas
[ 15.588745] kmodloader: done loading kernel modules from /etc/modules-boot.d/*
[ 15.675593] usb 1-1: new high-speed USB device number 2 using ehci-platform
[ 15.769641] init: - preinit -
[ 15.965104] hub 1-1:1.0: USB hub found
[ 16.127499] hub 1-1:1.0: 4 ports detected
[ 16.621601] usb 1-1.1: new high-speed USB device number 3 using ehci-platform
[ 16.948170] random: procd: uninitialized urandom read (4 bytes read)
[ 17.025047] usb-storage 1-1.1:1.0: USB Mass Storage device detected
[ 17.182134] scsi host0: usb-storage 1-1.1:1.0
[ 17.451673] usb 1-1.2: new high-speed USB device number 4 using ehci-platform
[ 17.667875] random: jshn: uninitialized urandom read (4 bytes read)
[ 17.970466] random: jshn: uninitialized urandom read (4 bytes read)
[ 18.079111] random: jshn: uninitialized urandom read (4 bytes read)
[ 18.204856] random: jshn: uninitialized urandom read (4 bytes read)
[ 18.290885] scsi 0:0:0:0: Direct-Access Generic STORAGE DEVICE 0233 PQ: 0 ANSI: 0
[ 19.176490] IPv6: ADDRCONF(NETDEV_UP): eth0: link is not ready
[ 19.412402] sd 0:0:0:0: [sda] Attached SCSI removable disk
[ 21.313614] eth0: link up (100Mbps/Full duplex)
[ 21.369862] IPv6: ADDRCONF(NETDEV_CHANGE): eth0: link becomes ready
[ 22.625911] mount_root: loading kmods from internal overlay
[ 22.774413] kmodloader: loading kernel modules from //etc/modules-boot.d/*
[ 22.862102] kmodloader: done loading kernel modules from //etc/modules-boot.d/*
[ 25.791766] UBIFS (ubi0:1): background thread “ubifs_bgt0_1” started, PID 496
[ 26.120907] UBIFS (ubi0:1): recovery needed
[ 26.719329] UBIFS (ubi0:1): recovery completed
[ 26.772746] UBIFS (ubi0:1): UBIFS: mounted UBI device 0, volume 1, name “rootfs_data”
[ 26.866726] UBIFS (ubi0:1): LEB size: 126976 bytes (124 KiB), min./max. I/O unit sizes: 2048 bytes/2048 bytes
[ 26.985745] UBIFS (ubi0:1): FS size: 112246784 bytes (107 MiB, 884 LEBs), journal size 5586944 bytes (5 MiB, 44 LEBs)
[ 27.113115] UBIFS (ubi0:1): reserved for root: 4952683 bytes (4836 KiB)
[ 27.192500] UBIFS (ubi0:1): media format: w4/r0 (latest is w5/r0), UUID BBB48325-F000-4A4C-830E-A7BF93B9E3B9, small LPT model
[ 27.342951] block: attempting to load /tmp/ubifs_cfg/upper/etc/config/fstab
[ 27.465360] block: extroot: not configured
[ 27.514815] UBIFS (ubi0:1): un-mount UBI device 0
[ 27.571382] UBIFS (ubi0:1): background thread “ubifs_bgt0_1” stops
[ 27.671527] UBIFS (ubi0:1): background thread “ubifs_bgt0_1” started, PID 499
[ 28.296675] UBIFS (ubi0:1): UBIFS: mounted UBI device 0, volume 1, name “rootfs_data”
[ 28.390659] UBIFS (ubi0:1): LEB size: 126976 bytes (124 KiB), min./max. I/O unit sizes: 2048 bytes/2048 bytes
[ 28.509648] UBIFS (ubi0:1): FS size: 112246784 bytes (107 MiB, 884 LEBs), journal size 5586944 bytes (5 MiB, 44 LEBs)
[ 28.637017] UBIFS (ubi0:1): reserved for root: 4952683 bytes (4836 KiB)
[ 28.716427] UBIFS (ubi0:1): media format: w4/r0 (latest is w5/r0), UUID BBB48325-F000-4A4C-830E-A7BF93B9E3B9, small LPT model
[ 28.880271] mount_root: loading kmods from internal overlay
[ 29.022427] kmodloader: loading kernel modules from /tmp/overlay/upper/etc/modules-boot.d/*
[ 29.133449] kmodloader: done loading kernel modules from /tmp/overlay/upper/etc/modules-boot.d/*
[ 31.133743] block: attempting to load /tmp/ubifs_cfg/upper/etc/config/fstab
[ 31.242312] block: extroot: not configured
[ 31.302527] mount_root: switching to ubifs overlay
[ 31.484829] urandom-seed: Seeding with /etc/urandom.seed
[ 31.709263] eth0: link down
[ 31.755536] procd: - early -
[ 31.790267] procd: - watchdog -
[ 32.542417] urandom_read: 3 callbacks suppressed
[ 32.542426] random: jshn: uninitialized urandom read (4 bytes read)
[ 32.673210] procd: - watchdog -
[ 32.782514] procd: - ubus -
[ 33.094995] random: ubusd: uninitialized urandom read (4 bytes read)
[ 33.279855] procd: - init -
[ 37.048130] kmodloader: loading kernel modules from /etc/modules.d/*
[ 37.327377] ntfs: driver 2.1.32 [Flags: R/O MODULE].
[ 37.407305] urngd: v1.0.2 started.
[ 37.545582] tun: Universal TUN/TAP device driver, 1.6
[ 37.770764] GobiNet: 2018-12-21/SWI_2.55
[ 37.819441] usbcore: registered new interface driver GobiNet
[ 38.078060] random: crng init done
[ 38.164566] usbcore: registered new interface driver usbserial
[ 38.234732] usbcore: registered new interface driver usbserial_generic
[ 38.313125] usbserial: USB Serial support registered for generic
[ 38.851977] usbcore: registered new interface driver GobiSerial
[ 38.923111] usbserial: USB Serial support registered for GobiSerial
[ 38.998323] GobiSerial: 2015-08-27/SWI_2.25:GobiSerial
[ 39.633864] ip6_tables: (C) 2000-2006 Netfilter Core Team
[ 39.866015] nf_conntrack version 0.5.0 (2048 buckets, 8192 max)
[ 40.358842] Netfilter messages via NETLINK v0.30.
[ 40.543670] ip_set: protocol 6
[ 40.786014] Mirror/redirect action on
[ 40.943912] u32 classifier
[ 40.976350] input device check on
[ 41.020220] Actions configured
[ 41.361914] GACT probability on
[ 41.457459] Simple TC action Loaded
[ 41.552150] fuse init (API version 7.26)
[ 41.733465] usbcore: registered new interface driver cdc_acm
[ 41.801403] cdc_acm: USB Abstract Control Model driver for USB modems and ISDN adapters
[ 41.901122] usbcore: registered new interface driver cdc_ether
[ 41.976281] usbcore: registered new interface driver cdc_ncm
[ 42.047282] usbcore: registered new interface driver cdc_wdm
[ 42.118245] Loading modules backported from Linux version v4.19.161-0-gdaefdc9eb24b
[ 42.210259] Backport generated by backports.git v4.19.161-1-0-g4bb568fe
[ 42.293077] usbcore: registered new interface driver cp210x
[ 42.360038] usbserial: USB Serial support registered for cp210x
[ 42.448304] Ebtables v2.0 registered
[ 42.493290] usbcore: registered new interface driver huawei_cdc_ncm
[ 42.572982] ip_tables: (C) 2000-2006 Netfilter Core Team
[ 42.639652] usbcore: registered new interface driver ipheth
[ 42.808471] ctnetlink v0.93: registering with nfnetlink.
[ 43.003950] qmi_wwan 1-1.2:1.4: cdc-wdm0: USB WDM device
[ 43.067769] qmi_wwan 1-1.2:1.4: QuectelEC25&EC21&EG91&EG95&EG06&EP06&EM06&BG96&AG35 work on RawIP mode
[ 43.181799] qmi_wwan 1-1.2:1.4 wwan0: register ‘qmi_wwan’ at usb-1b000000.usb-1.2, WWAN/QMI device, 26:b4:a2:30:99:65
[ 43.309494] usbcore: registered new interface driver qmi_wwan
[ 43.384041] usbcore: registered new interface driver rndis_host
[ 43.458936] usbcore: registered new interface driver sierra
[ 43.525930] usbserial: USB Serial support registered for Sierra USB modem
[ 43.612514] usbcore: registered new interface driver sierra_net
[ 43.700975] wireguard: WireGuard 1.0.20200611 loaded. See www.wireguard.com for information.
[ 43.802287] wireguard: Copyright (C) 2015-2019 Jason A. Donenfeld Jason@zx2c4.com. All Rights Reserved.
[ 43.974144] xt_time: kernel timezone is -0000
[ 44.243792] usbcore: registered new interface driver option
[ 44.310831] usbserial: USB Serial support registered for GSM modem (1-port)
[ 44.394907] option 1-1.2:1.0: GSM modem (1-port) converter detected
[ 44.470388] usb 1-1.2: GSM modem (1-port) converter now attached to ttyUSB0
[ 44.554204] option 1-1.2:1.1: GSM modem (1-port) converter detected
[ 44.629760] usb 1-1.2: GSM modem (1-port) converter now attached to ttyUSB1
[ 44.713612] option 1-1.2:1.2: GSM modem (1-port) converter detected
[ 44.789109] usb 1-1.2: GSM modem (1-port) converter now attached to ttyUSB2
[ 44.872907] option 1-1.2:1.3: GSM modem (1-port) converter detected
[ 44.948389] usb 1-1.2: GSM modem (1-port) converter now attached to ttyUSB3
[ 45.293261] PPP generic driver version 2.4.2
[ 45.347600] PPP MPPE Compression module registered
[ 45.407619] NET: Registered protocol family 24
[ 45.522044] PCI: Enabling device 0000:00:00.0 (0000 → 0002)
[ 45.592241] ath10k_pci 0000:00:00.0: pci irq legacy oper_irq_mode 1 irq_mode 0 reset_mode 0
[ 45.970873] ath10k_pci 0000:00:00.0: Direct firmware load for ath10k/pre-cal-pci-0000:00:00.0.bin failed with error -2
[ 46.099292] ath10k_pci 0000:00:00.0: Falling back to user helper
[ 51.260643] firmware ath10k!pre-cal-pci-0000:00:00.0.bin: firmware_loading_store: map pages failed
[ 51.385740] ath10k_pci 0000:00:00.0: Direct firmware load for ath10k/QCA9887/hw1.0/firmware-6.bin failed with error -2
[ 51.514256] ath10k_pci 0000:00:00.0: Falling back to user helper
[ 51.796251] firmware ath10k!QCA9887!hw1.0!firmware-6.bin: firmware_loading_store: map pages failed
[ 52.144172] ath10k_pci 0000:00:00.0: qca9887 hw1.0 target 0x4100016d chip_id 0x004000ff sub 0000:0000
[ 52.254925] ath10k_pci 0000:00:00.0: kconfig debug 0 debugfs 1 tracing 0 dfs 1 testmode 1
[ 52.358628] ath10k_pci 0000:00:00.0: firmware ver 10.2.4-1.0-00047 api 5 features no-p2p,ignore-otp,skip-clock-init,mfp,allows-mesh-bcast crc32 62f7565f
[ 52.555358] ath10k_pci 0000:00:00.0: Direct firmware load for ath10k/QCA9887/hw1.0/board-2.bin failed with error -2
[ 52.680639] ath10k_pci 0000:00:00.0: Falling back to user helper
[ 52.861014] firmware ath10k!QCA9887!hw1.0!board-2.bin: firmware_loading_store: map pages failed
[ 52.966200] ath10k_pci 0000:00:00.0: board_file api 1 bmi_id N/A crc32 546cca0d
[ 54.153894] ath10k_pci 0000:00:00.0: htt-ver 2.1 wmi-op 5 htt-op 2 cal file max-sta 128 raw 0 hwcrypto 1
[ 54.402113] ath: EEPROM regdomain: 0x0
[ 54.402120] ath: EEPROM indicates default country code should be used
[ 54.402124] ath: doing EEPROM country->regdmn map search
[ 54.402138] ath: country maps to regdmn code: 0x3a
[ 54.402143] ath: Country alpha2 being used: US
[ 54.402146] ath: Regpair used: 0x3a
[ 54.533692] usbcore: registered new interface driver rt2800usb
[ 54.731041] ath: EEPROM regdomain: 0x0
[ 54.731051] ath: EEPROM indicates default country code should be used
[ 54.731055] ath: doing EEPROM country->regdmn map search
[ 54.731070] ath: country maps to regdmn code: 0x3a
[ 54.731075] ath: Country alpha2 being used: US
[ 54.731079] ath: Regpair used: 0x3a
[ 54.744367] ieee80211 phy1: Selected rate control algorithm ‘minstrel_ht’
[ 54.746249] ieee80211 phy1: Atheros AR9531 Rev:2 mem=0xb8100000, irq=13
[ 54.931168] kmodloader: done loading kernel modules from /etc/modules.d/*
[ 77.724890] IPv6: ADDRCONF(NETDEV_UP): lo: link is not ready
[ 79.338726] IPv6: ADDRCONF(NETDEV_UP): eth0: link is not ready
[ 79.360923] br-lan: port 1(eth0) entered blocking state
[ 79.360936] br-lan: port 1(eth0) entered disabled state
[ 79.361253] device eth0 entered promiscuous mode
[ 81.393711] eth0: link up (100Mbps/Full duplex)
[ 81.393759] br-lan: port 1(eth0) entered blocking state
[ 81.393767] br-lan: port 1(eth0) entered forwarding state
[ 85.653880] IPv6: ADDRCONF(NETDEV_UP): wwan0: link is not ready
[ 93.881015] br-lan: port 2(wlan1) entered blocking state
[ 93.881028] br-lan: port 2(wlan1) entered disabled state
[ 93.881371] device wlan1 entered promiscuous mode
[ 97.015687] ath10k_pci 0000:00:00.0: pdev param 0 not supported by firmware
[ 97.059227] br-lan: port 3(wlan0) entered blocking state
[ 97.059241] br-lan: port 3(wlan0) entered disabled state
[ 97.059593] device wlan0 entered promiscuous mode
[ 98.893751] br-lan: port 2(wlan1) entered blocking state
[ 98.893766] br-lan: port 2(wlan1) entered forwarding state
[ 99.650852] br-lan: port 3(wlan0) entered blocking state
[ 99.650867] br-lan: port 3(wlan0) entered forwarding state
[ 4634.985834] eth0: link down
[ 4634.986664] br-lan: port 1(eth0) entered disabled state
[ 4637.064490] eth0: link up (100Mbps/Full duplex)
[ 4637.064569] br-lan: port 1(eth0) entered blocking state
[ 4637.064579] br-lan: port 1(eth0) entered forwarding state

I hope that you have recorded the old IMEI.

I have no idea how to restore the IMEI without setting it back.

  • Welp, there goes my original IMEI :joy: (Will there be any negative consequences as to use my phone’s IMEI in future?)

  • After testing for few days, still the same, about 6-8 disconnects a day - I’m going to put this issue for a side now and work on the alternative.

  • Which brings me to one of your previous posts:
    AR750S - Autoconnect - Easytether

  • I will post on the thread above now
