When setting up a VPN client on a Flint 2 (GL-MT6000), all LAN ports are routed through the VPN client.
Is it possible to exclude one LAN port from being routed through the VPN client, so that this port bypasses the VPN client and connects directly to the ISP?
Hello,
There is a workaround way to achieve this requirement which let a specified physical LAN port directly go to WAN/ISP.
Notice, the specified LAN port (the following add a new bridge "bypassVPN") cannot be the same subnet as the "br-lan".
As an example, the following commands uci is changed the LAN5 (the last one physical LAN):
Please upgrade to the v4.8.0 beta firmware for Flint2.
SSH to the router:
# /etc/config/network
uci del network.cfg030f15.ports
uci add_list network.cfg030f15.ports='lan1'
uci add_list network.cfg030f15.ports='lan2'
uci add_list network.cfg030f15.ports='lan3'
uci add_list network.cfg030f15.ports='lan4'
uci add network device # =cfg1b0f15
uci set network.@device[-1].type='bridge'
uci set network.@device[-1].name='br-passbyVPN'
uci add_list network.@device[-1].ports='lan5'
uci set network.passbyVPN=interface
uci set network.passbyVPN.proto='static'
uci set network.passbyVPN.device='br-passbyVPN'
uci set network.passbyVPN.ipaddr='192.168.15.1'
uci set network.passbyVPN.netmask='255.255.255.0'
# /etc/config/dhcp
uci set dhcp.passbyVPN=dhcp
uci set dhcp.passbyVPN.interface='passbyVPN'
uci set dhcp.passbyVPN.start='100'
uci set dhcp.passbyVPN.limit='150'
uci set dhcp.passbyVPN.leasetime='12h'
uci add_list dhcp.passbyVPN.ra_flags='none'
uci del dhcp.passbyVPN.ra_flags
uci add_list dhcp.passbyVPN.ra_flags='none'
# /etc/config/firewall
uci add firewall zone # =cfg23dc81
uci set firewall.@zone[-1].name='passbyVPN'
uci set firewall.@zone[-1].input='REJECT'
uci set firewall.@zone[-1].output='ACCEPT'
uci set firewall.@zone[-1].forward='REJECT'
uci add_list firewall.@zone[-1].network='passbyVPN'
uci set firewall.cfg01e63d.synflood_protect='1'
uci add firewall forwarding # =cfg25ad58
uci set firewall.@forwarding[-1].src='passbyVPN'
uci set firewall.@forwarding[-1].dest='wan'
uci add firewall rule # =cfg2592bd
uci set firewall.@rule[-1].name='Allow-DNS'
uci set firewall.@rule[-1].src='passbyVPN'
uci set firewall.@rule[-1].dest_port='53'
uci set firewall.@rule[-1].target='ACCEPT'
uci add firewall rule # =cfg2692bd
uci set firewall.@rule[-1].name='Allow-DHCP'
uci add_list firewall.@rule[-1].proto='udp'
uci set firewall.@rule[-1].src='passbyVPN'
uci set firewall.@rule[-1].dest_port='67-78'
uci set firewall.@rule[-1].target='ACCEPT'
uci commit

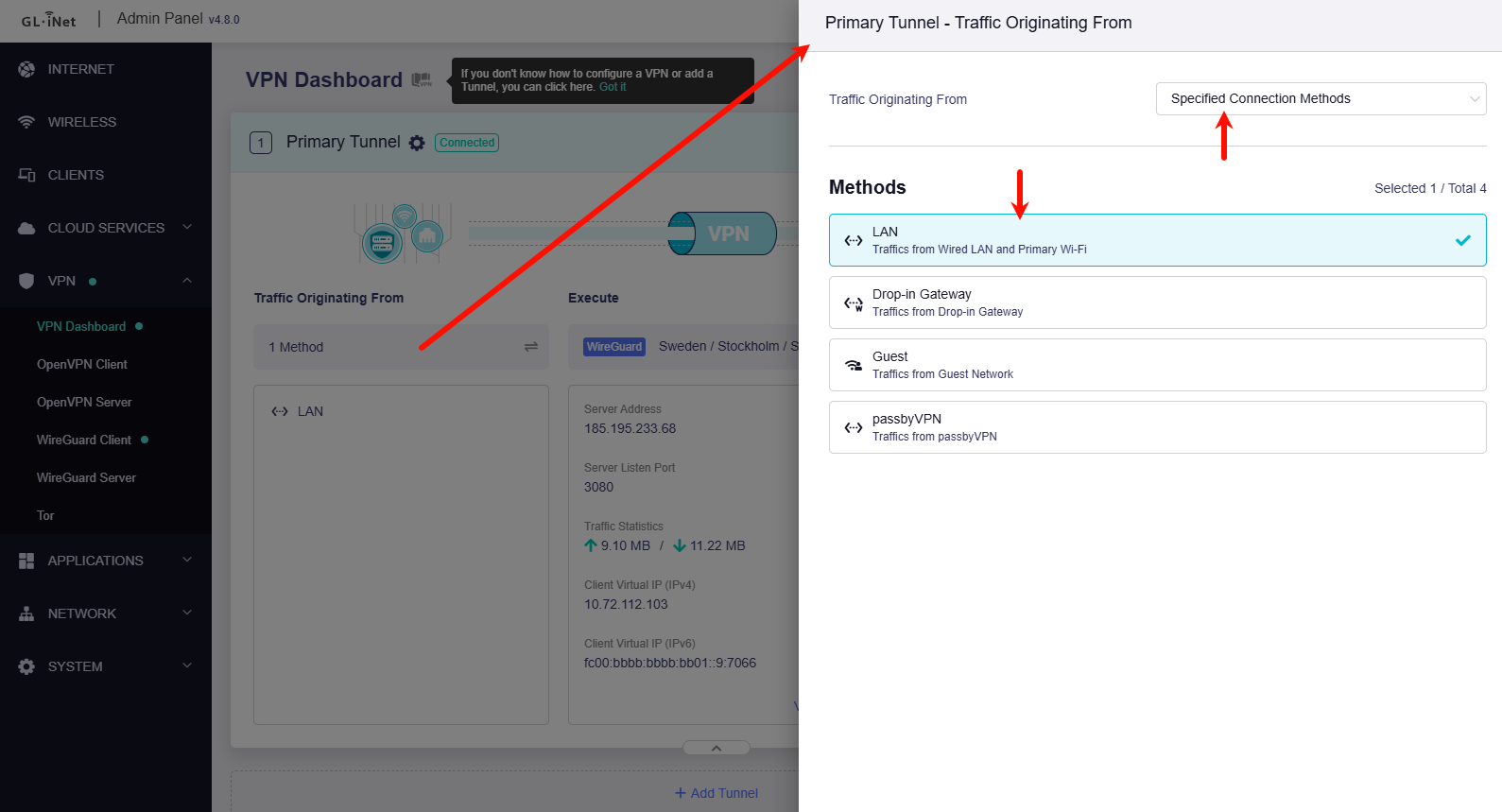

Now the new bridge "passbyVPN" is added, and the subnet is 192.168.15.0/24.
/etc/init.d/firewall restart
/etc/init.d/network restart
# or restart the router in Web UI.
Thank you very much for your reply
Is it possible to configure a Wi-Fi access point that routes traffic through 'passbyVPN', enabling wireless clients to access the WAN/ISP?
uci del wireless.mt798612.disabled
uci set wireless.wifinet4=wifi-iface
uci set wireless.wifinet4.device='mt798612'
uci set wireless.wifinet4.mode='ap'
uci set wireless.wifinet4.ssid='GL Router-passbyVPN-5G'
uci set wireless.wifinet4.encryption='psk2'
uci set wireless.wifinet4.key='goodlife'
uci set wireless.wifinet4.network='passbyvpn passbyVPN'
uci set wireless.wifinet4.ifname='rax2'
uci del wireless.mt798611.disabled
uci set wireless.wifinet5=wifi-iface
uci set wireless.wifinet5.device='mt798611'
uci set wireless.wifinet5.mode='ap'
uci set wireless.wifinet5.ssid='GL Router-passbyVPN-2.4G'
uci set wireless.wifinet5.encryption='psk2'
uci set wireless.wifinet5.key='goodlife'
uci set wireless.wifinet5.network='passbyvpn passbyVPN'
uci set wireless.wifinet5.ifname='ra2'
SSID: GL Router-passbyVPN-5G/2.4G
Passwd: goodlife
Thank you
