Flint 2 (GL-MT6000) VLAN Setup

[DaWeav]

This is the way I setup my VLAN’s on the version 4.7x firmware.

Issues with VLAN's and Guest Wifi

Also, be mindful of this apparent bug in the LUCI GUI when applying VLAN settings on the br-lan bridge device. Whenever I modify any settings on the br-lan bridge device, I have to ensure that the ‘Enable VLAN Filtering’ checkbox is not checked or it kills the br-lan network.

New firmware version 4.7 being released for beta testing

@bruce I have 4.7 on the Flint 2 and the ‘Enable VLAN Filtering’ checkbox is confusing to me. I think this is related to what @miraben was discussing earlier in this thread about VLAN filtering. Whenever I edit the ‘br-lan’ interface that has some VLANs configured, it automatically puts a checkmark in the ‘Enable VLAN Filtering’ box for the bridge device. When I apply the changes with the checkbox checked, it kills the br-lan network and I have to wait 90 seconds for the changes to be reverted.…

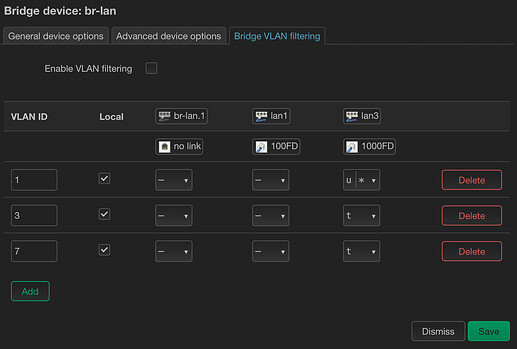

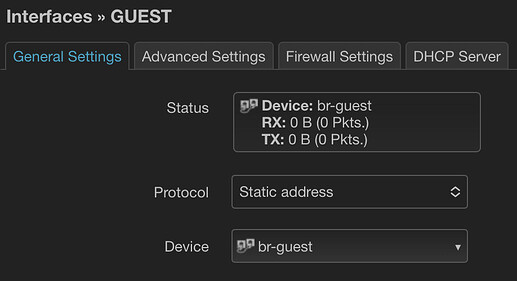

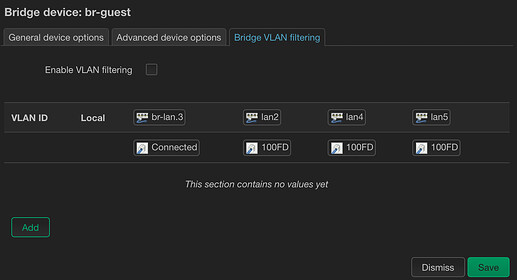

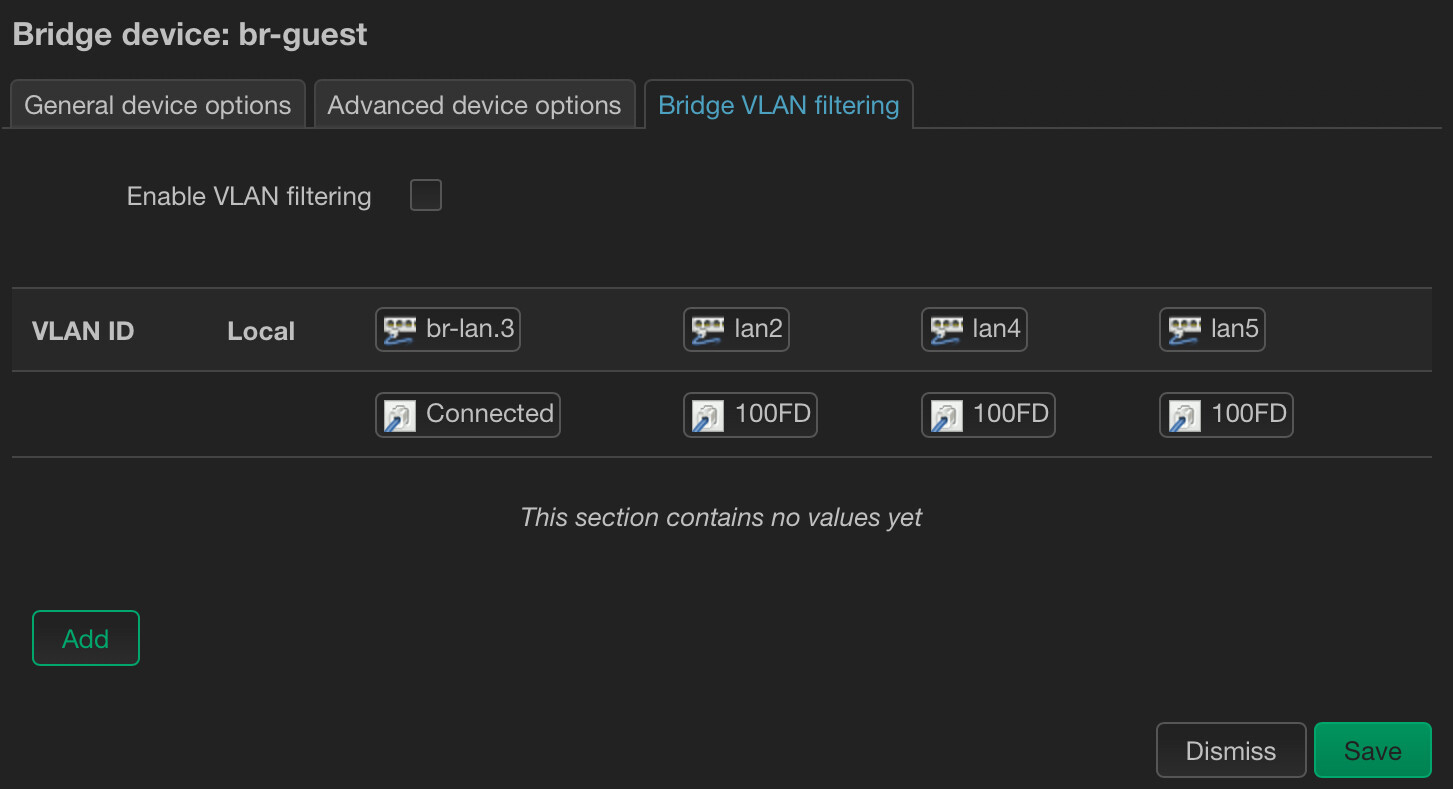

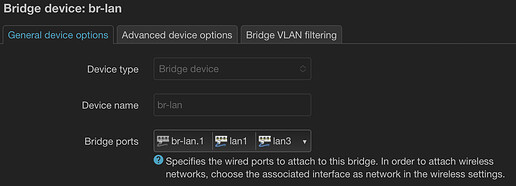

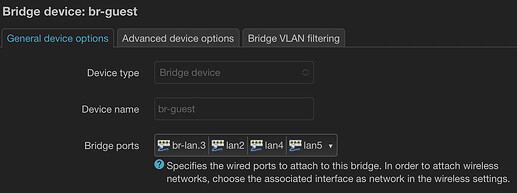

I’ve changed a few things since I first configured it so these screenshots don’t exactly match what I wrote up.
