Flint 2 Ultimate WireGuard + Surfshark DNS + Firewall Config

Routers VPN, DNS, Leaks
1

IMG_2289
IMG_22891320×319 38.9 KB

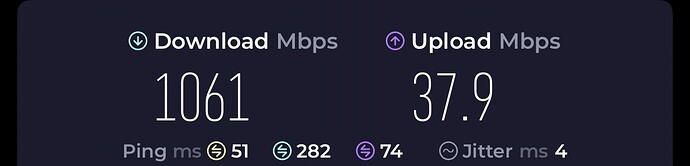

Since I purchased my Flint 2 earlier this week, I’ve been tweaking settings to squeeze as much as I could out of the router to prevent as much of a bottleneck as I can when using SurfSharks WireGuard VPN on my 1.2Gig connection. Here’s what I’ve come up with if anyone else wants to give it a go. I went from about 800-900Mbps on the “stock” settings to over 1Gig.

#!/bin/sh

# Flint 2 Ultimate WireGuard + Surfshark DNS + Firewall Config

# Copy-paste into LuCI -> System -> Startup

# Reboot after applying

###########################################

# Variables

###########################################
SURFSHARK_PRIMARY=162.252.172.57
SURFSHARK_SECONDARY=149.154.159.92
LAN_SUBNET=192.168.8.0/24 # Adjust if your LAN is different
WG_INTERFACE=wg0 # Your WireGuard interface name
WG_MTU=1420

###########################################

# 1. Set CPU governor to performance

###########################################
echo performance > /sys/devices/system/cpu/cpu0/cpufreq/scaling_governor
echo performance > /sys/devices/system/cpu/cpu1/cpufreq/scaling_governor
echo performance > /sys/devices/system/cpu/cpu2/cpufreq/scaling_governor
echo performance > /sys/devices/system/cpu/cpu3/cpufreq/scaling_governor

###########################################

# 2. Enable software flow offloading for NAT

###########################################

# Already enabled via LuCI (keep this for reference)

###########################################

# 3. Force Surfshark DNS for all external queries

###########################################

# Allow LAN to reach router DNS

iptables -I INPUT -s $LAN_SUBNET -p udp --dport 53 -j ACCEPT
iptables -I INPUT -s $LAN_SUBNET -p tcp --dport 53 -j ACCEPT

# Redirect all other external DNS queries to Surfshark

iptables -t nat -A PREROUTING -p udp --dport 53 -s !$LAN_SUBNET -j DNAT --to-destination $SURFSHARK_PRIMARY
iptables -t nat -A PREROUTING -p tcp --dport 53 -s !$LAN_SUBNET -j DNAT --to-destination $SURFSHARK_PRIMARY
iptables -t nat -A PREROUTING -p udp --dport 53 -s !$LAN_SUBNET -j DNAT --to-destination $SURFSHARK_SECONDARY
iptables -t nat -A PREROUTING -p tcp --dport 53 -s !$LAN_SUBNET -j DNAT --to-destination $SURFSHARK_SECONDARY

# Allow router itself to query Surfshark DNS

iptables -I OUTPUT -d $SURFSHARK_PRIMARY -p udp --dport 53 -j ACCEPT
iptables -I OUTPUT -d $SURFSHARK_PRIMARY -p tcp --dport 53 -j ACCEPT
iptables -I OUTPUT -d $SURFSHARK_SECONDARY -p udp --dport 53 -j ACCEPT
iptables -I OUTPUT -d $SURFSHARK_SECONDARY -p tcp --dport 53 -j ACCEPT

# Block any other outbound DNS (prevents leaks)

iptables -A OUTPUT -p udp --dport 53 -j REJECT
iptables -A OUTPUT -p tcp --dport 53 -j REJECT

###########################################

# 4. Block IPv6 DNS and traffic

###########################################
ip6tables -A OUTPUT -p udp --dport 53 -j REJECT
ip6tables -A OUTPUT -p tcp --dport 53 -j REJECT
ip6tables -P INPUT DROP
ip6tables -P FORWARD DROP
ip6tables -P OUTPUT DROP

###########################################

# 5. Optional: Block DoH / DoT bypass

###########################################
iptables -A OUTPUT -p tcp --dport 853 -j REJECT

# Add additional DoH IP blocks on port 443 if desired

###########################################

# 6. WireGuard MTU

###########################################
ip link set dev $WG_INTERFACE mtu $WG_MTU

###########################################

# 7. Flow offload / NAT acceleration

###########################################

# Already recommended to enable via LuCI -> Network -> Firewall

###########################################

# 8. IPv4 forwarding

###########################################
sysctl -w net.ipv4.ip_forward=1

###########################################

# End of configuration

###########################################
exit 0
1 Like
SurfShark Config Tweaks
3

Thank you for sharing your configuration.

We will have our R&D team review whether this applies to all scenarios, and consider making this optimisation the default configuration.

1 Like
4

Is the ping also that high without the governor set?

I know ping is variable on speedtest, but to me it is a bit on the high side I can see that this could cause some issues on sensitive streaming, I use Mullvad with a double tunnel on OpenWrt (wifivpn <-> wgclient) but I get 17 ms, without the dual tunnel I'm close to 6ms, fair enough with a bit of cheating with the offloading off.

I just wonder if the governor causes a spike in latency.

Also because upload is really low vs download, I would expected less latency, which is odd :slight_smile:

5

I’m using a sever than is pretty far away, and the Ping is the same either way. Upload speed isn’t low, that’s what my speed package includes. This is via Spectrum, which isn’t symmetrical.

1 Like
