Flint2 loses Internet access when connecting WireGuard client

Routers VPN, DNS, Leaks
1

Hello GL.iNet community,

I’m currently experiencing an issue with my Flint2 router when using the WireGuard client. When the VPN connection is established, the Flint2 can access the remote VPN network (10.0.88.x), but it completely loses Internet access on the WAN side.

Here are the technical details:

Router / Firmware:

  • GL.iNet Flint2 / GL-MT6000

  • Firmware: OpenWrt 24.0 r27229+44-ebe7c5f1a3

  • Kernel Version: 6.6.47

WireGuard client configuration on Flint2:

[Interface]
Address = 10.0.88.2/32
ListenPort = 51820
PrivateKey = <hidden>
DNS = 1.1.1.1, 2606:4700:4700::1111
MTU = 1280

[Peer]
PublicKey = <server public key>
Endpoint = xx.yyy:51820
AllowedIPs = 10.0.88.0/24
PersistentKeepalive = 25

  • The Flint2 LAN IP is 10.0.0.254.

  • The VPN server is on a VPS (IONOS) with network 10.0.88.0/24.

Routing observations when VPN is active:

root@GL-MT6000:~# ip route
default via ww.xx.yy.zz dev eth1 proto static src ww.xx.yy.zz metric 10
10.0.0.0/24 dev br-lan proto kernel scope link src 10.0.0.254
ww.xx.yy.0/23 dev eth1 proto static scope link metric 10

  • I can ping and access devices on 10.0.88.x without issues.

  • Attempting to ping an external IP like 1.1.1.1 results in:

ping: sendto: Required key not available

WireGuard interface on Flint2 when active:

root@GL-MT6000:~# ip link show
...
21: wgclient: <POINTOPOINT,NOARP,UP,LOWER_UP> mtu 1280 qdisc noqueue state UNKNOWN mode DEFAULT group default qlen 1000
    link/none

Server setup (VPS / IONOS):

  • wg0.conf includes NAT and forwarding rules:
PostUp = sysctl -w net.ipv4.ip_forward=1
PostUp = iptables -A FORWARD -i %i -j ACCEPT
PostUp = iptables -A FORWARD -o %i -j ACCEPT
PostUp = iptables -t nat -A POSTROUTING -s 10.0.88.0/24 -o ens6 -j MASQUERADE
  • AllowedIPs for the Flint2 peer is currently 10.0.88.2/32.

What I’ve tried:

  • Enabling “Access LAN” on the Flint2 WireGuard client

  • Checking iptables rules and routing tables

  • Adjusting MTU to 1280

  • Ensuring the client WireGuard interface is up before adding routes

Observation:

  • The Flint2 successfully connects to the VPN and can reach 10.0.88.x devices.

  • However, any attempt to reach the Internet (WAN) fails, likely due to the Flint2 firmware routing all traffic through the VPN by default.

  • Setting AllowedIPs = 0.0.0.0/0, ::/0 on the client side causes server-side issues due to IPv6 default route conflicts.

Question / Request:

  • Is there a supported way to enable split tunneling on the Flint2 WireGuard client, so that only traffic destined for the VPN (10.0.88.x) goes through the tunnel, while Internet traffic continues through the WAN interface?

  • Are there recommended firewall/iptables or UCI configurations for this scenario on Flint2?

Thank you for any guidance. This behavior seems firmware-related, as the WireGuard interface itself is up and functional, but the routing prevents Internet access when the VPN is active.

2

What GL firmware are you using? I'm guessing the latest but I don't run a Flint v2. The v4.8.x series introduced a policy based routing feature that should solve any split tunneling needs within the 'VPN Dashboard.' Note it's not (LuCI) backup backwards-compatible with v4.7.x & earlier due to the breaking behavior change for dnsmasq. Also note GL PBR is limited to five tunnels.

That said you have a Flint v2: at the risk of putting words in your mouth you should find this entire thread of extreme interest but I'll throw you into it here:

1 Like
3

Hi,

Please switch VPN mode to Policy mode and refer to the following docs:

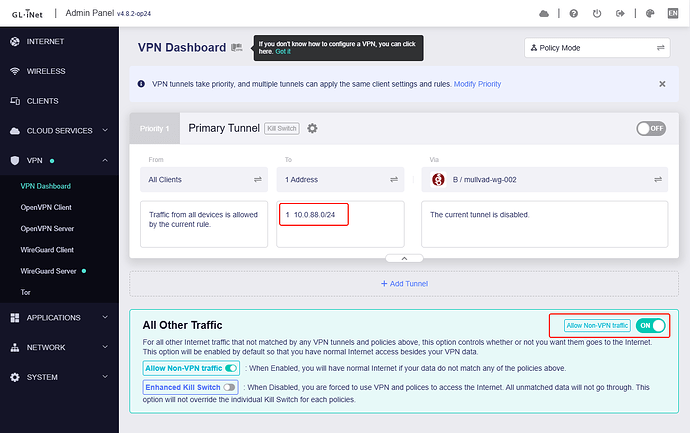

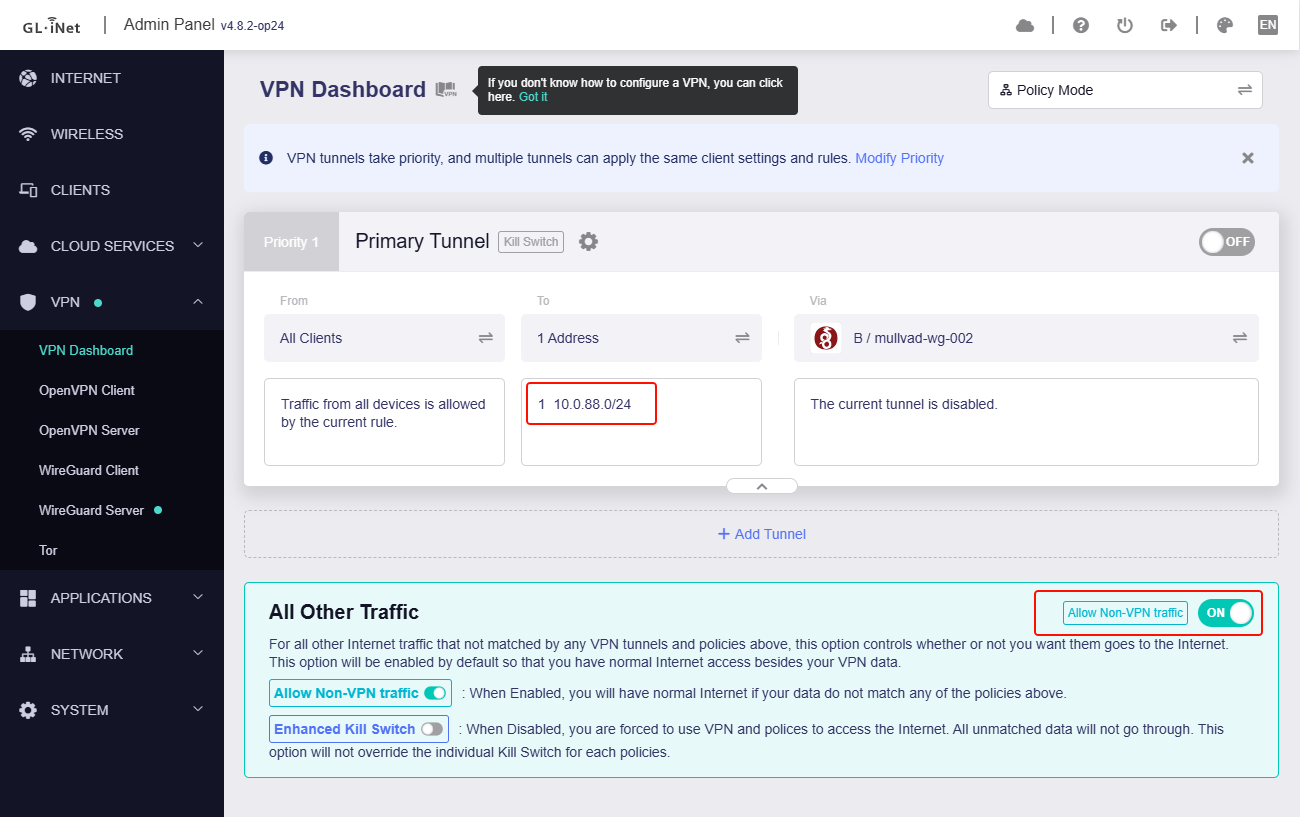

According to your description, your VPN tunnel configuration should look like this:

image1300×817 57.3 KB

In this way, the packets accessing the 10.0.88.0/24 will go to the VPN tunnel; other packets accessing the Internet will go to the WAN port.

1 Like
5

Thank you all for your replies.
The problem was caused by a setting in the VPN Dashboard: the selected option was "Global Proxy" instead of "Auto Detect."
I should point out that i use the Wireguard client, not the server.
Now, VPN access works at the same time as the internet.
Many thanks to this responsive and caring community!

1 Like
