Forwarding Tailscale traffic to Beryl Ax's VPN Client (Mullvad) w/o Mullvad Exit Nodes

Routers
1

hey- I’m new to networking and this community :raised_hand:

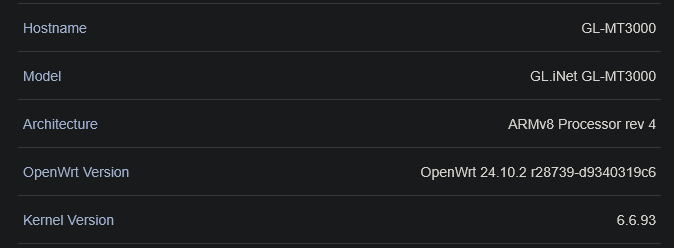

currently on my router (Beryl AX, OpenWrt 24.10.2) my active VPN client is Mullvad, and I have the router as a Tailscale exit node for all my devices. router details at bottom

problem:

when I connect the Tailscale app of my other devices to the exit node (the router), my devices are not connecting to the router’s VPN client.

the VPN only works on said devices when I’m not connected to Tailscale, and when I’m directly connected to the WiFi network (either via Ethernet or Wireless).

even when I’m connected to Tailscale on the network with an active VPN client (which I’m just listing as an observation), the VPN does not work for the connected devices. i.e., Tailscale completely ignores the VPN

goal:

  • to have my router’s Tailscale traffic coming from other devices, routing to Mullvad
  • remote LAN access while on the Tailscale VPN on my devices
  • to avoid paying for more Mullvad credits via Tailscale’s Mullvad extension

is any of this possible?, and could I have guidance for achieving this?

image674×248 3 KB

3

Hi

Currently, Tailscale exit traffic is forwarded directly to the WAN without passing through the VPN.

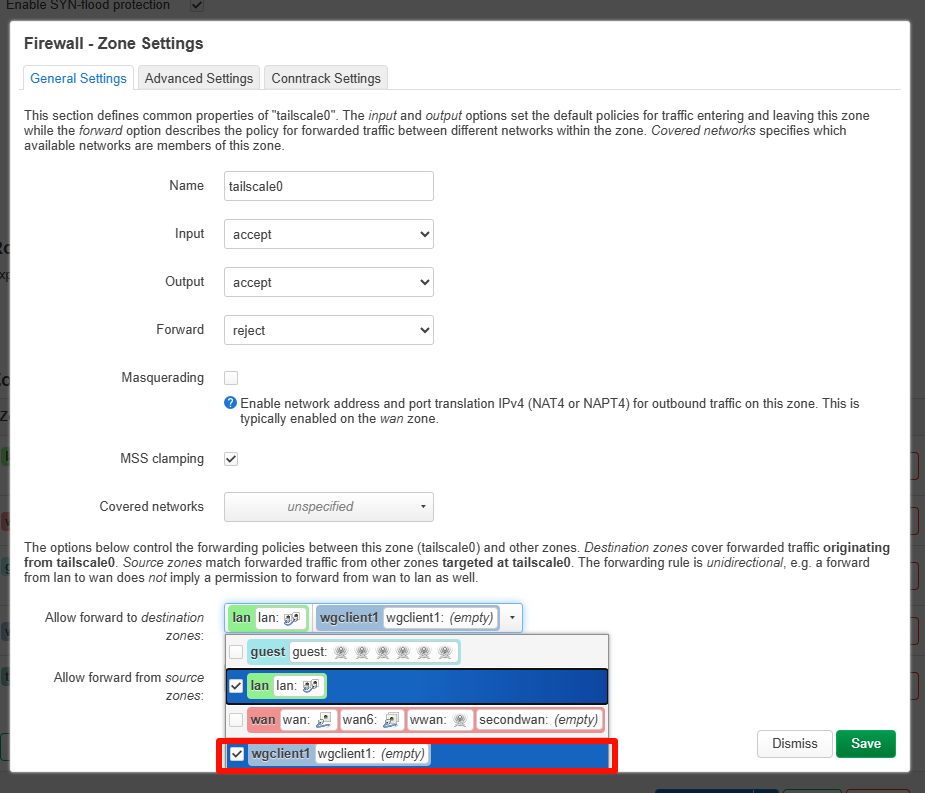

You can refer to the previous answer and configuration this in Luci, but it may be unstable or stop working after some time.
Additional scripts may be needed to write for maintenance.

1 Like
4

i will take a look at this resource, thank you :folded_hands:

5

hey, my IP is masked properly. the vpn is working, thank you very much. however there’s numerous DNS leaks on my device which is connected to the exit node via tailscale. how do i route my dns requests through the vpn as well?

additionally, as jonnyb noted, the chain setup is working really slowly. is there a possible fix, or is this setup inherently going to be slow?

device → internet (100 mbps)

device → vpn → internet: 60 mbps

device → tailscale → vpn → internet: 20 mbps

6

hey anyone troubled,

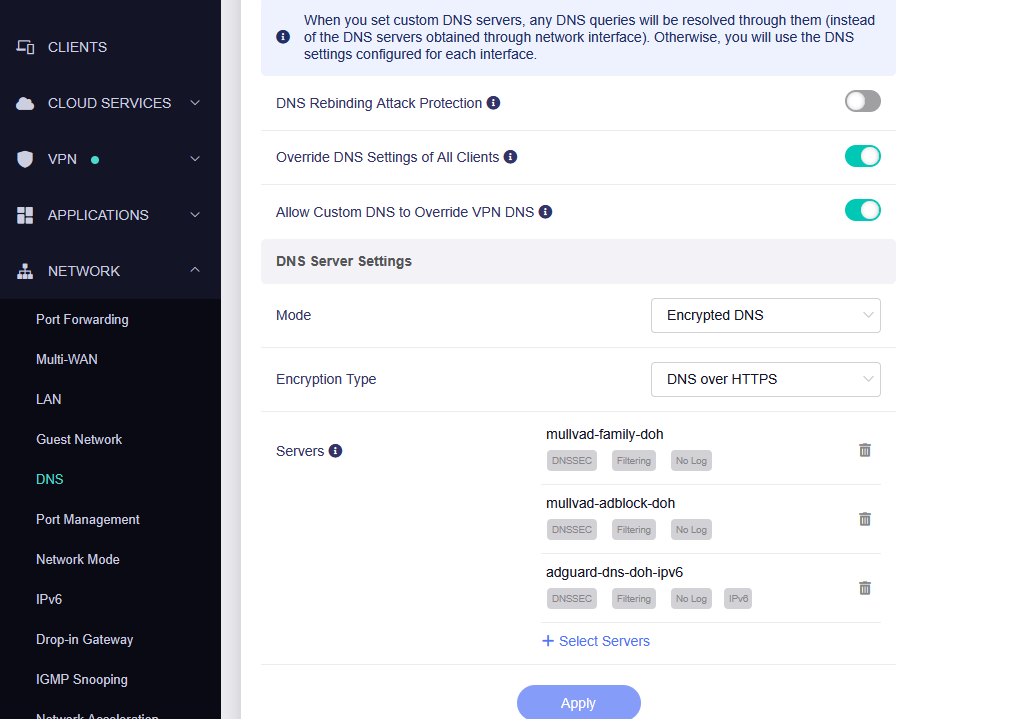

if you’re also having issues with the dns leaks, go into your router admin panel > network > dns

and throw on some encrypted dns. it’s real easy

image1009×719 33.1 KB

if you have applications > adguard home activated, you must disable it otherwise it overrides these dns settings. as well as any other dns application.

set the latter 2 settings “override dns settings of all clients” on, as well as “allow custom dns to override vpn dns”

as aforementioned throw on encrypteddns

dns over https or whatever you need. search up the differences

and now throw on some servers. glinet shows a pre populated list of servers. its great

as for the network speed, no idea how to fix it. i'm 80% sure its a hardware limitation with how wifi works. same reason why repeaters only repeat ~half the download/upload speed of the connected wifi, i think the same issue occurs with tailscale and vpns, hence slower speeds when both are running asynchronously.
make sure to pick a vpn server near you.

1 Like
7

This setup falls under VPN cascading, so higher latency and reduced throughput are expected behaviors.

Client -> Tailscale (First Bottleneck) -> Router (Double Load of VPN encryption/decryption) -> VPN (Second Bottleneck) -> Internet

1 Like
