GL-B3000 (Marble) Web-UI Port Forwarding - no port range possible

Routers
1

I can add port forwarding entries below Network>Firewall with a single port.

Unfortunately it is impossible to add a port-range like 20-21 in web-ui as suggested in the manual Port Forwarding - GL.iNet Router Docs 4

The manual is related to firmware version 4.6 - but for GL-B3000 no newer stable version than 4.5 is available.

Is there an solution without usage of the beta 4.8 version?

2

Hi,

Please try manually upgrade the v4.7.2 beta firmware, this version supported the range for port forwarding, like this

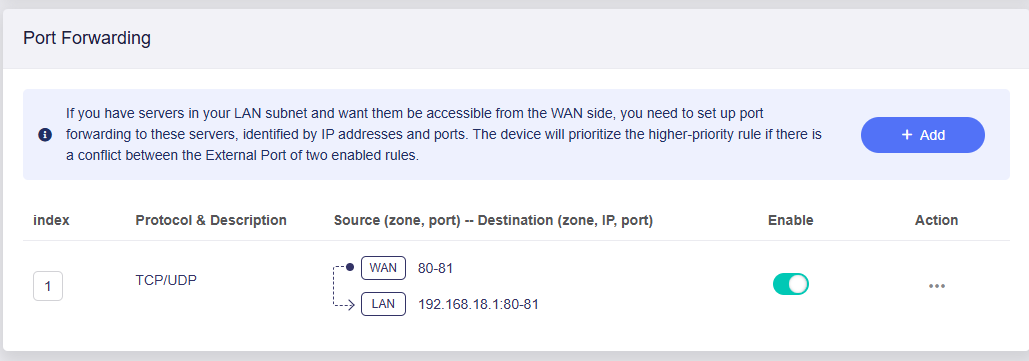

image1029×361 15.9 KB

https://dl.gl-inet.com/router/b3000/beta

4

After upgrade to Version v4.7.2 beta the range for port forwarding works!

But just two hints completly independent from this topic:

  1. Upgrade with "keep settings" option doeas not work. A second attempt without the "keep settings" was necessary.
  2. With new Version v4.7.2 luci webinterface at port 8080 is not able to login. Only luci webinterface at port 8443 is able to login. In both cases appears a "luci: accpeted login on / for root from....
5

May I know did the router modify the "http" port of uhttpd in the previous firmware?

Please try upgrading without "keep settings", or resetting firmware in the current version.
After v4.7.x, Luci is listened to by uhttpd, probaly something previous configurations impact the "http" port configuration.

7

Another Firmware upgrade without keep settings did the job.
Means in fact that a upgrade to 4.7 is not really possible without losing settings.

1 Like
