I’ve set up Tailscale with a custom exit node on
OpenWrt 21.02-SNAPSHOT r16399+159-c67509efd7 / LuCI openwrt-22.03 branch git-21.284.67084-e4d24f0,
firmware version 4.4.6.
Additionally, I followed the documentation on https://openwrt.org/docs/guide-user/services/vpn/tailscale/start to configure an additional interface and firewall settings. The steps I followed include:
- Creating a new unmanaged interface via LuCI.
- Adding a new firewall zone through Network → Firewall → Zones → Add in LuCI.
Setup Tailscale with custom exit node :

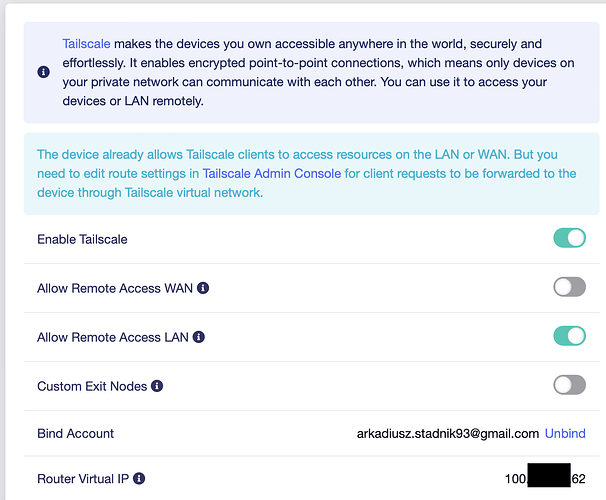

TailScale configuration
However, after setting everything up as shown, I noticed that my Tailscale connection is disconnecting and reconnecting. Below are the logs:
Sat Nov 18 12:54:45 2023 daemon.info avahi-daemon[3855]: Joining mDNS multicast group on interface tailscale0.IPv4 with address 100.*.*.163.
Sat Nov 18 12:54:45 2023 daemon.info avahi-daemon[3855]: New relevant interface tailscale0.IPv4 for mDNS.
Sat Nov 18 12:54:45 2023 daemon.info avahi-daemon[3855]: Registering new address record for 100.*.*.163 on tailscale0.IPv4.
Sat Nov 18 12:54:46 2023 user.notice firewall: Reloading firewall due to ifup of tailscale (tailscale0)
Sat Nov 18 12:54:47 2023 user.notice mwan3[19131]: Execute ifup event on interface tailscale (tailscale0)
Sat Nov 18 12:54:47 2023 user.notice mwan3[19131]: Starting tracker on interface tailscale (tailscale0)
Sat Nov 18 12:54:49 2023 user.info mwan3rtmon[4408]: Detect rtchange event.
Sat Nov 18 12:54:50 2023 daemon.info avahi-daemon[3855]: Interface tailscale0.IPv4 no longer relevant for mDNS.
Sat Nov 18 12:54:50 2023 daemon.info avahi-daemon[3855]: Leaving mDNS multicast group on interface tailscale0.IPv4 with address 100.*.*.163.
Sat Nov 18 12:54:50 2023 daemon.notice netifd: Network device 'tailscale0' link is down
Sat Nov 18 12:54:50 2023 daemon.notice netifd: Interface 'tailscale' has link connectivity loss
Sat Nov 18 12:54:50 2023 daemon.notice netifd: Interface 'tailscale' is now down
Sat Nov 18 12:54:50 2023 daemon.notice netifd: Interface 'tailscale' is disabled
Sat Nov 18 12:54:50 2023 daemon.info avahi-daemon[3855]: Withdrawing address record for 100.*.*.163 on tailscale0.
Sat Nov 18 12:54:50 2023 daemon.notice netifd: Interface 'tailscale' is enabled
Sat Nov 18 12:54:50 2023 daemon.info avahi-daemon[3855]: Joining mDNS multicast group on interface tailscale0.IPv4 with address 100.*.*.163
Sat Nov 18 12:54:50 2023 daemon.info avahi-daemon[3855]: New relevant interface tailscale0.IPv4 for mDNS.
Sat Nov 18 12:54:50 2023 daemon.info avahi-daemon[3855]: Registering new address record for 100.*.*.163 on tailscale0.IPv4.
Sat Nov 18 12:54:50 2023 daemon.notice netifd: Network device 'tailscale0' link is up
Sat Nov 18 12:54:50 2023 daemon.notice netifd: Interface 'tailscale' has link connectivity
Sat Nov 18 12:54:50 2023 daemon.notice netifd: Interface 'tailscale' is setting up now
Sat Nov 18 12:54:50 2023 daemon.notice netifd: Interface 'tailscale' is now up
The problem with the disconnection and reconnection seems to occur when I add the new interface to the router through the LuCI portal. However, there are moments when connected that I am able to reach my exit node IP, so it seems to be working, but something is missing.
When I don’t create these interfaces and firewall rules, I don’t have an internet connection.
Could you advise me on what I might be missing?
