Hi. Where can i find out xl2tpd package and download it?
GL-SFT1200 in ... cgi-bin/luci/admin/network/network/wan - Protocol support is not installed
After pressing button "Install package xl2tpd" appears empty window.
So. Is it possible to configurate l2tp connection with internet provider by using some other way?
Or how can i install those packages to router?
Hi. It doesn't work
root@GL-SFT1200:~# opkg update
Downloading https://fw.gl-inet.com/releases/v18.06.5/kmod-4.3.2/siflower/sf19a28 _nand/Packages.gz
Failed to establish connection
*** Failed to download the package list from https://fw.gl-inet.com/releases/v18 .06.5/kmod-4.3.2/siflower/sf19a28_nand/Packages.gz
Downloading https://fw.gl-inet.com/releases/v18.06.5/packages-4.1/siflower/gline t/Packages.gz
Failed to establish connection
*** Failed to download the package list from https://fw.gl-inet.com/releases/v18 .06.5/packages-4.1/siflower/glinet/Packages.gz
Downloading https://fw.gl-inet.com/releases/v18.06.5/packages-3.6/siflower/packa ges/Packages.gz
Failed to establish connection
*** Failed to download the package list from https://fw.gl-inet.com/releases/v18 .06.5/packages-3.6/siflower/packages/Packages.gz
Updating database.
Database update completed.
Collected errors:
opkg_download: Failed to download https://fw.gl-inet.com/releases/v18.06.5/km od-4.3.2/siflower/sf19a28_nand/Packages.gz, wget returned 4.
opkg_download: Check your network settings and connectivity.
opkg_download: Failed to download https://fw.gl-inet.com/releases/v18.06.5/pa ckages-4.1/siflower/glinet/Packages.gz, wget returned 4.
opkg_download: Check your network settings and connectivity.
opkg_download: Failed to download https://fw.gl-inet.com/releases/v18.06.5/pa ckages-3.6/siflower/packages/Packages.gz, wget returned 4.
opkg_download: Check your network settings and connectivity.
root@GL-SFT1200:~# opkg install xl2tpd
Unknown package 'xl2tpd'.
Collected errors:
So. If i downloaded all those Packages.gz then how can i install its to GL-SFT1200?
Download packages (files) to PC:
https://fw.gl-inet.com/releases/v18.06.5/packages-3.6/siflower/packages/xl2tpd_1.3.12-1_mips_siflower.ipk
https://fw.gl-inet.com/releases/v18.06.5/kmod-4.3.2/siflower/sf19a28_nand/kmod-l2tp_4.14.90-1_mips_siflower.ipk
except this : https://fw.gl-inet.com/releases/v18.06.5/kmod-4.3.2/siflower/sf19a28_nand/kmod-pppol2p_4.14.90-1_mips_siflower.ipk
But how can i install it on GL- SFT1200 ?
With latest firmware 4.3.21 Opal cannot update any package via SSH. It returns "Failed to establish connection".
And to do connection with internet is terrible difficult. I reached out only via Tethering connection using USB wire. Because WWAN port hasnt packages too and you cant to make connection to other wifi.
With firmware 4.3.18 packages have been downloaded and installed via SSH:
GL GUI does not support the l2tp protocol.

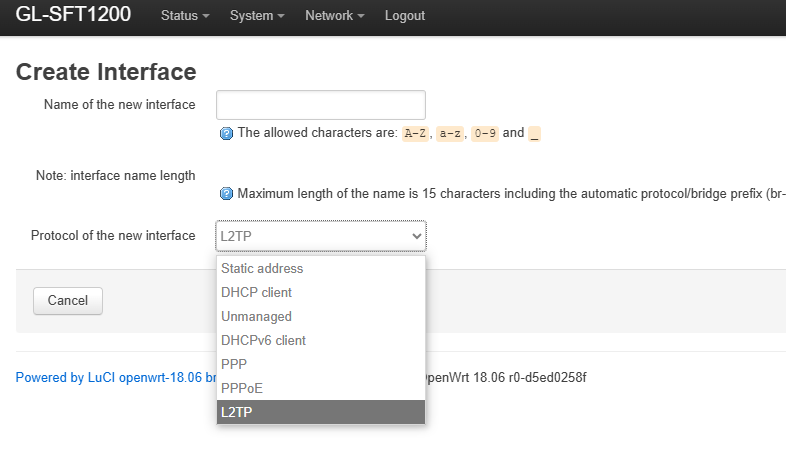

Only support it by the third-party plugins and try configuring in the Luci. If you require the l2tp configuration, please move to Luci, and not touch the GL GUI.
Thank you, Bruce. But it doesn't work.
Can you explain please why l2tp connection obtain IP
Incorrect Configuration or Authentication Failure?
You can read the syslog, to check the l2tp connecting issue.
No. All (configuration and authentication) same as on old ASUS RT-N12 which works perfectly.
The logs from Opal here:
Thu Dec 19 09:40:02 2024 daemon.notice netifd: wan (22262): Could not resolve server address
Thu Dec 19 09:40:07 2024 daemon.debug xl2tpd[2397]: No such tunnel 'l2tp-wan'
Thu Dec 19 09:40:07 2024 daemon.notice netifd: wan (22748): xl2tpd-control: Remove l2tp-wan failed
Thu Dec 19 09:40:07 2024 daemon.notice netifd: Interface 'wan' is now down
Thu Dec 19 09:40:07 2024 daemon.notice netifd: Interface 'wan' is setting up now
Thu Dec 19 09:40:08 2024 user.notice relay: Reloading relay due to ifup-failed of wan ()
Thu Dec 19 09:40:12 2024 daemon.notice netifd: wan (22753): Could not resolve server address
Thu Dec 19 09:40:17 2024 daemon.debug xl2tpd[2397]: No such tunnel 'l2tp-wan'
Thu Dec 19 09:40:17 2024 daemon.notice netifd: wan (23273): xl2tpd-control: Remove l2tp-wan failed
Thu Dec 19 09:40:17 2024 daemon.notice netifd: Interface 'wan' is now down
Thu Dec 19 09:40:17 2024 daemon.notice netifd: Interface 'wan' is setting up now
Thu Dec 19 09:40:18 2024 user.notice relay: Reloading relay due to ifup-failed of wan ()
Thu Dec 19 09:40:22 2024 daemon.notice netifd: wan (23280): Could not resolve server address
Thu Dec 19 09:40:27 2024 daemon.debug xl2tpd[2397]: No such tunnel 'l2tp-wan'
Thu Dec 19 09:40:27 2024 daemon.notice netifd: wan (23746): xl2tpd-control: Remove l2tp-wan failed
Thu Dec 19 09:40:27 2024 daemon.notice netifd: Interface 'wan' is now down
Thu Dec 19 09:40:27 2024 daemon.notice netifd: Interface 'wan' is setting up now
Thu Dec 19 09:40:28 2024 user.notice relay: Reloading relay due to ifup-failed of wan ()
Thu Dec 19 09:40:32 2024 daemon.notice netifd: wan (23751): Could not resolve server address
Any idea why it doesn't works?
It seems that the server address has not been resolved, is it domain name?
try entering the IP in the L2TP Server.
No. It's not helped too (IP).
Mon Dec 23 18:35:12 2024 kern.warn kernel: [ 472.923855] [hnat info] ifname br-guest, index 7 is wan 0
Mon Dec 23 18:35:12 2024 kern.warn kernel: [ 472.966698] [hnat info] ifname br-lan, index 0 is wan 0
Mon Dec 23 18:35:12 2024 kern.warn kernel: [ 473.119366] [hnat info] ifname pppoe-wwan, index 7 is wan 1
Mon Dec 23 18:35:12 2024 kern.warn kernel: [ 473.245020] set port:1 pvid:1
Mon Dec 23 18:35:12 2024 kern.warn kernel: [ 473.248140] set port:2 pvid:1
Mon Dec 23 18:35:12 2024 kern.warn kernel: [ 473.252469] add port:1 for vlan:1 tagged:0
Mon Dec 23 18:35:12 2024 kern.warn kernel: [ 473.257333] add port:2 for vlan:1 tagged:0
Mon Dec 23 18:35:12 2024 kern.warn kernel: [ 473.262200] add port:5 for vlan:1 tagged:1
Mon Dec 23 18:35:12 2024 kern.warn kernel: [ 473.266657] set port:0 pvid:2
Mon Dec 23 18:35:12 2024 kern.warn kernel: [ 473.270839] add port:0 for vlan:2 tagged:0
Mon Dec 23 18:35:12 2024 kern.warn kernel: [ 473.275703] add port:5 for vlan:2 tagged:1
Mon Dec 23 18:35:12 2024 kern.warn kernel: [ 473.280270] set port:5 pvid:2
Mon Dec 23 18:35:12 2024 kern.warn kernel: [ 473.309835] intel write phy:0 addr:0x00000014 val:0x00000006
Mon Dec 23 18:35:12 2024 kern.warn kernel: [ 473.316186] intel write phy:1 addr:0x00000014 val:0x00000006
Mon Dec 23 18:35:12 2024 kern.warn kernel: [ 473.322773] intel write phy:2 addr:0x00000014 val:0x00000006
Mon Dec 23 18:35:12 2024 kern.warn kernel: [ 473.742199] [hnat info] ifname br-guest, index 7 is wan 0
Mon Dec 23 18:35:12 2024 kern.warn kernel: [ 473.815423] [hnat info] ifname br-lan, index 0 is wan 0
Mon Dec 23 18:35:13 2024 kern.warn kernel: [ 474.026764] [hnat info] ifname pppoe-wwan, index 7 is wan 1
Mon Dec 23 18:35:13 2024 kern.warn kernel: [ 474.131567] set port:1 pvid:1
Mon Dec 23 18:35:13 2024 kern.warn kernel: [ 474.134611] set port:2 pvid:1
Mon Dec 23 18:35:13 2024 kern.warn kernel: [ 474.138402] add port:1 for vlan:1 tagged:0
Mon Dec 23 18:35:13 2024 kern.warn kernel: [ 474.143184] add port:2 for vlan:1 tagged:0
Mon Dec 23 18:35:13 2024 kern.warn kernel: [ 474.147825] add port:5 for vlan:1 tagged:1
Mon Dec 23 18:35:13 2024 kern.warn kernel: [ 474.152237] set port:0 pvid:2
Mon Dec 23 18:35:13 2024 kern.warn kernel: [ 474.156051] add port:0 for vlan:2 tagged:0
Mon Dec 23 18:35:13 2024 kern.warn kernel: [ 474.160678] add port:5 for vlan:2 tagged:1
Mon Dec 23 18:35:13 2024 kern.warn kernel: [ 474.165095] set port:5 pvid:2
Mon Dec 23 18:35:13 2024 kern.warn kernel: [ 474.184297] intel write phy:0 addr:0x00000014 val:0x00000006
Mon Dec 23 18:35:13 2024 kern.warn kernel: [ 474.190319] intel write phy:1 addr:0x00000014 val:0x00000006
Mon Dec 23 18:35:13 2024 kern.warn kernel: [ 474.197231] intel write phy:2 addr:0x00000014 val:0x00000006
Mon Dec 23 18:36:04 2024 kern.warn kernel: [ 525.418036] [hnat info] ifname br-guest, index 7 is wan 0
Mon Dec 23 18:36:04 2024 kern.warn kernel: [ 525.467584] [hnat info] ifname br-lan, index 0 is wan 0
Mon Dec 23 18:36:04 2024 kern.warn kernel: [ 525.625767] [hnat info] ifname pppoe-wan, index 7 is wan 1
Mon Dec 23 18:36:04 2024 kern.warn kernel: [ 525.758325] set port:1 pvid:1
Mon Dec 23 18:36:04 2024 kern.warn kernel: [ 525.761460] set port:2 pvid:1
Mon Dec 23 18:36:04 2024 kern.warn kernel: [ 525.765386] add port:1 for vlan:1 tagged:0
Mon Dec 23 18:36:04 2024 kern.warn kernel: [ 525.770106] add port:2 for vlan:1 tagged:0
Mon Dec 23 18:36:04 2024 kern.warn kernel: [ 525.774927] add port:5 for vlan:1 tagged:1
Mon Dec 23 18:36:04 2024 kern.warn kernel: [ 525.779290] set port:0 pvid:2
Mon Dec 23 18:36:04 2024 kern.warn kernel: [ 525.783264] add port:0 for vlan:2 tagged:0
Mon Dec 23 18:36:04 2024 kern.warn kernel: [ 525.787918] add port:5 for vlan:2 tagged:1
Mon Dec 23 18:36:04 2024 kern.warn kernel: [ 525.792444] set port:5 pvid:2
Mon Dec 23 18:36:04 2024 kern.warn kernel: [ 525.814980] intel write phy:0 addr:0x00000014 val:0x00000006
Mon Dec 23 18:36:04 2024 kern.warn kernel: [ 525.821954] intel write phy:1 addr:0x00000014 val:0x00000006
Mon Dec 23 18:36:04 2024 kern.warn kernel: [ 525.828356] intel write phy:2 addr:0x00000014 val:0x00000006
Mon Dec 23 18:36:04 2024 daemon.notice netifd: Interface 'wan' is setting up now
Mon Dec 23 18:36:05 2024 daemon.debug xl2tpd[2302]: No such tunnel 'l2tp-wan'
Mon Dec 23 18:36:05 2024 daemon.notice netifd: wan (19894): xl2tpd-control: Remove l2tp-wan failed
Mon Dec 23 18:36:05 2024 daemon.notice netifd: Interface 'wan' is now down
Mon Dec 23 18:36:05 2024 kern.warn kernel: [ 526.166512] [hnat info] ifname br-guest, index 7 is wan 0
Mon Dec 23 18:36:05 2024 kern.warn kernel: [ 526.209546] [hnat info] ifname br-lan, index 0 is wan 0
Mon Dec 23 18:36:05 2024 kern.warn kernel: [ 526.346937] [hnat info] ifname pppoe-wan, index 7 is wan 1
Mon Dec 23 18:36:05 2024 kern.warn kernel: [ 526.437698] set port:1 pvid:1
Mon Dec 23 18:36:05 2024 kern.warn kernel: [ 526.440742] set port:2 pvid:1
Mon Dec 23 18:36:05 2024 kern.warn kernel: [ 526.444675] add port:1 for vlan:1 tagged:0
Mon Dec 23 18:36:05 2024 kern.warn kernel: [ 526.449301] add port:2 for vlan:1 tagged:0
Mon Dec 23 18:36:05 2024 kern.warn kernel: [ 526.454006] add port:5 for vlan:1 tagged:1
Mon Dec 23 18:36:05 2024 kern.warn kernel: [ 526.458302] set port:0 pvid:2
Mon Dec 23 18:36:05 2024 kern.warn kernel: [ 526.462199] add port:0 for vlan:2 tagged:0
Mon Dec 23 18:36:05 2024 kern.warn kernel: [ 526.466825] add port:5 for vlan:2 tagged:1
Mon Dec 23 18:36:05 2024 kern.warn kernel: [ 526.471074] set port:5 pvid:2
Mon Dec 23 18:36:05 2024 kern.warn kernel: [ 526.490579] intel write phy:0 addr:0x00000014 val:0x00000006
Mon Dec 23 18:36:05 2024 kern.warn kernel: [ 526.497088] intel write phy:1 addr:0x00000014 val:0x00000006
Mon Dec 23 18:36:05 2024 kern.warn kernel: [ 526.503492] intel write phy:2 addr:0x00000014 val:0x00000006
Sorry, since the GL firmware does not support the L2TP protocol, it has not been tested if it is available. So, we are only trying step by step.
This one syslog seems to be a problem with the interface name.
The system cannot pull up the interface 'l2tp-wan'. Probably try the original WAN port back to default.
Like:
Hi. Unfortunately, it is not helped. I hope later with new firmware version Opal become useful.
