Hello,
I’m thinking to buy an GL-X3000 and just wondering if would it be possible to create a DMZ on the second interface or an Vlan for that.
Never used OpenWrt before.
Or should I pass through the connection?
Thank you.
Hi
GL UI provides a single DMZ rule for the interface.
Port Forwarding - GL.iNet Router Docs 4
If you have a second WAN and plan to configure two DMZ rules, we can achieve this by creating multiple DMZ rules in Luci - Network - Firewall - Port Forwards.
Here's one example:
-

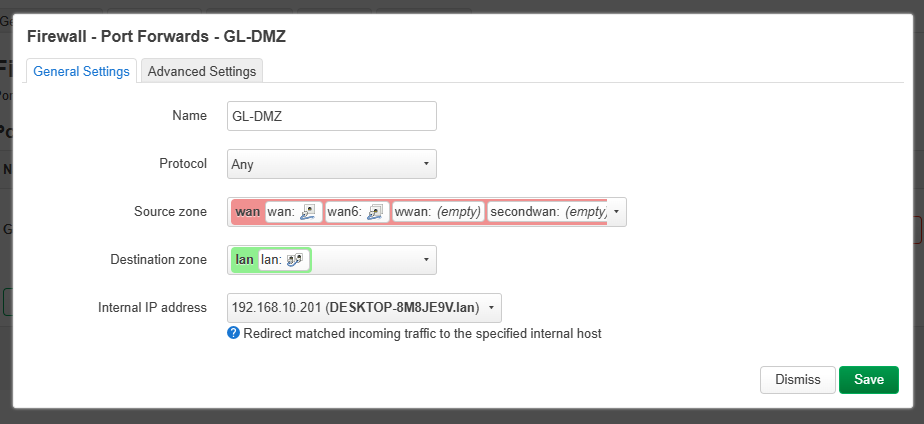

Enter the Internal IP address based on actual setup, keeping all other settings the same as shown in the screenshot.
-

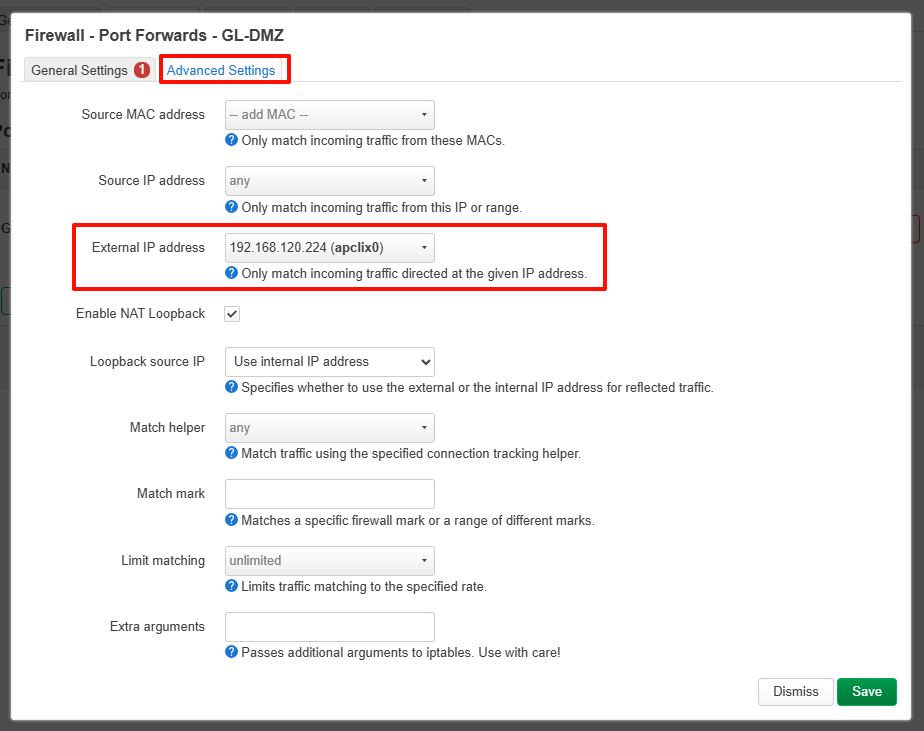

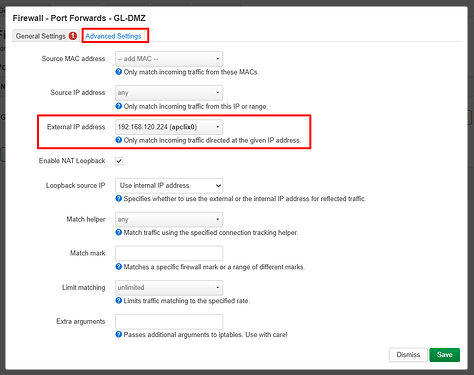

Go to Advanced Settings tabs, Select the External IP address of corresponding WAN port (WAN1/WAN2) based on actual setup.
Hello, so I could create an DMZ Interface on for example eth1 with an 192.168.xxx.xxx/24 RFC Network and use eth0 for lan … or could I only switch between WAN and LAN to use 2.5 Gig …
Thx
Yes, you can create a port-based vlan or a tagged vlan on the X3000 to create a separate logical zone like a DMZ. It is not an exact how-to for the X3000, but you can use this to get you started from a knowledge perspective.
Hi, thank you
