Guest VLAN on a LAN port?

Technical Support for Routers
1

Hi,

Is there away I can assign the guest Wi-Fi (VLAN) onto a single LAN port on the flint 2 as well as being the guest Wi-Fi?

I have a few IoT's devices which isn’t Wi-Fi compatible and don’t want them on my home subnet

Thanks :smiling_face:

1 Like
2

I assume it can.

Luci -> Network -> Interface -> Devices:

  1. br-lan, uncheck the lan port, like lan4.

    image895×575 32.3 KB

  2. br-guest, check the lan4.

    image898×566 30.3 KB

  3. Save and apply.

    image988×198 15.1 KB

4

Hi

Unfortunately that’s not working I don’t see the guest interface on devices, I have removed the lan port 3 from be-lan and that’s it at the moment

5

Can you share a screenshot?

image1427×1025 102 KB

6

Screenshot_5
Screenshot_5419×887 48 KB

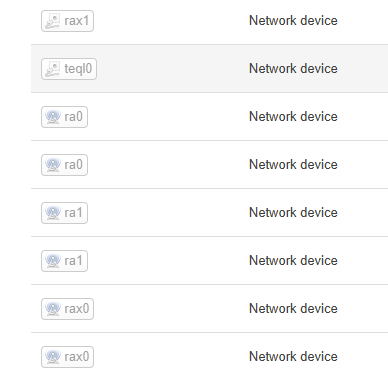

I don't see the guest interface settings either. :ok_man:

It would be great if GL made such a function in the stock interface :+1:

p.s. guest Wi-Fi networks is on

7

Capture
Capture406×553 19.6 KB

Capture2
Capture2388×384 12.3 KB

8

Absolutely, That would be great, Also if they removed there own qos and replaced it with SQM that would be excellent as well, SQM is a game changer!

2 Likes
9

Strange... Which version are you using?
My screenshot was from 4.7.0-op24

10

4.7.0 OpenWrt 21

11

Please try the op24 firmware.

12

Unfortunately the op24 firmware the Wi-Fi strength isn’t good for me on the firmware

13

It's working fine for me.
Can you explain more? I mean, 2.4GHz or 5GHz? In which devices are you finding the issue (mobile phone? laptop?)

14

I’m using op24 4.6.6 after checking release candidate

I will give op24 4.7.0 another try and see, I struggle with the Wi-Fi strength on all devices with the op24 4.7.0 but will give it another try

15

My internet is 500Mbps (download) and 70Mbps (upload).

Result on my Laptop with Wi-Fi 6E AX210 (160MHz), Windows 11, Driver 23.100.0.4

image1354×1455 124 KB

16

Same as my internet plan, 500/70

However I use SQM so I get a A+ ok the bufferbloat test

The speed isn’t the trouble with the op24 4.7.0 beta it’s the signal strength it reduces massively compared to the op24 4.6.6, I’ve noticed txpower is disabled on the op24 4.7.0 beta?

17

Hi Bruce.
Is it possible to include this option to the stock GL interface?

18

I will collect this request.

But it is a bit customize not public, may not consider

19

Remember you deleted one lanx device from br-lan?, just edit guest network in luci -> network -> interfaces -> interfaces (tab) and edit guest network, and then change the device to this lanx device.

the x represent the port number of the lan1,lan2,lan3,lan4,lan5 device.

If for wifi, you might consider using a bridge then please ignore the above of my message a little:

You want to navigate here:

luci -> network -> interfaces -> devices (tab)

Then scroll down and add or create a new device.

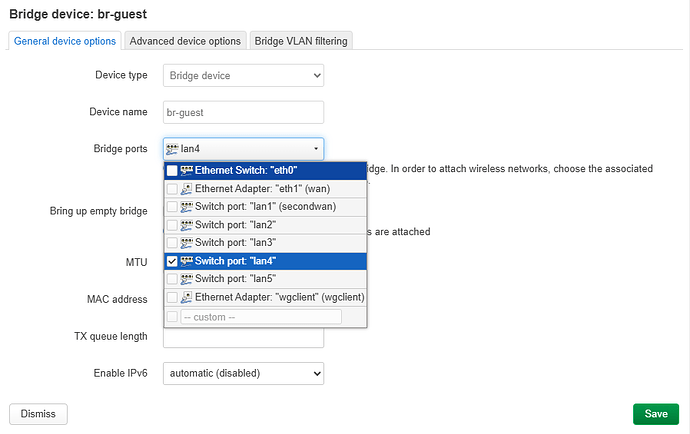

select bridge, and you want to call it br-guest and select keep up empty bridge, then select the lanx device you removed from br-lan, and then click on the tab interfaces again, and then edit guest network and replace the device for br-guest :slight_smile:

2 Likes
