I want to create a “Trunk” port on one of the rear ports. It should carry frame tags (802.1q) which I will connect to another switch that supports this.
May I know what model router you have?
Try looking for it in LuCI:
-

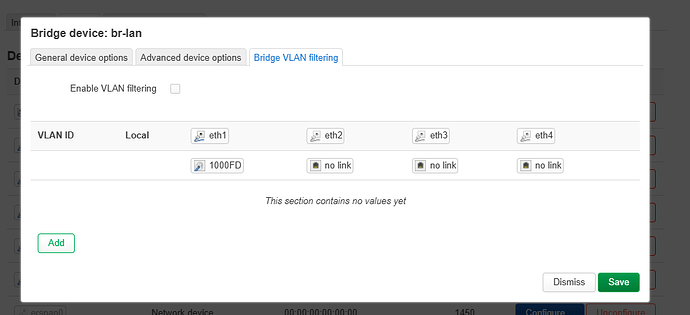

Network > Interfaces > Devices > br-lan > Bridge VLAN filtering
-

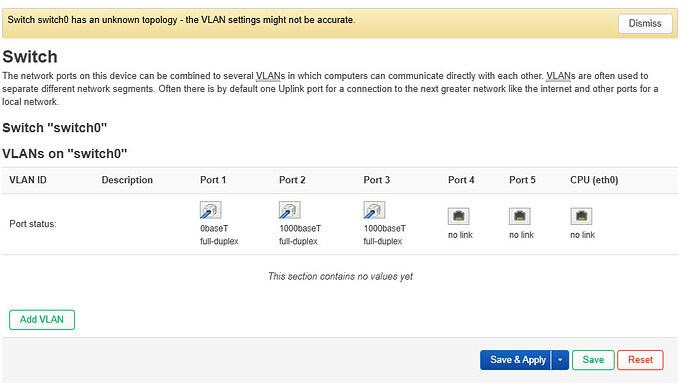

Network > Switch
Hi Bruce, Sorry I omitted the details. Flint 6 GL-AX1800 just upgrade to firmware 4.6.8
I am using Luci and not the main GL iNet GUI.
John
Please manually upgrade to the v4.8.3 (beta) for AX1800 first:
You can find the AX1800 VLAN configuration here:

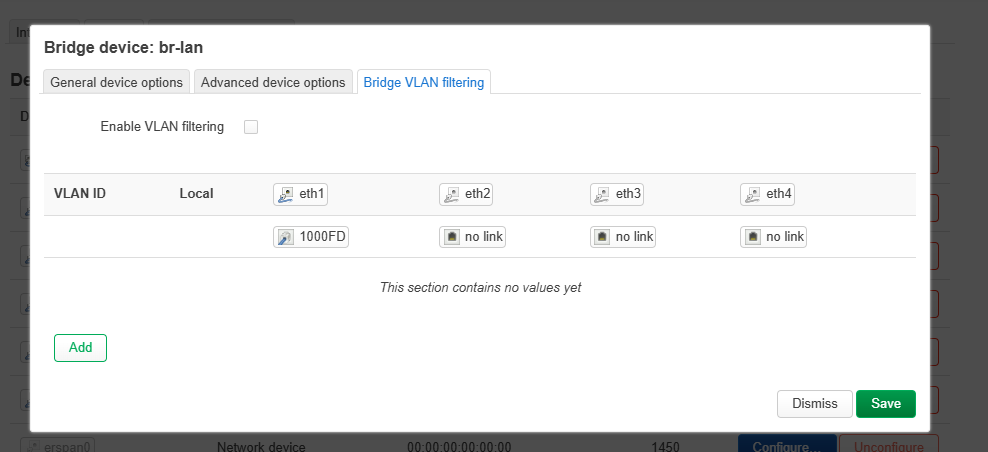

Luci > Network > Interfaces >Devices > br-lan > Configure... > Bridge VLAN filtering
