How to give clients different DHCP options

Routers
1

Hi.
how do i hand out different DHCP options, i.e. gateways, dns servers to specific clients?
i do it now with pihole and dhcp_custom.conf but i would like to do the DHCP with my GL-AXT1800 but can not figure out how to do it.

on dhcp_custom.conf on my pihole it looks like this example
dhcp-option=provider1,3,192.168.0.254
dhcp-option=provider1,6,94.140.14.14, 94.140.15.15
dhcp-option=VPN,3,192.168.0.1
dhcp-option=VPN,6,192.168.0.201
dhcp-host=XX:YY:XX:11:22:33,COMP1,net:provider1,192.168.0.249
dhcp-host=BB:QQ:44:33:21:22,COMP2,net:VPN,192.168.0.248

on the GL-AXT1800 i am even unsure if something like this is possible without further opkg…

thanks in advance

2

provider1,and VPN is ?

3

Hi lizh,
these are just the tags to address the different options to clients

4

You can have a try following steps below.

  1. Open the luci WEB admin panel of GL-AXT1800;
    2.Click network—interface,chose the lan and click Edit;

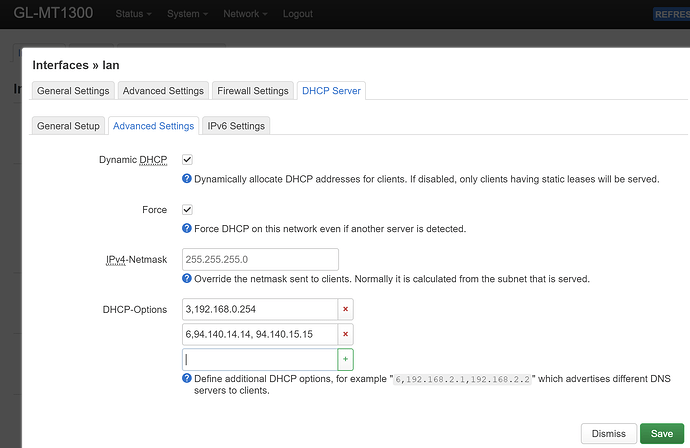

    3.Chose DHCP Server—Advanced settings,you can input the options according to picture below.
    DHCP option
    DHCP option1846×1201 122 KB
6

Hello Battista.xie,
thanks for the info. But this looks like normal dhcp scope settings to me. so i configure the options for all clients at once - standard procedure. instead of the standard i need to hand out different dhcp options for different clients based on their mac adress…
any hint on that?
Thanks

7

anyone with ideas how to achieve this?

8

problem solved. bought another device
