I can’t find the Mudi (GL-E750) V.1 specification in the documentation section?

Hello everyone.

Could you please tell me where the Mudi (GL-E750) V.1 specification is located in the documentation section? I need the details in the following format:

I want to understand the difference between the Mudi (GL-E750) V.1 and the Mudi (GL-E750) V.2 in more detail – what CPU, memory type, etc.

Or have they only changed the battery capacity, memory slot and modem in the (GL-E750) V.2?

Example specification for the Mudi (GL-E750) V.2

Specifications:

CPU: Qualcomm QCA9531, @650MHz
Memory / Storage: DDR2 128 MB / NOR Flash 16MB + NAND Flash 128MB
Protocol: IEEE 802.11a/b/g/n/ac
Wi-Fi Speed: 300Mbps (2.4GHz), 433Mbps (5GHz)
Antennas: Internal antennas
Cellular: CAT4 / CAT6
Battery: Built-In 7000mAh Rechargeable Lithium Polymer Battery
TF Card Slot: 1 x MicroSD card slot (Max.1TB)
USB Port: 1 x USB 2.0
Ethernet Port: 1 x FE Port (supported with the docking station)
Ethernet Speed: 10/100Mbps
Power Input: Type-C, 5V/2A
Power Consumption: Operating at full capacity: <6W(excluding USB external devices)
Dimension / Weight: 145 x 77.5 x 23.5 mm / 285 g

Package Content:

Mudi V2(GL-E750V2) 4G LTE router (2-year Warranty)
Power adapter
Converters (US, EU, UK & AU plugs)
User manual
Warranty card
Ethernet cable
USB-C port replicator
USB-C to USB-C cable
USB-A to USB-C cable
Pouch bag
Thank-you card

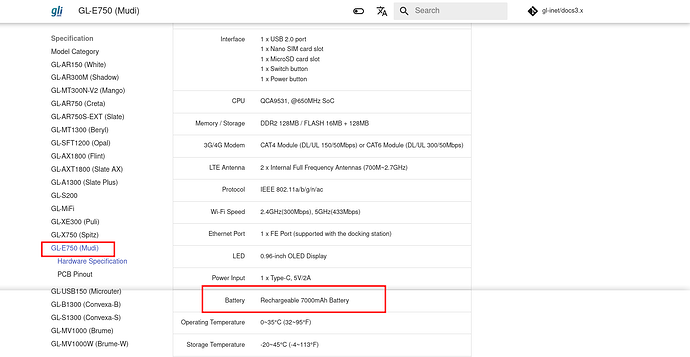

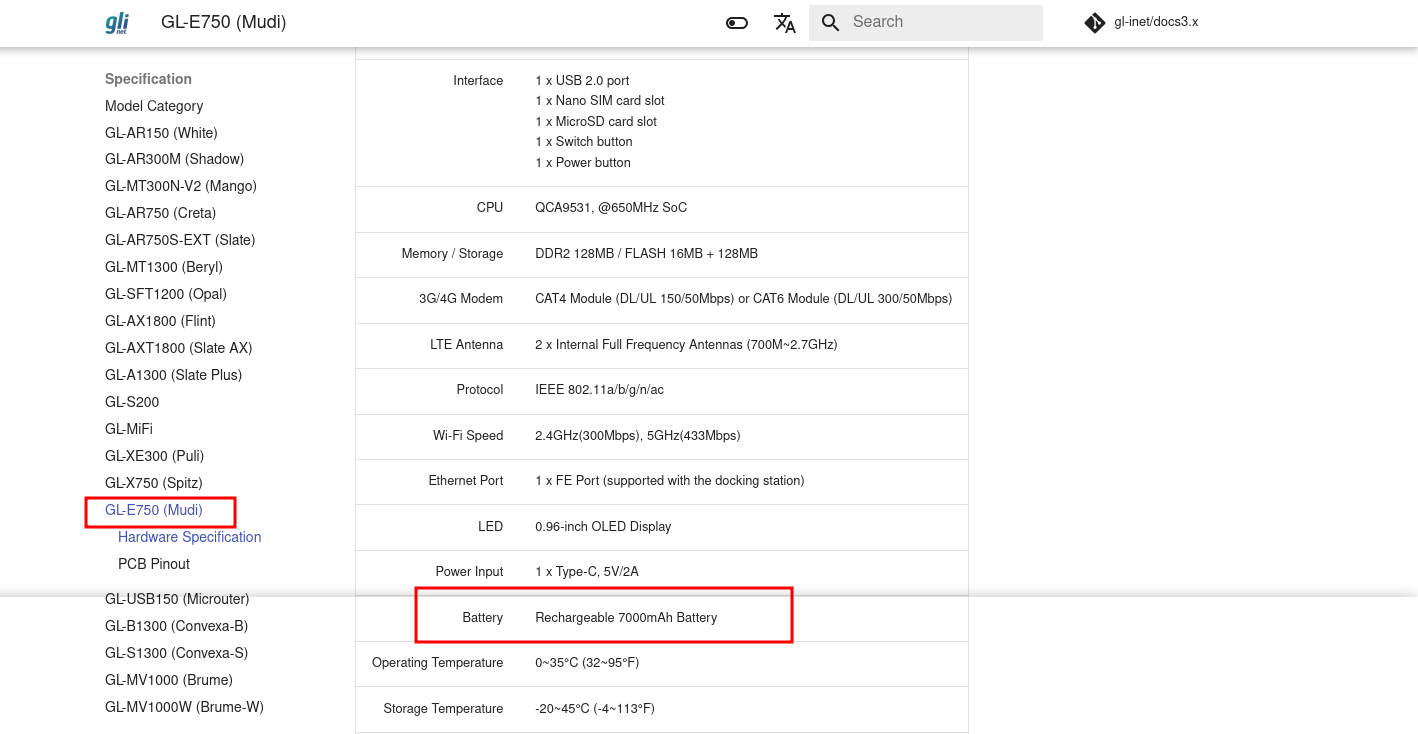

Here is this link and the MUDI V2 specification, and where is the MUDI V1 specification?

I need this Datasheet for MUDI-V1

@alzhao @will.qiu @bruce

Hi

The one you shared is the datasheet for the original Mudi v1.

Please refer to:

1 Like

Super! :+1:

Thank you very much for the information! I'm a little confused about the names..
