So I was checking some of the code to enable the fan on the axt1800 because to my opinion the default value from /usr/bin/gl_fan (I guess the driver or main cmd) was 90 celcius thats a little too hot for my opinion and since its now summer I noticed the hotness of the device (room temperature is 26c currently) but it showed 80 degrees celcius when I used cat /sys/class/thermal/thermal_zone*/temp that made me a little worried of the device health this is pure the die temp I believe.
So upon my inspection of /etc/init.d/gl_fan it links towards a configuration node inside /etc/config/glfan but then I noticed, that the node temperature was not specified.
So I fixed this by adding:
uci set glfan.@globals.temperature='30'
uci commit glfan
this will make the fan spin around 30 degrees which is in my case fine but for others maybe different situation, though I wonder if this is intended or I might spotted a bug? can someone confirm this on release 3 of the AXT1800?
true, but I found a value for /etc/config/glfan if you add: option temperature '60'
the script automaticly reads that node but because it cannot because the node doesn’t exist it defaults back to the drivers default value which is 90c, but for some reason this config value, its not there im not sure if that was the intention

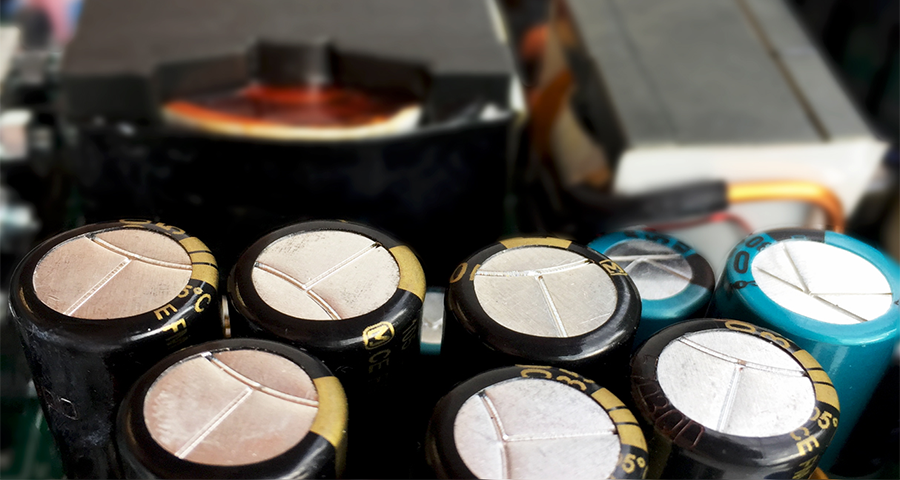

Temperature is still dropping, now its down to 50 deg. Much much better, the routers life will improve drastically. As i wrote in another thread, there are some electrolytic caps on the board, those don’t like heat and they will boil off (maybe even burst) faster than if they were cool.
ah good to know about that, I didn’t know about the caps!, I hope it gets improved.
I tried your version and that one is better in rpm speed, maybe there is also a other missing setting in that config to replicate it via the configuration, but im not sure from what I see there is integration, proportion, and differential but I’m not sure what that means.
So this pdf on the mango SOM used in AXT1800 mentions the temp range for the commercial boards (which I assume this is) is 0-65C.
The gl_fan app only polls the temp and sets the fan every 20 seconds, so If you have a large load spike I suggest bumping the integral-i and derivative-d values of the PID loop as it will not have very many readings to work with to ramp up or smoothly change the speed. In other words- If the load spikes you want the fan to come up to speed quickly. If you only set the temp to 60, the default -i and -d values will never let the fan adjust fast enough to hit the target temp - it will constantly undershoot one way or the other keeping the fan from ramping up because of the slow poll rate.
These settings work fairly well for me to keep it from hitting 65.
uci set glfan.@globals.temperature='60'
uci set glfan.@globals.integration='4'
uci set glfan.@globals.differential='20'
uci commit glfan
you can test this yourself without setting the above
Then open putty and then type under address: 192.168.8.1 or the gateway address of your other dhcp range if you had changed this.
Username is: root
Password is: your web ui password
It will ask you to save the keys click yes.
Then you have a ssh window open and from there you can use commands
Some mini tutorial in linux:
cd - this moves you to folders and folder slash is /
ls - allows you to see all files in folder
vi - allows you to edit a file and write to it, insert key is for writing esc key is to get out of editing mode : is the key to get into the command instructions of vim and for saving such example is :wq and :q is not saving and :q! is force quit, you could install nano aswell which might be easier to use.
In /etc/config are all configuration files and in /etc/init.d/ are all the services
In your case you can try the commands so you don’t have to use alot of editing yet
Thanks for posting all this help - i have also been wondering about the temperature and wondering why the fan did not kick in. Now it is running nicely. Just in case it dies - can we order a spare part (or get the part number so we can order it elsewhere)?
As for the temp settings - i.m.h.o. this should be a normal menu item/entry in the advanced settings.
I am New on slate axt-1800 and howto put a colder setting for the FAN its to much hot
i do not known how to go in the firmware and edit etc/ etc …
Why firmware not include a setting in The GUI of the Router be better for Everybody
