[Issue] Cascading VPN Setup with WireGuard (Server + Client) on GL.iNet Flint 2 (GL-MT6000)

Routers
1

Hello all,

I’m having an issue with my GL.iNet Flint 2 (GL-MT6000) router while trying to set up a cascaded VPN using WireGuard.

Current setup:

  • I enabled the WireGuard Server on the Flint 2 so I can remotely access my home server.

  • I also configured a WireGuard Client to connect to another VPN provider.

Problem:
When I try to use both configurations at the same time (WireGuard Server + WireGuard Client), they seem to conflict:

  • If I enable the WireGuard Server and then turn on the WireGuard Client, I lose internet connectivity.

  • I can’t find any clear option in the router’s interface for VPN cascading or “VPN chaining.”

  • In short, if one service is active, the other gets canceled out.

Device information:

  • Hostname: GL-MT6000

  • Model: GL.iNet GL-MT6000

  • Architecture: ARMv8 Processor rev 4

  • OpenWrt Version: OpenWrt 21.02-SNAPSHOT

  • Kernel Version: 5.4.246

  • Firmware Version: 4.8.2 (release3)

Question:
Does anyone know if the Flint 2 officially supports cascading VPN (WireGuard Server + WireGuard Client running simultaneously)?
If not available through the GUI, is there a way to achieve this by manually editing routes or firewall rules in OpenWrt?

I can’t see it

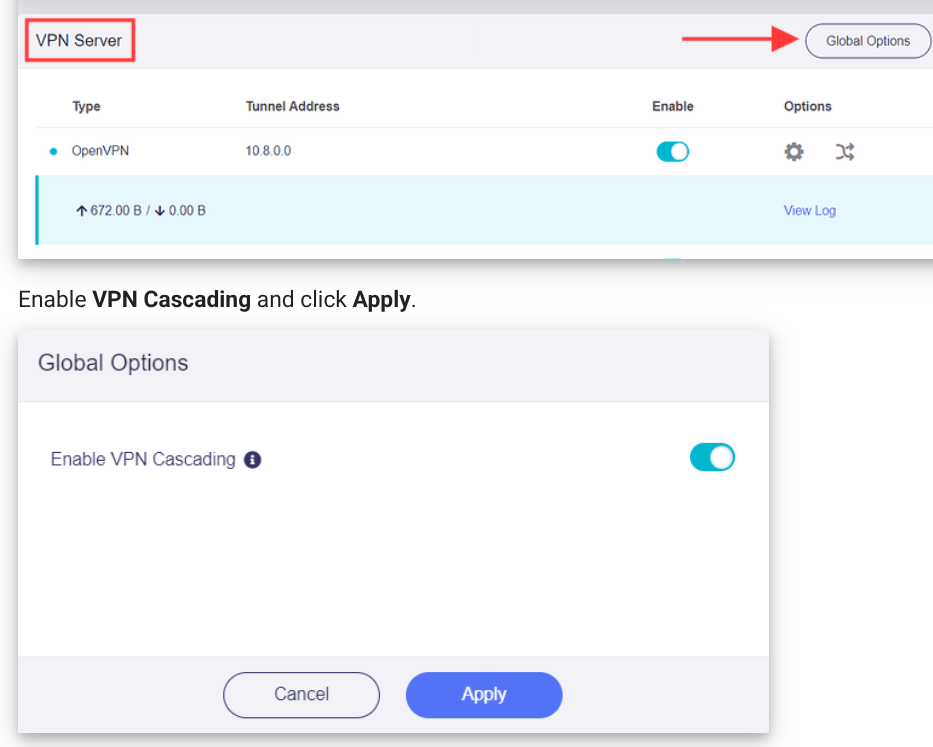

Screenshot From 2025-09-26 13-39-50
Screenshot From 2025-09-26 13-39-50933×747 56.9 KB

3

Hi

On firmware 4.8, the VPN cascading option is no longer available in the UI.

But the VPN cascading is still avialable.
Please refer to the following documentation for configuration guidance:

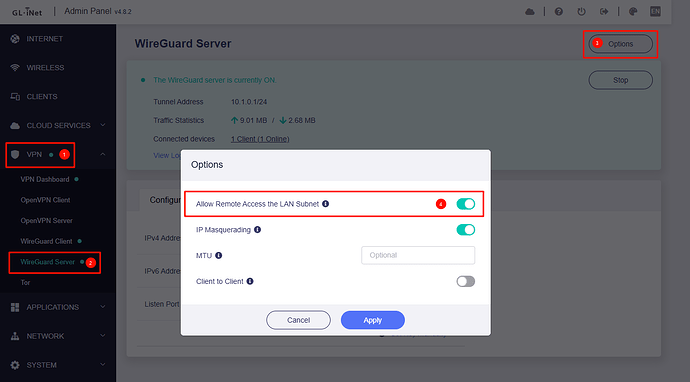

Also, make sure to enable “Allow Remote Access to the LAN Subnet” on the WireGuard server if you need access to your home server.

image1336×740 42.3 KB
