There is an earlier report that enabling BBR breaks the Web UI on Flint 3 — routing, internet and SSH keep working, but the admin UI hangs, and reverting to cubic fixes it instantly. That thread is now closed: BBR breaks Web UI on Flint 3 (4.8.4)
I reproduced it on a Slate 7 (BE3600), firmware 4.9.0, kernel 5.4.213 — same ipq53xx platform and the same package feed as Flint 3 — and tracked down the cause.
This is not a BBR problem. kmod-tcp-bbr from the GL feed is ABI-incompatible with the running kernel, and there is no mechanism that detects it.
The decisive test
cubic (built into kernel) → works
reno (built into kernel) → works
bbr (loadable module) → broken
hybla (loadable module) → broken
scalable (loadable module) → broken
Three algorithms with completely different designs failing identically, while both built-ins work, rules out "the algorithm is bad". The discriminator is built-in vs loadable module. (Tested with hardware acceleration both on and off — no difference.)
Why
The configured feed is:
https://fw.gl-inet.com/releases/qsdk_v12.5/kmod-4.7/be3600-ipq53xx
^^^^^^^^
It is built for firmware 4.7. My device runs 4.9.0, and there is no kmod-4.8 or kmod-4.9 feed — I probed both, for be3600 and be9300, and only kmod-4.7 exists.
Between those builds, struct tcp_sock shifted by 8 bytes. Normally CONFIG_MODVERSIONS catches this via symbol CRCs, but it is disabled on both sides (no module_layout reference in the .ko, no __crc_ symbols in /proc/kallsyms). vermagic only encodes SMP/preempt/arch — it does not check struct layout. So the module loads silently and reads/writes the wrong offsets.
Concretely, by disassembling the running kernel and the module:
kernel: snd_ssthresh=1700 snd_cwnd=1704 snd_cwnd_clamp=1712
module: writes cwnd to 1712 ← that is snd_cwnd_clamp, not snd_cwnd
BBR never touches the real snd_cwnd. After any loss event the kernel sets cwnd to 1, BBR thinks it is restoring it but writes to the wrong field, and cwnd stays at 1 for the life of the connection. ss -ti shows the contradiction directly:
bbr cwnd:1 ... bbr:(bw:2811472bps, mrtt:175.311) pacing_rate 2783360bps
send 50902bps notsent:445701 busy:444430ms
BBR's own model is correct (2.8 Mbps), but cwnd:1 caps the socket at one packet per RTT ≈ 50 kbps.
Why the Web UI specifically
Loopback gets hit hardest:
loopback throughput, 20 MB: cubic ~500 MB/s broken bbr ~18 KB/s
GL's nginx proxies parts of the admin UI over loopback TCP (proxy_pass http://127.0.0.1:3000). Static files that nginx serves from disk are unaffected, and SSH never touches loopback — which is exactly the reported symptom pattern: UI spins, everything else looks fine.

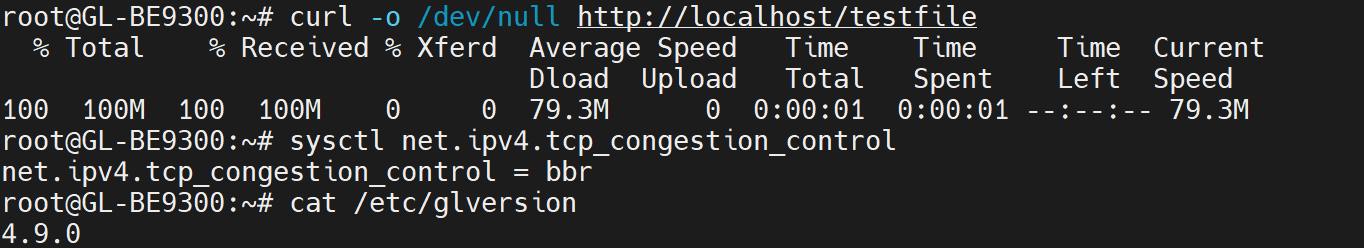

How to check if you are affected
With BBR active, from the router:
curl -o /dev/null http://127.0.0.1/<some large local file>
Healthy: hundreds of MB/s. Broken: tens of KB/s.
Workaround
Rebuild tcp_bbr.ko against headers whose struct layout matches the running kernel. I did this in an arm64 container with upstream 5.4.213 source, verifying with an offsetof probe that the build produces snd_cwnd=1704 / icsk_ca_priv=1264 before installing. Do not just install the feed package.
Results after fixing it
Upload through the proxy, 10 samples each, hardware acceleration on:
cubic mean 725 KB/s median 742 range 542–924
bbr mean 1763 KB/s median 1763 range 1599–1892
2.4x throughput, and far more consistent — BBR's worst sample beats cubic's best. TLS handshake latency was the same for both once DNS noise was excluded, so the gain is throughput and stability, not latency.
Request to GL
- Please publish a kmod feed matching 4.8/4.9, or point the feed at a build made from the shipped kernel tree.
- Consider enabling
CONFIG_MODVERSIONSso mismatches fail loudly instead of silently corrupting memory.
This is not limited to congestion control. Any module in kmod-4.7 that touches struct sock / inet_connection_sock / tcp_sock will read and write wrong offsets on 4.8/4.9, with no warning.
