KVM ATX Board id not working

[aravind598]

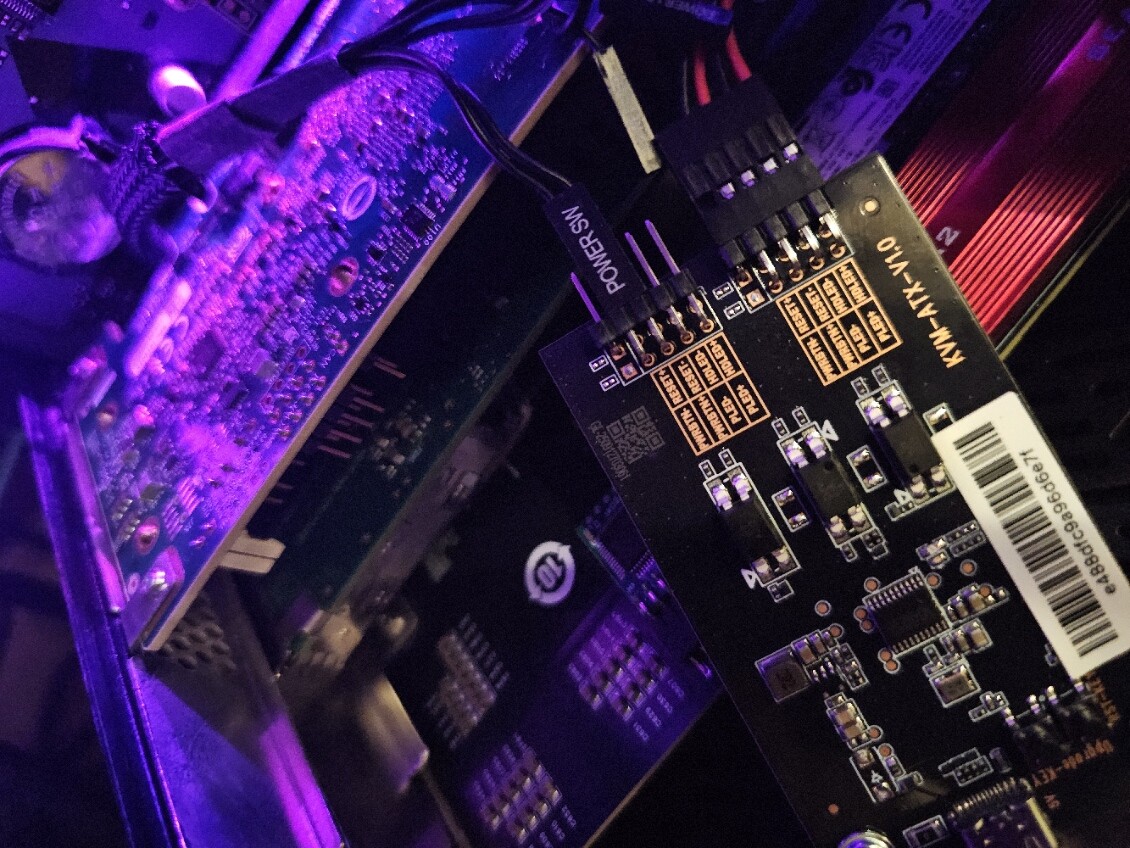

Hi I have an issue regarding my KVM ATX board where I am unable to turn on my system remotely using the KVM ATX Board from the Web Interface.

Powering on using the physical PC Power Switch works in my case

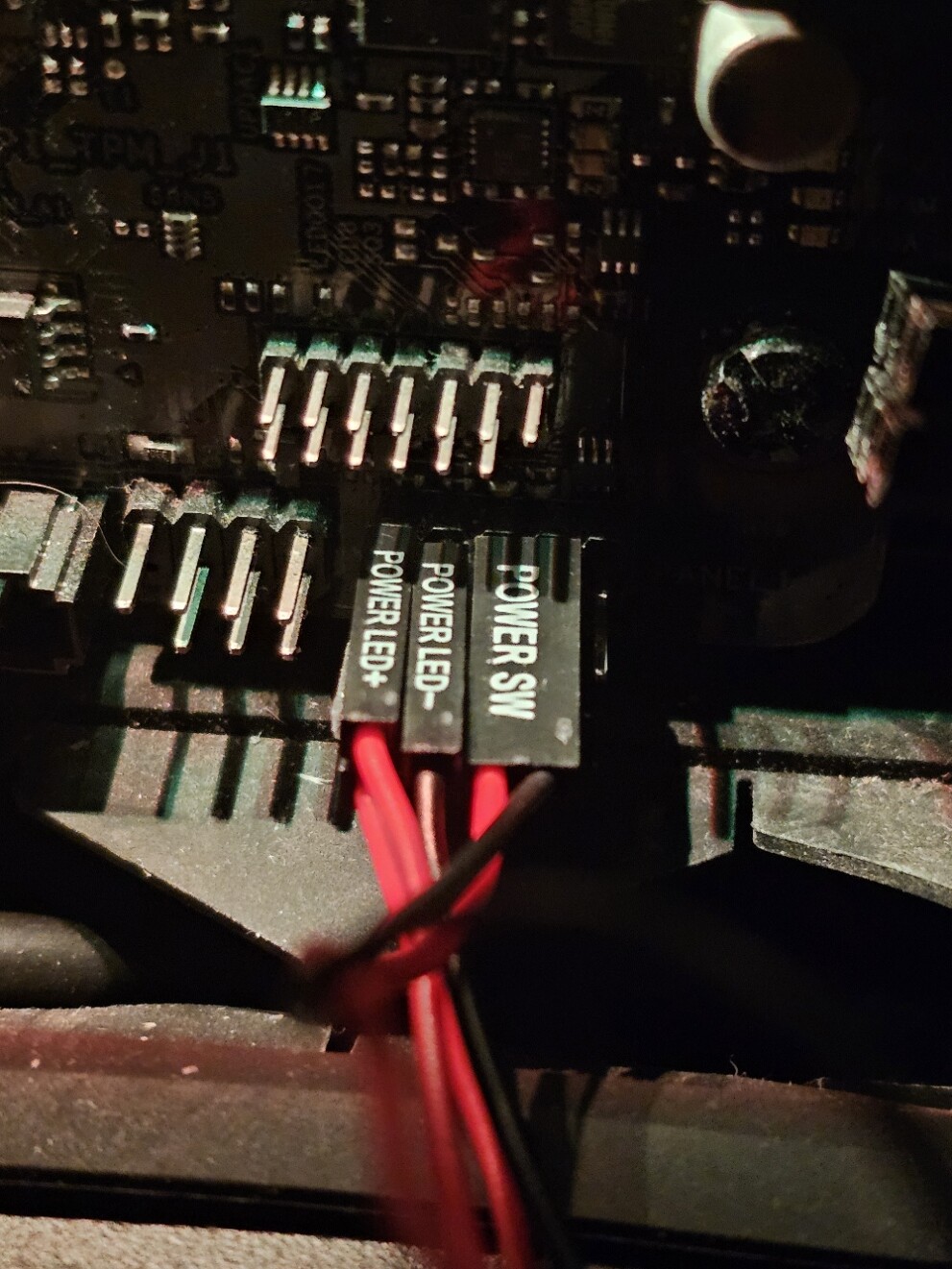

I have followed the suggestions said by many in other threads such as flipping the POWER SW switch at the motherboard side but still I am unable to power on the system.

System is an Asrock Z690 Pro RS in a Fractal Design R5 Chassis.

Hoping to get some help regarding this issue here. Thanks in advance for all the help.

[Flora72]

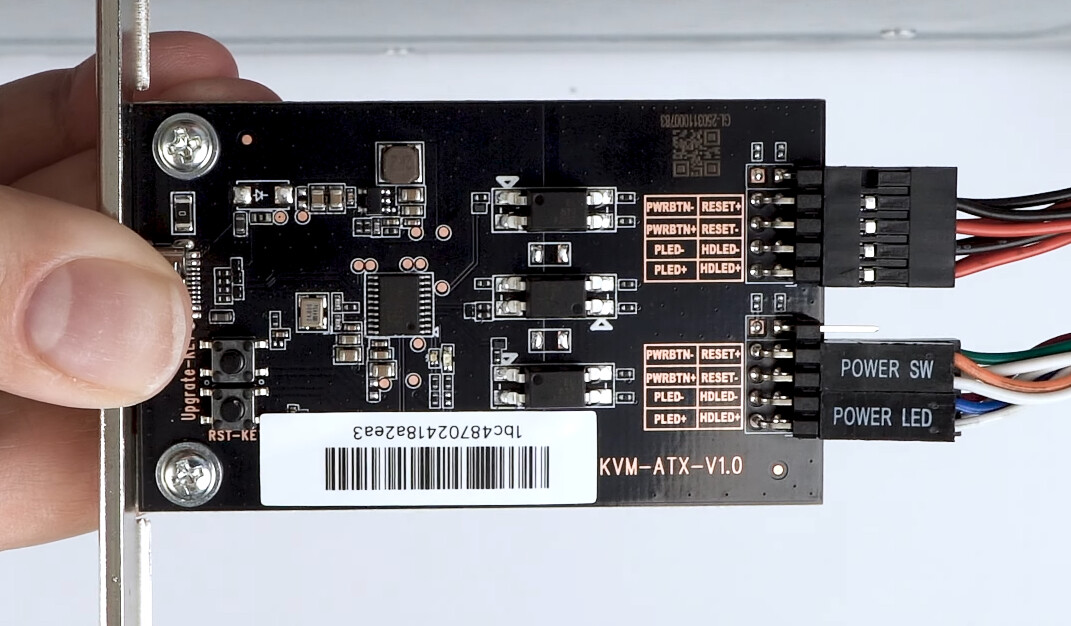

It seems there's a connection error on your ATX motherboard. Please refer to the image below.

[aravind598]

Hi I rewired according to your diagram and I am still unable to remotely power on the system. The ATX light is on

Using this doesn’t help

atxpower /dev/ttyACM0 click_power_short

[Flora72]

Please enter the following command in the terminal: atxpower /dev/ttyACM0 power_state and show the result.

[aravind598]

Power state is on

Have to manually trigger the physical power button to change the power state status.

[Flora72]

After reviewing the issue, we suspect this may be a compatibility problem, and we plan to run some further tests on our end.

We can process a return for you. Just let us know the email address and your order number. You can send the info to this email(flora.wan@gl-inet.com), and we'll get that started.

Maybe you could try Fingerbot, which is a simple and effective workaround: Fingerbot — GL.iNet

[aravind598]

Hi Flora sent you some emails regarding the refund processing and yet to hear from you back.

Could you refer to the email at your earliest convenience. Thank you!
