I am recently experiencing some problems configuring a vpn server on my gl.inet opal device
I use my device in ethernet mode
and in the wan port of my opal device i connected my isp's router brand ZTE
of course i configured in my isp's router port forwaring with port 51820 to use wireguard
obviously the main router and the gl.inet device have different ip classes
the gateway on my isp's router is 192.168.0.1/24 and opal in the network takes ip address 192.168.0.8, then internally on the gl.inet device i have class 192.168.8.1/24
the open port in the isp router is on address 192.168.0.8

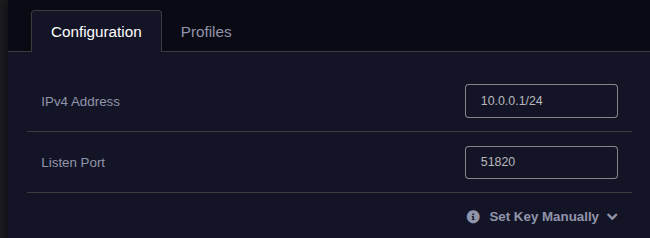

i have subsequently configured wireguard server in a regular way as also shown in the instructions and enabled the Allow remote LAN access feature
but still the vpn doesn't work in any way
in the wireguard logs I don't see anything strange
Wed Jun 25 18:01:30 2025 user.notice relay: Reloading relay due to ifdown of wgserver ()
Wed Jun 25 18:01:32 2025 daemon.notice netifd: Interface 'wgserver' is setting up now
Wed Jun 25 18:01:33 2025 kern.info kernel: [ 8509.122983] IPv6: ADDRCONF(NETDEV_UP): wgserver: link is not ready
Wed Jun 25 18:01:33 2025 daemon.notice netifd: Interface 'wgserver' is now up
Wed Jun 25 18:01:33 2025 daemon.notice netifd: Network device 'wgserver' link is up
Wed Jun 25 18:01:34 2025 user.notice mwan3[15351]: Execute ifup event on interface wgserver (wgserver)
Wed Jun 25 18:01:34 2025 user.notice mwan3[15351]: Starting tracker on interface wgserver (wgserver)
Wed Jun 25 18:01:38 2025 user.notice firewall: Reloading firewall due to ifup of wgserver (wgserver)
Wed Jun 25 18:01:39 2025 user.notice relay: Reloading relay due to ifup of wgserver (wgserver)
Wed Jun 25 18:02:16 2025 daemon.notice netifd: Network device 'wgserver' link is down
Wed Jun 25 18:02:16 2025 daemon.notice netifd: Interface 'wgserver' is now down
Wed Jun 25 18:02:17 2025 user.notice mwan3[16540]: Execute ifdown event on interface wgserver (unknown)
Wed Jun 25 18:02:18 2025 user.notice firewall: Reloading firewall due to ifdown of wgserver ()
Wed Jun 25 18:02:19 2025 user.notice relay: Reloading relay due to ifdown of wgserver ()
Wed Jun 25 19:22:47 2025 daemon.notice netifd: Interface 'wgserver' is setting up now
Wed Jun 25 19:22:47 2025 kern.info kernel: [13383.276795] IPv6: ADDRCONF(NETDEV_UP): wgserver: link is not ready
Wed Jun 25 19:22:47 2025 daemon.notice netifd: Interface 'wgserver' is now up
Wed Jun 25 19:22:47 2025 daemon.notice netifd: Network device 'wgserver' link is up
Wed Jun 25 19:22:48 2025 user.notice mwan3[20365]: Execute ifup event on interface wgserver (wgserver)
Wed Jun 25 19:22:49 2025 user.notice mwan3[20365]: Starting tracker on interface wgserver (wgserver)

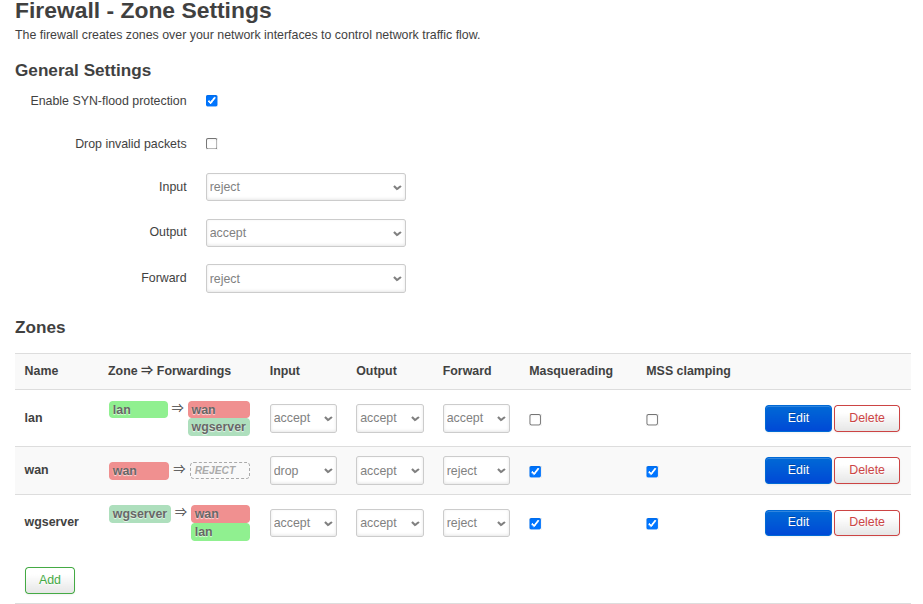

I think it's a problem of interface configuration or firewall
Is it configured correctly ?
At the configuration level on luci I haven't touched any other firewall rules so I don't know
Has anyone encountered the following problem and can give me advice on how to solve it? I even tried configuring wg on a different port for fear that my isp's router would block the following port but still nothing
i ask for your help because i dont know how to proceed anymore if needed i can provide more detailed troubleshooting details
client configuration
[Interface]
Address = 10.0.0.2/24
PrivateKey = xxxx
DNS = 64.6.64.6
MTU = 1420
[Peer]
AllowedIPs = 0.0.0.0/0,::/0
Endpoint = xxx:51820
PersistentKeepalive = 25
PublicKey = xxxxx
thank you for helping me
