Traveling with GL-SFT1200 WireGuard

Routers VPN, DNS, Leaks
1

Hi there,

I’m working on a network configuration for traveling.

My goal is to maintain a consistent location for my internet connection while moving between different countries.

Challenges I’m facing:

  1. I have a corporate laptop running Windows 11 with strict policies, which prevents me from configuring network preferences. I can only connect to the internet via Wi-Fi or LAN.
  2. I must use a corporate VPN (AnyConnection by Cisco).

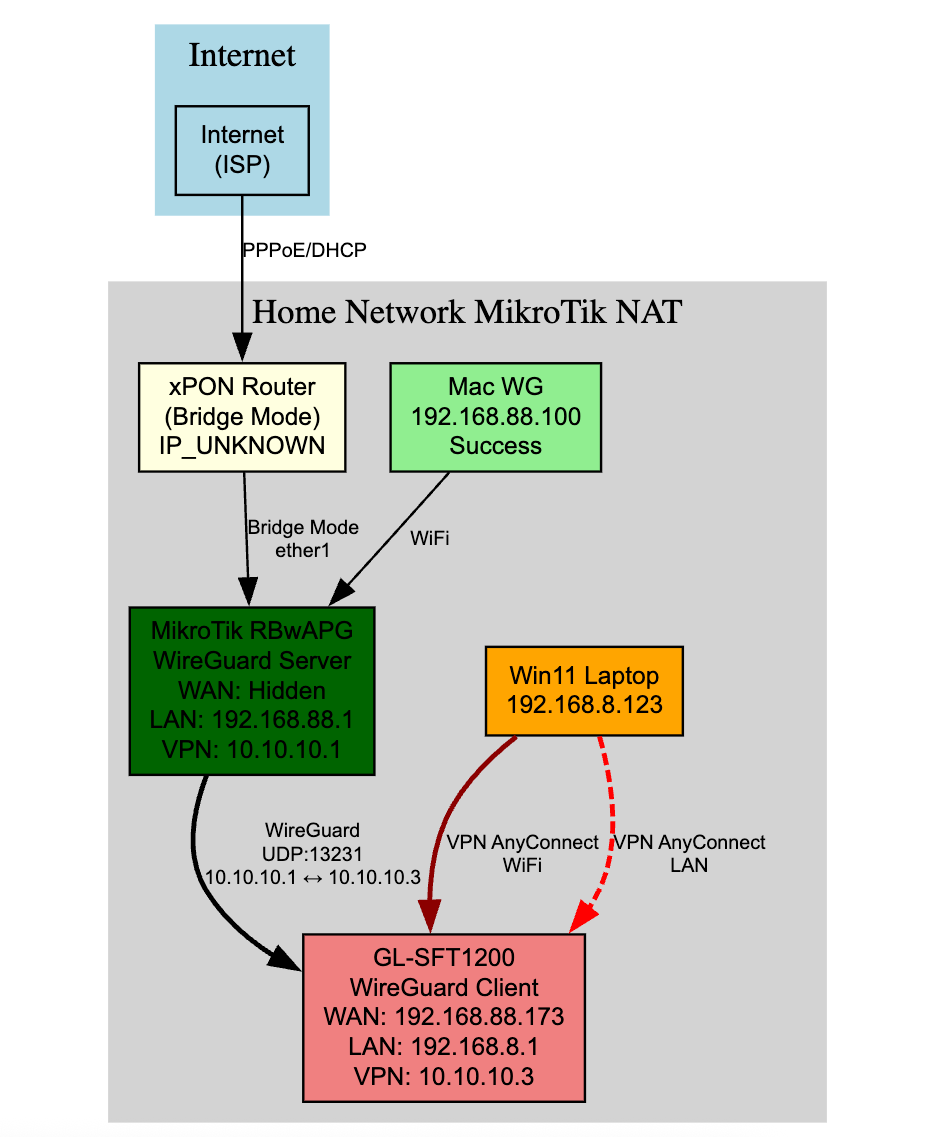

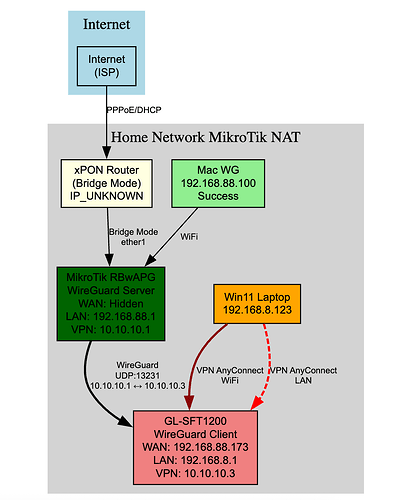

Schema:
Corporative laptop
⇅ AnyConnection VPN
⇅ Ethernet / Wi-Fi
GL.iNet (WireGuard-client) ←→ Internet in trip Ethernet / Wi-Fi
⇅ WireGuard tunnel
Root Internet provider ←→ MikroTik RouterOS (WireGuard-server)

Shortly my corporate laptop connects to a GL.iNet device, which routes through the root internet provider.

I have some result:
1 - Configuration works with Corporative laptop connected with WiFi to GL.iNet, but configuration has high latency.
2 - Configuration laptop connected with LAN to GL.iNet cannot connect to AnyConnection VPN

Notes:
1 - Without Wireguard tunnel configuration works normal

Do somebody can give advices and hack how to improve WiFi configuration and fix LAN ?

image936×1137 71.5 KB

[Interface]
ListenPort = 51820
PrivateKey = PR_K_GL_WG_CLIENT
Address = 10.10.10.3/32
DNS = 1.1.1.1
[Peer]
PublicKey = PB_K_MIKROTIK_WG_SERVER
AllowedIPs = 0.0.0.0/0, ::/0
Endpoint = host.mynetname.net:13231
2

LAN or Wi-Fi shouldn't make that much of a difference although a cable will always have less latency than Wi-Fi. Remove as many variables as you can. Try a machine fully under your control that's hard lined to the Opal's LAN.

4

Can you try using the OpenVPN client on your router?

After connecting your laptop to the SFT1200, try pinging 8.8.8.8, pinging your company VPN server domain name/ip.
If you can access the public network but not AnyConnect, try checking the ports and firewall.

5
  • It works perfectly with a LAN connection.
  • Its performance is not as good with the AnyConnect VPN due to its slow speed.
  • The worst performance occurs when using AnyConnect in conjunction with the WireGuard client on GL SFT1200. This is because WireGuard frequently disconnects. When I access the VPN Dashboard, it displays an orange color with the status: “VPN client is starting…”

I expected connection degradation when including WG VPN, and moreover, AnyConnect VPN, it is okay.
My concern is about the GL SGT1200 WireGuard client, which doesn't keep a stable connection.

6

I didn't catch your advice.
Do you want me to use OpenVPN client on GL router to connect to WireGuard server of Mikrotik router?

The current configuration is live, but it has a poor connection and latency quality. As I said before:

Blockquote * The worst performance occurs when using AnyConnect in conjunction with the WireGuard client on GL SFT1200. This is because WireGuard frequently disconnects. When I access the VPN Dashboard, it displays an orange color with the status: “VPN client is starting…”

7

Do you have a commercial WG provider you can test against? If not Proton VPN has a free plan. They have .conf files you can upload directly to the GL GUI -> VPN - WG Client. That will rule out the MikroTik or not. It should.

8

Thank you. I will try Proton VPN to check

1 Like
