Vlan config

Hi!

Hopefully a simple question:

My fiber provider uses a Vlan to connect to its service. The Vlan I used in my old Asus router was 100. How do I set it up in my Flint2?

Configuration is:

Fiber → Huawei ONT → Flint2

Where to tell the Flint that connection to the internet is made not bij pppoe, but by adding “VLAN 100"?

Thanks!

Unless you have a complex or non-standard ISP setup, you can normally enter additional info under each protocol:

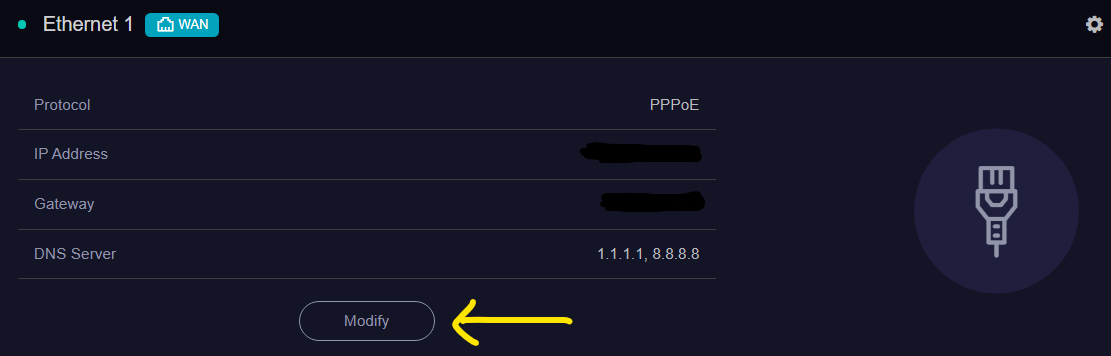

In the Internet Setup (press Modify option if you’ve already set it up to edit the configuration):

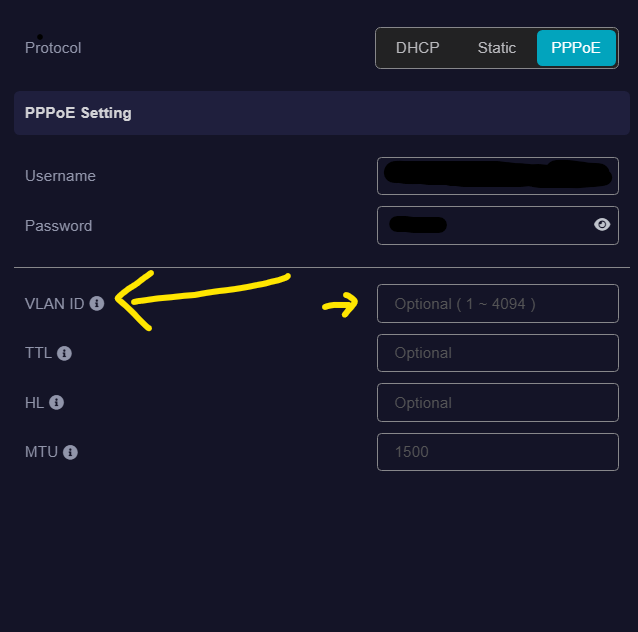

Then select your Protocol, (DHCP, Static or PPPoE), then enter the VLAN ID in the box as shown:
