VPN wireguard and Adguard Home

Routers Cellular, USB modems
16

Sorry but it still does not work.

IMG_0043.PNG2054×1240 183 KB

Captura de pantalla 2024-08-14 133748
Captura de pantalla 2024-08-14 1337481824×983 83.7 KB

Captura de pantalla 2024-08-14 125623
Captura de pantalla 2024-08-14 1256231179×426 10.4 KB

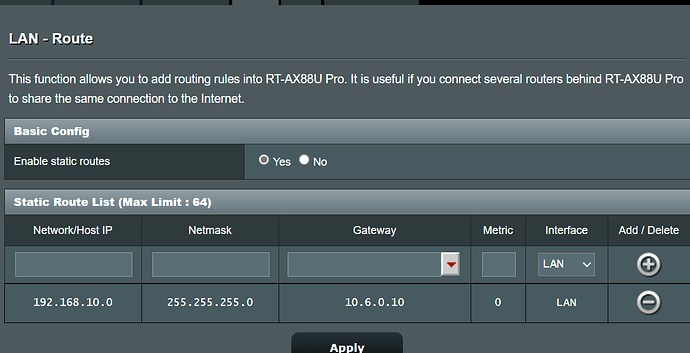

image1132×580 39.8 KB

image1129×835 42.8 KB

image1114×688 39 KB

root@GL-X750:~# uci export network
package network

config interface 'loopback'
        option device 'lo'
        option proto 'static'
        option ipaddr '127.0.0.1'
        option netmask '255.0.0.0'

config globals 'globals'
        option ula_prefix 'fd52:4828:3011::/48'

config device
        option name 'br-lan'
        option type 'bridge'
        list ports 'eth1'

config device
        option name 'eth1'
        option macaddr '94:83:c4:50:0a:c3'

config interface 'lan'
        option device 'br-lan'
        option proto 'static'
        option netmask '255.255.255.0'
        option ip6assign '60'
        option isolate '0'
        option ipaddr '192.168.10.1'

config device
        option name 'eth0'
        option macaddr '94:83:c4:50:0a:c2'

config interface 'wan'
        option device 'eth0'
        option proto 'dhcp'
        option force_link '0'
        option ipv6 '0'
        option classlessroute '0'

config interface 'wan6'
        option proto 'dhcpv6'
        option disabled '1'
        option device '@wan'

config interface 'tethering6'
        option proto 'dhcpv6'
        option disabled '1'
        option device '@tethering'

config interface 'wwan6'
        option proto 'dhcpv6'
        option disabled '1'
        option device '@wwan'

config interface 'guest'
        option force_link '1'
        option type 'bridge'
        option proto 'static'
        option ipaddr '192.168.9.1'
        option netmask '255.255.255.0'
        option ip6assign '60'
        option multicast_querier '1'
        option igmp_snooping '0'
        option isolate '0'
        option bridge_empty '1'
        option disabled '1'

config interface 'wwan'
        option proto 'dhcp'
        option classlessroute '0'

config interface 'modem_1_1_2_6'
        option proto 'dhcpv6'
        option disabled '1'
        option device '@modem_1_1_2'

config rule 'policy_direct_rt'
        option lookup 'main'
        option suppress_prefixlength '0'
        option priority '1100'

config rule 'policy_default_rt_vpn'
        option mark '0x8000/0xc000'
        option lookup '8000'
        option priority '1101'
        option invert '1'

config rule6 'policy_direct_rt6'
        option lookup 'main'
        option suppress_prefixlength '0'
        option priority '1100'

config rule6 'policy_default_rt_vpn6'
        option mark '0x8000/0xc000'
        option lookup '8000'
        option priority '1101'
        option invert '1'

config rule 'policy_default_rt_vpn_ts'
        option lookup 'main'
        option priority '1099'
        option mark '0x80000/0xc0000'
        option invert '0'

config interface 'modem_1_1_2'
        option apn 'airtelwap.es'
        option proto 'qmi'
        option device '/dev/cdc-wdm0'
        option node '1-1.2:1.4'
        option username 'wap@wap'
        option password 'wap125'
        option metric '40'
        option roaming '1'
        option band_enable '0'
        option disabled '0'

config interface 'wgclient'
        option proto 'wgclient'
        option config 'peer_2001'
        option disabled '0'



root@GL-X750:~# wg show
interface: wgclient
  public key: xxxxxawwm+KbjzExxxxxx9ArpBco8nRw=
  private key: (hidden)
  listening port: 51323
  fwmark: 0x8000

peer: xxxxxxxM=
  endpoint: xx.xx.216.231:51820
  allowed ips: 0.0.0.0/0
  latest handshake: 1 minute, 7 seconds ago
  transfer: 352.23 KiB received, 450.72 KiB sent
  persistent keepalive: every 25 seconds
root@GL-X750:~# cat /etc/config/firewall

config defaults
        option input 'ACCEPT'
        option output 'ACCEPT'
        option forward 'REJECT'
        option synflood_protect '1'

config zone
        option name 'guest'
        option network 'guest'
        option output 'ACCEPT'
        option input 'ACCEPT'
        option forward 'ACCEPT'

config zone
        option name 'lan'
        list network 'lan'
        option input 'ACCEPT'
        option output 'ACCEPT'
        option forward 'ACCEPT'

config zone
        option name 'wan'
        list network 'wan'
        list network 'wan6'
        list network 'wwan'
        list network 'modem_1_1_2'
        option output 'ACCEPT'
        option forward 'REJECT'
        option masq '1'
        option mtu_fix '1'
        option input 'DROP'

config zone 'wgclient'
        option name 'wgclient'
        option output 'ACCEPT'
        option mtu_fix '1'
        option network 'wgclient'
        option input 'ACCEPT'
        option masq6 '0'
        option forward 'DROP'
        option enabled '1'
        option masq '0'

config forwarding
        option src 'lan'
        option dest 'wan'
        option enabled '0'

config rule
        option name 'Allow-DHCP-Renew'
        option src 'wan'
        option proto 'udp'
        option dest_port '68'
        option target 'ACCEPT'
        option family 'ipv4'

config rule
        option name 'Allow-IGMP'
        option src 'wan'
        option proto 'igmp'
        option family 'ipv4'
        option target 'ACCEPT'

config rule
        option name 'Allow-DHCPv6'
        option src 'wan'
        option proto 'udp'
        option dest_port '546'
        option family 'ipv6'
        option target 'ACCEPT'

config rule
        option name 'Allow-MLD'
        option src 'wan'
        option proto 'icmp'
        option src_ip 'fe80::/10'
        list icmp_type '130/0'
        list icmp_type '131/0'
        list icmp_type '132/0'
        list icmp_type '143/0'
        option family 'ipv6'
        option target 'ACCEPT'

config rule
        option name 'Allow-ICMPv6-Input'
        option src 'wan'
        option proto 'icmp'
        list icmp_type 'echo-request'
        list icmp_type 'echo-reply'
        list icmp_type 'destination-unreachable'
        list icmp_type 'packet-too-big'
        list icmp_type 'time-exceeded'
        list icmp_type 'bad-header'
        list icmp_type 'unknown-header-type'
        list icmp_type 'router-solicitation'
        list icmp_type 'neighbour-solicitation'
        list icmp_type 'router-advertisement'
        list icmp_type 'neighbour-advertisement'
        option limit '1000/sec'
        option family 'ipv6'
        option target 'ACCEPT'

config rule
        option name 'Allow-ICMPv6-Forward'
        option src 'wan'
        option dest '*'
        option proto 'icmp'
        list icmp_type 'echo-request'
        list icmp_type 'echo-reply'
        list icmp_type 'destination-unreachable'
        list icmp_type 'packet-too-big'
        list icmp_type 'time-exceeded'
        list icmp_type 'bad-header'
        list icmp_type 'unknown-header-type'
        option limit '1000/sec'
        option family 'ipv6'
        option target 'ACCEPT'

config rule
        option name 'Allow-IPSec-ESP'
        option src 'wan'
        option dest 'lan'
        option proto 'esp'
        option target 'ACCEPT'

config rule
        option name 'Allow-ISAKMP'
        option src 'wan'
        option dest 'lan'
        option dest_port '500'
        option proto 'udp'
        option target 'ACCEPT'

config include 'nat6'
        option path '/etc/firewall.nat6'
        option reload '1'

config rule 'block_dns'
        option name 'block_dns'
        option src '*'
        option dest_port '53'
        option target 'REJECT'
        option device 'br-*'
        option enabled '0'

config include 'gls2s'
        option type 'script'
        option path '/var/etc/gls2s.include'
        option reload '1'

config include 'glblock'
        option type 'script'
        option path '/usr/bin/gl_block.sh'
        option reload '1'

config forwarding
        option src 'guest'
        option dest 'wan'
        option enabled '0'

config rule
        option name 'Allow-DHCP'
        option src 'guest'
        option target 'ACCEPT'
        option proto 'udp'
        option dest_port '67-68'

config rule
        option name 'Allow-DNS'
        option src 'guest'
        option target 'ACCEPT'
        option proto 'tcp udp'
        option dest_port '53'

config include 'vpn_server_policy'
        option type 'script'
        option path '/etc/firewall.vpn_server_policy.sh'
        option reload '1'
        option enabled '1'

config forwarding 'wgclient2wan'
        option src 'wgclient'
        option dest 'wan'
        option enabled '1'

config forwarding 'lan2wgclient'
        option src 'lan'
        option dest 'wgclient'
        option enabled '1'

config forwarding 'guest2wgclient'
        option src 'guest'
        option dest 'wgclient'
        option enabled '1'

config forwarding 'wgclient2lan'
        option src 'wgclient'
        option dest 'lan'
        option enabled '1'

config forwarding
        option dest 'guest'
        option src 'wgclient'

config rule 'glservice_https'
        option name 'glservice_https'
        option dest_port '443'
        option proto 'tcp udp'
        option src 'wan'
        option target 'ACCEPT'
        option enabled '1'

root@GL-X750:~#
