Wireguard (NordVPN) enormous packet loss

Router
1

Hi all,

Runninig speedtest.net Android app to test connection shows enormous packet loss for WG tunnel on Beryl AX.

If I disable tunnel on Beryl AX, and use NordVPN Android app to establish tunnel using the same server - there is 0 packet loss.

Steps:

  1. run speedtest .net app meassure with no vpn
  2. In NordVPN app on device establish connection(note server number in the upper left corner), run speedtest .net app
  3. repeat speedtest .net app meassure
  • disconnect NordVPN app tunnel.
  1. In Beryl, use same server number for WG config, make tunnel for just that 1 device, run speedtest .net app
  2. repeat speedtest .net app meassure

Please check servers and ips on screenshots. Also look at the packet loss.

Setup:

Device: Beryl AX
Firmware: 4.8.1
Settings:

  • no repeater
  • no AddGuard
  • lan cable directly to ISP's ONT device for FTTH.
  • 1 WireGuard NordVPN tunnel for 1 device, all targets - Android 13 Tablet
  • Wifi 5ghz, Android 13 Tablet connected

Thank you

01-base
01-base664×1943 114 KB

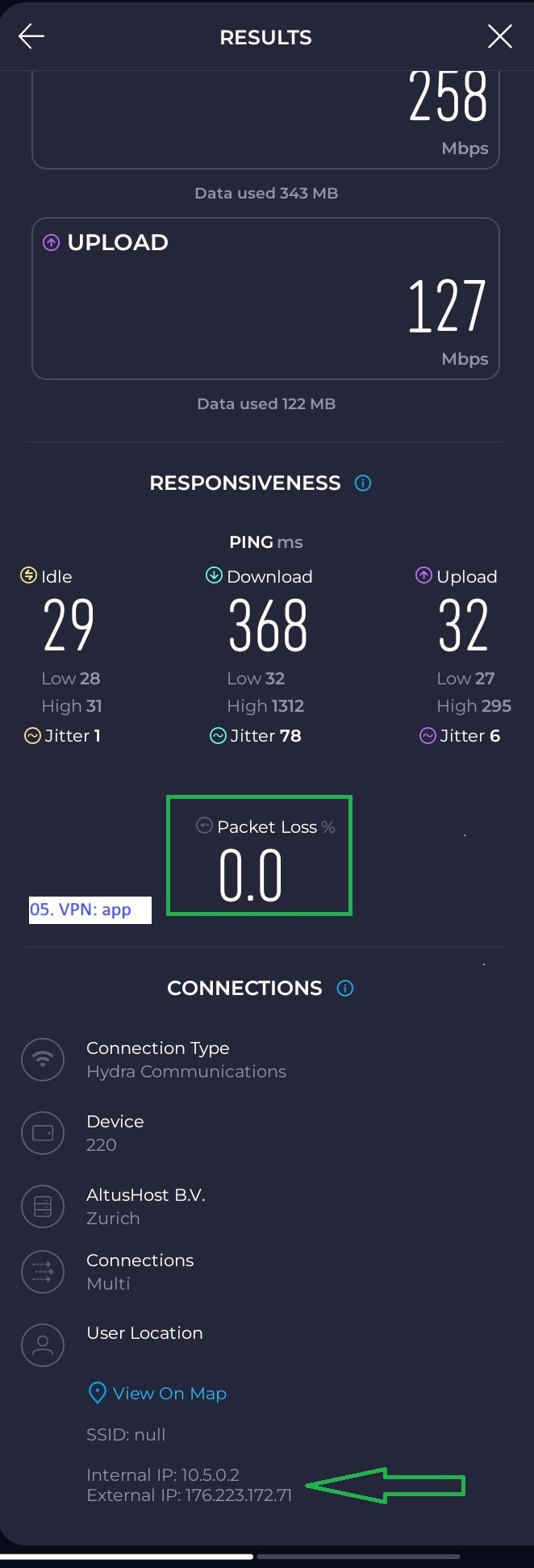

02-app
02-app662×1944 118 KB

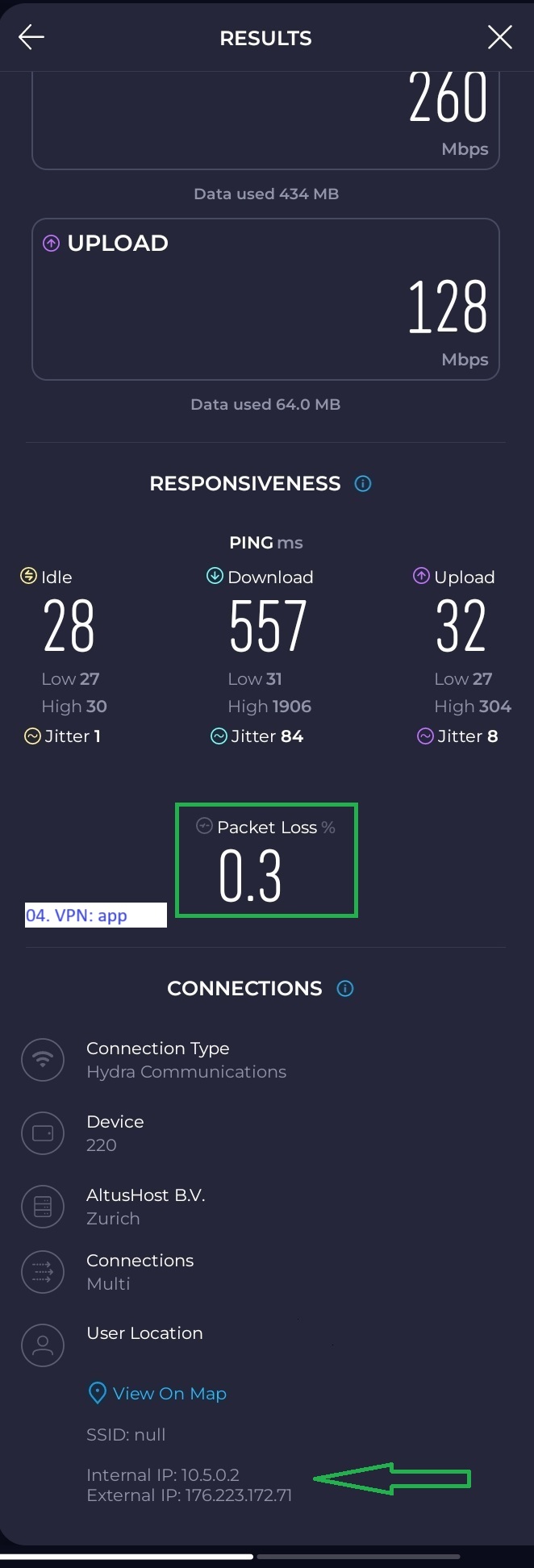

03-app
03-app662×1943 118 KB

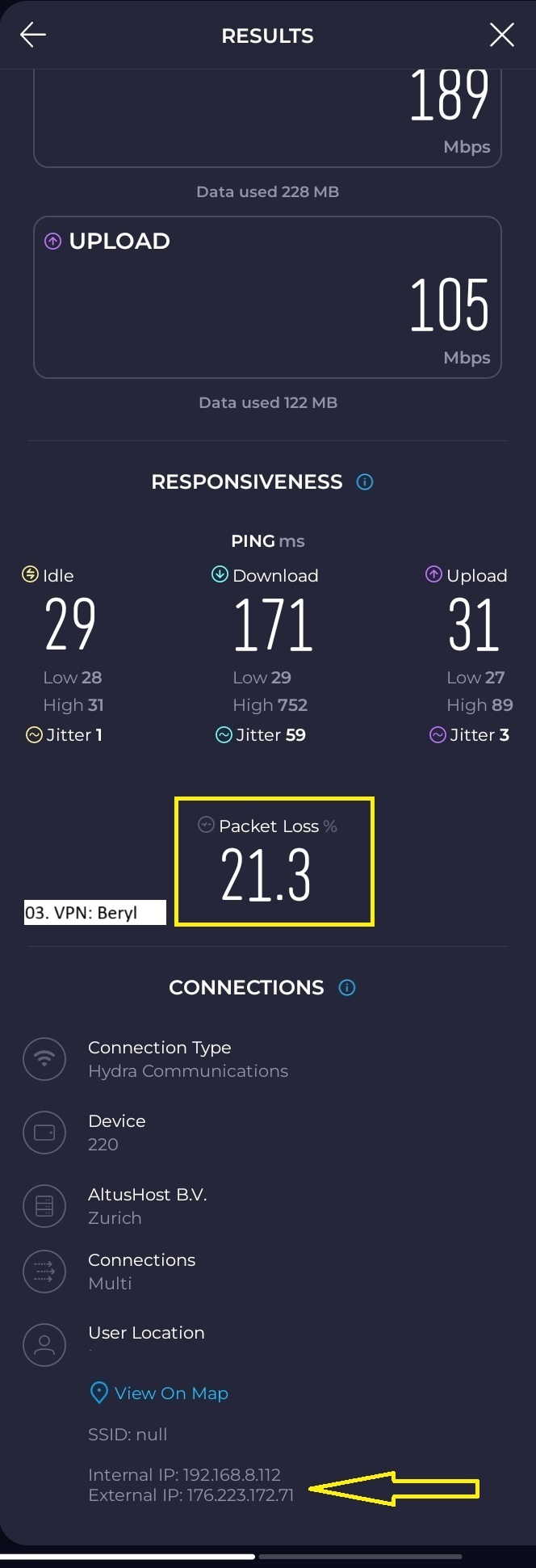

04-beryl
04-beryl665×1943 120 KB

05-beryl
05-beryl664×1941 119 KB

2

Hi,

Please try the following and see whether it helps:

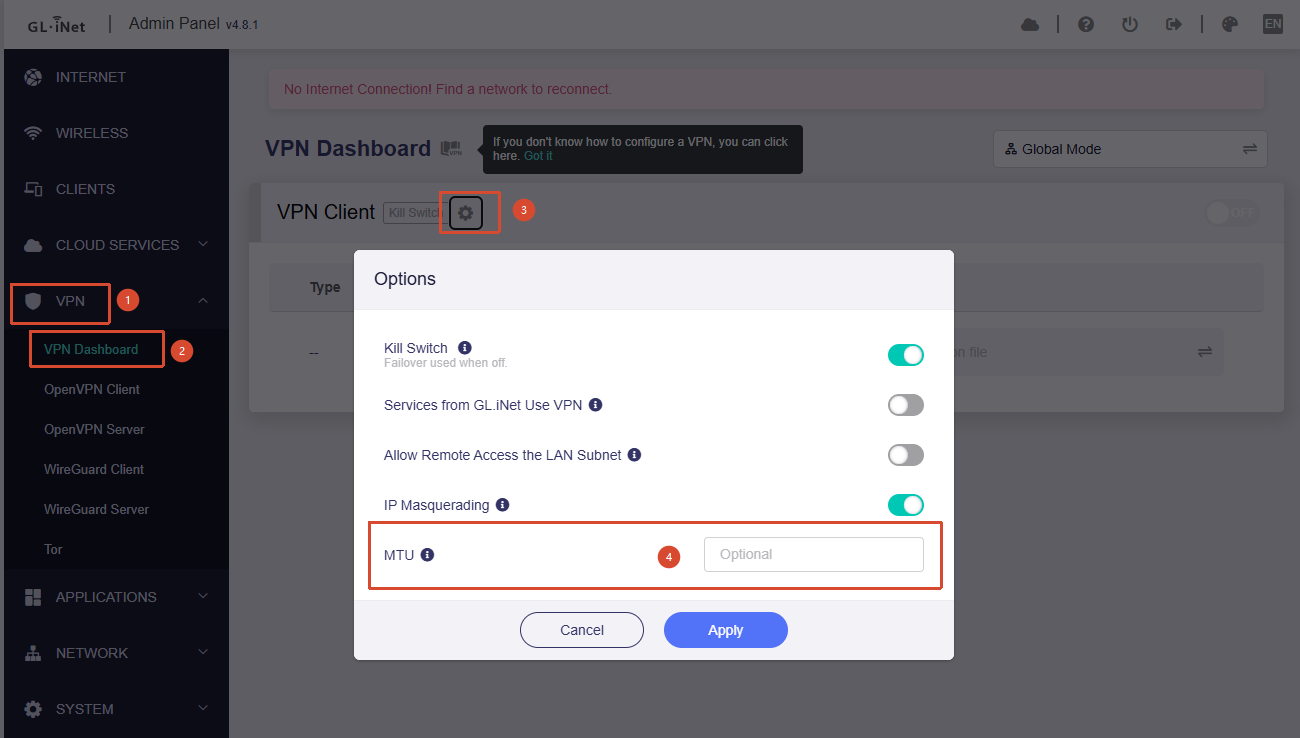

  1. Go to Admin Panel → VPN → VPN Dashboard and change the MTU to 1280.

    image1300×738 43.6 KB

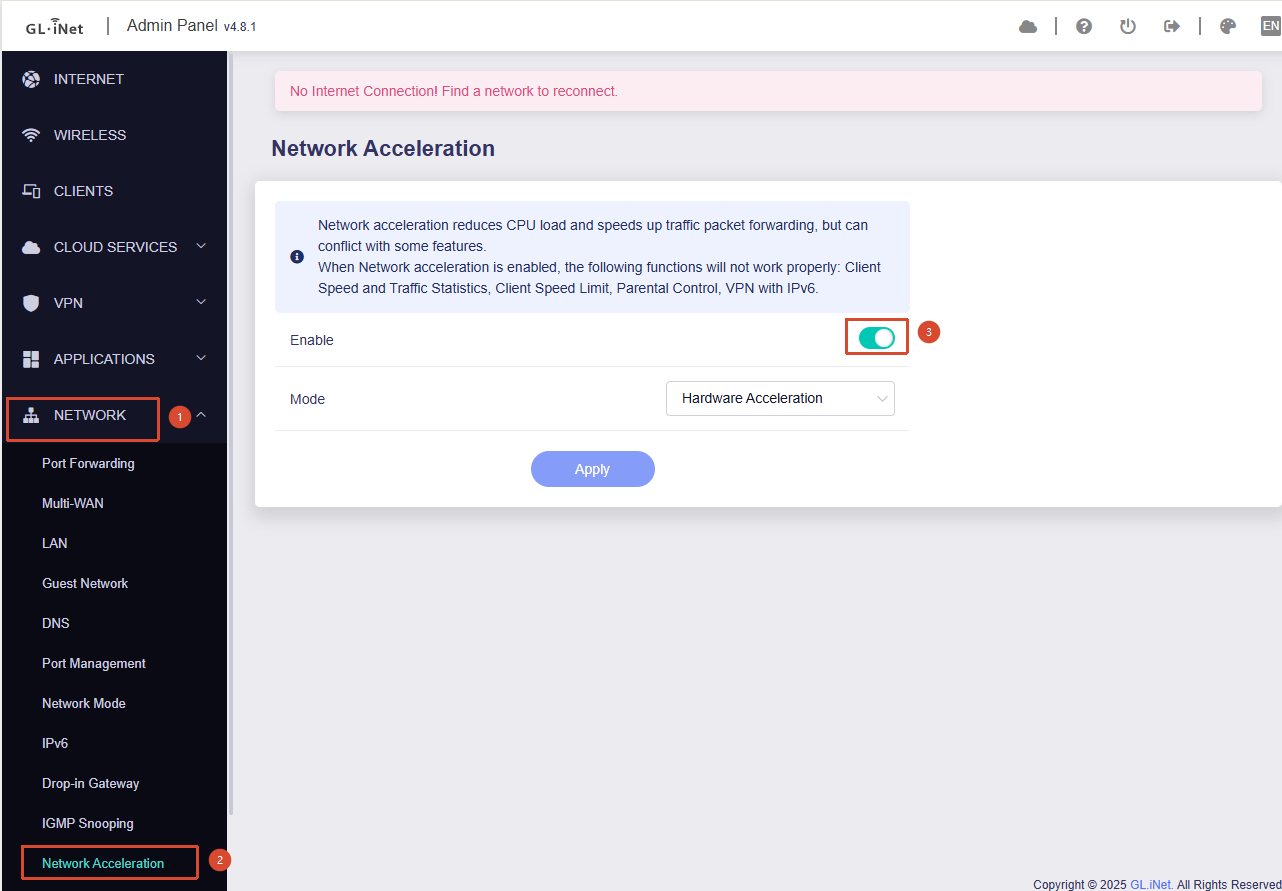

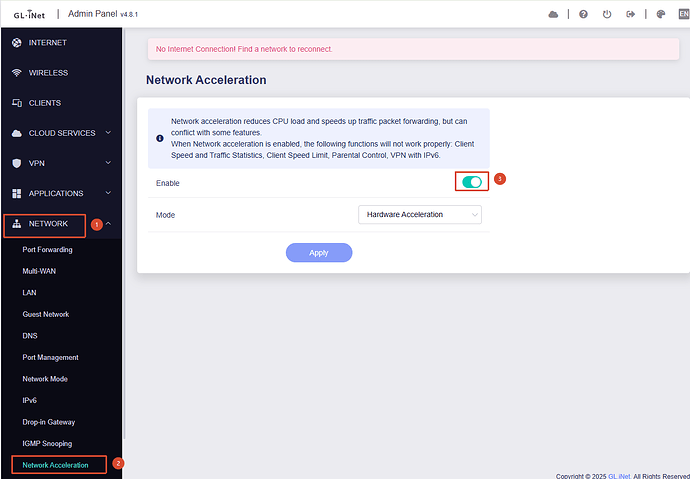

  2. Go to Network → Network Acceleration and try enabling/disabling it to see whether there is any difference.

    image1282×891 38.5 KB

  3. If you connect using a wired device, does the same issue still occur?
