you can try following command
erase 0x9FFF0000 +0xffff; cp.b 0x80800000 0x9FFF0000 0xffff
you can try following command
erase 0x9FFF0000 +0xffff; cp.b 0x80800000 0x9FFF0000 0xffff
Nop. Bricked again. Restoring 3, 2, 1…
I forgot to tell you to perform the previous steps.
tftp 0x80800000 art.bin
erase 0x9FFF0000 +0x10000
cp.b 0x80800000 0x9FFF0000 0xffff
Don’t worry, I did it first! I will try again today.
Hi Jichef,
can you give some hints how you have flashed the without desoldering the flash and with a raspberry?
Thanks in advance
Kai
Ey! Sorry, I couldn’t write you. I didn’t used a raspberry. I bought a chip programmer. and flashed a bin
Ok, nice job man !
but stil you have problem about speed limits with 2.4Ghz ?
in repeater mode gl ar 300 goes under 10Mbs actually the internet connection is around 1000Mbs
Why^

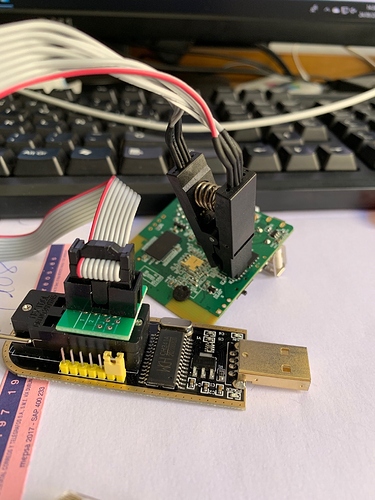

Is this a: CH341A 24 25 Series EEPROM Flasher BIOS USB Programmer
You used?
Yes, the kit with the test clip. Not all sellers include it.
I have ordered one on EBAY, in the picture the clip is there I just have to wait until it arrives.
What software did you used to flash the chip?
I will try to get a backup of the now brocken chip first to see what I damaged
I uploaded the one i use here:
https://filebin.net/knu1obqw4lqrfyjo/CH341A_programm_v1.34.7z?t=5apgmm46
Checked the last update, my two bricked ar300m are fully working now. Anyway, they can’t be on the same network because they have the same Mac. In addition, the can’t be controlled using the app glinet for mobile. Anyway, the important thing: they are working with speeds: 40-50 download and 90-95 for upload. In repeater mode (connected with a LAN; I mean, it take the signal and get the internet through the LAN). With the test wifi-wifi I am getting 16/10 speeds.
The MAC addr’s is in the ART partition, if I recall correctly…
Yes, but one of the two routers was corrupted and I cloned it. I dont know how to change it without flashing.
When clobbering the ART - not just losing the MAC addr, you also lost the RF cal for WiFi…
ART - Atheros Radio Test
Ok. I dont understand what you say, but it doesnt sound good. Anyway, it works better than in a box
