Brume 3 setup

[charles2]

Hi,

Thanks for the detailed description.

For your current setup, separating the two LAN ports into different VLAN/interfaces is a simple and straightforward way to achieve this.

You can refer to the following Brume 3 configuration example for the VLAN and firewall setup:

How do I add a VLAN with internet access to LAN port 2 on my Brume 3?

Hi, Please follow the steps below: Go to LuCI → Network → Switch and assign different VLAN IDs to LAN 1 and LAN 2: [image] Go to LuCI → Network → Interfaces → Devices and create a new bridge for LAN 2: [image] [image] Go to LuCI → Network → Interfaces → Interfaces and configure the new bridge created in the previous step by assigning an IP address, enabling DHCP, and creating a new firewall zone: [image] [image] [image] [image] [image] [image] Go to LuCI → Network → …

How do I add a VLAN with internet access to LAN port 2 on my Brume 3?

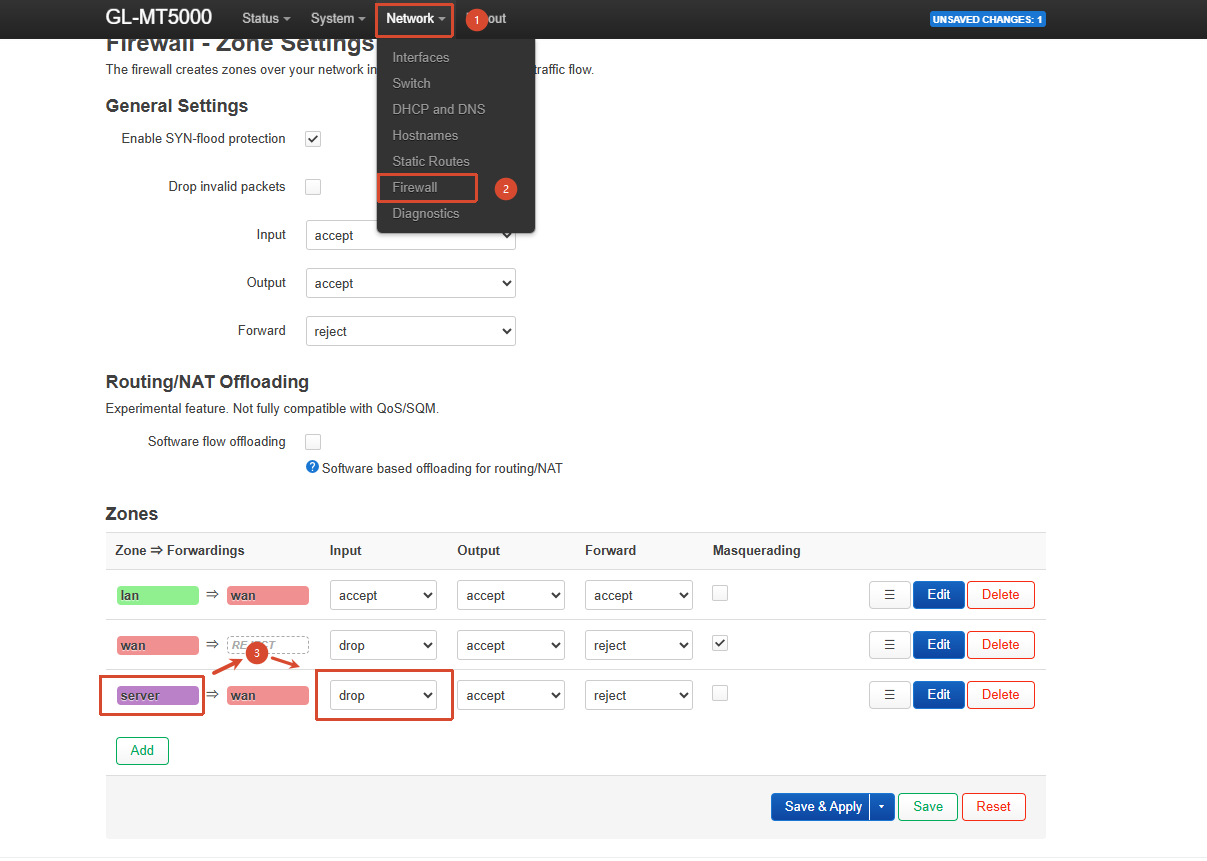

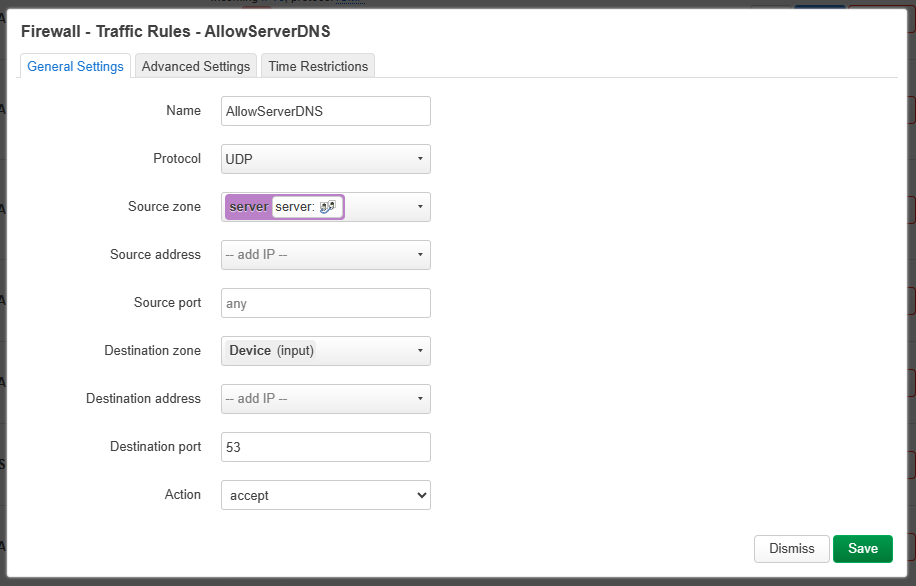

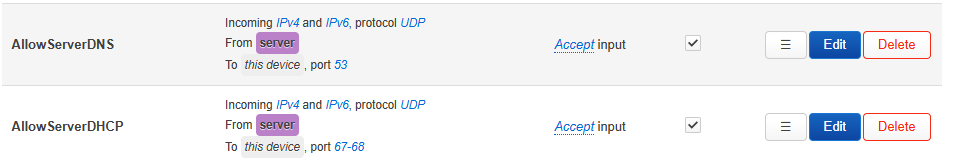

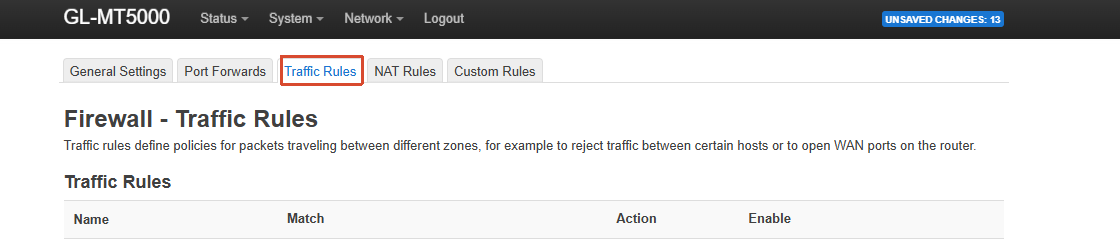

Hi, If you want to use the created network (VLAN) together with VPN, you also need to add this network to the VPN policy control scope as follows: To prevent devices on this network from accessing Brume 3 itself, you need to adjust the firewall settings: Go to LuCI → Network → Firewall and change the default INPUT policy of the firewall zone assigned to this network to DROP: [image] Add Traffic Rules to allow DHCP and DNS requests from this network to Brume 3: [image] [image] [ima…
