Almost no one has any 4x4 devices. Even most NICs for a desktop PC are 2x2. Most IoT devices have 1 stream. The strength "bars" on devices are not a precise way to measure. It is better to measure in dBm with equipment so it is truly accurate, And I would suggest to not use auto channel, pick the same channel on the routers when you test so you can accurately compare routers. If you are using DFS channels (or auto select a DFS channel), you won't get the full bandwidth as any router will not give the full channel width on 5 GHz when the router detects "radar" devices. Even in areas with no airports or weather equipment, it is really common for the router to not use 160 MHz in the DFS channels.
You can find the firmware in GL.iNet download center | GL-BE9300 Flint 3
It seems there is a more up-to-date firmware here:
1 Like
Try manually select the exact same channel as Flint 2 has auto selected. Sometimes auto channel selection can be finicky and may not find the cleanest channel.
received mine with 4.7.11 firmware (latest stable), wired LAN upload / download speed with NAT is limited to 470Mbps, hardware / software / off acceleration makes no difference on speed or CPU utilization (<0.5 at peak) and I can see the first hop latency going up to 10ms. The network performance is quite disappointing, such low throughput makes wifi 7 pointless
Try 4.7.13
It is no longer available. When will it be officially released with automatic download?
Also, if I remember correctly, this firmware solves the problem of installing the QoS plugin.
That's the file I downloaded six days ago.
| openwrt-be9300-4.7.13-0620-1750395297.bin | MD5 | 0ED6ECC1E49CA9E79FCAB9891FF5AABC |
|---|---|---|
| openwrt-be9300-4.7.13-0620-1750395297.bin | SHA-1 | 2B1E6432DD58904ED15B5ED6353308FA66A1A521 |
| openwrt-be9300-4.7.13-0620-1750395297.bin | SHA-256 | C311C7DEBEFAECAC688020BC779EDBFAD650D703C2731E73C28C5F5818745843 |
| openwrt-be9300-4.7.13-0620-1750395297.bin | SHA-512 | E81ADADC17B12F6A0BD1F18F98775F631B9450EBD67B658AB27B5F9E0F030468F7E6E61C3D3705C1825B185BDB4A1503E8A5F5AC19B3A74995BB22FA5ADAB696 |
3 Likes
Thank you for sharing!
1 Like
Have been seeing some kernel crashes with stack traces, but haven’t pinned down why.
[15607.799202] WARNING: CPU: 0 PID: 20969 at kernel/workqueue.c:3049 __flush_work.isra.0+0x4c/0x1a0
[15607.802840] Modules linked in: ecm_wifi_plugin ath_pktlog(P) monitor wifi_3_0 smart_antenna(P) qca_ol qca_spectral telemetry_agent umac qdf ecm_ovs ecm qca8k option usb_wwan rndis_host qmi_wwan nft_fib_inet nf_flow_table_ipv6 nf_flow_table_ipv4 nf_flow_table_inet ipt_REJECT huawei_cdc_ncm cdc_ncm cdc_ether xt_time xt_tcpudp xt_tcpmss xt_string xt_statistic xt_state xt_recent xt_quota xt_policy xt_pkttype xt_physdev xt_owner xt_nat xt_multiport xt_mark xt_mac xt_limit xt_length xt_hl xt_helper xt_esp xt_ecn xt_dscp xt_conntrack xt_connmark xt_connlimit xt_connbytes xt_comment xt_cgroup xt_bpf xt_addrtype xt_TPROXY xt_TCPMSS xt_REDIRECT xt_NETMAP xt_MASQUERADE xt_LOG xt_HL xt_DSCP xt_CT xt_CLASSIFY wireguard usbserial usbnet ums_usbat ums_sddr55 ums_sddr09 ums_karma ums_jumpshot ums_isd200 ums_freecom ums_datafab ums_cypress ums_alauda ts_fsm ts_bm sch_red sch_prio sch_pie sch_cake mem_manager rtl8372n_sw ppp_mppe ppp_async nft_tproxy nft_socket nft_reject_ipv6 nft_reject_ipv4
[15607.802982] nft_reject_inet nft_reject nft_redir nft_quota nft_objref nft_numgen nft_nat nft_masq nft_log nft_limit nft_hash nft_fwd_netdev nft_flow_offload nft_fib_ipv6 nft_fib_ipv4 nft_fib nft_dup_netdev nft_ct nft_counter nft_compat nft_chain_nat nf_tproxy_ipv6 nf_tproxy_ipv4 nf_tables_set nf_tables nf_socket_ipv6 nf_socket_ipv4 nf_reject_ipv4 nf_nat_tftp nf_nat_snmp_basic nf_nat_rtsp nf_nat_pptp nf_nat_irc nf_nat_h323 nf_nat_ftp nf_nat_amanda nf_log_ipv6 nf_log_ipv4 nf_log_common nf_flow_table nf_dup_netdev nf_conntrack_tftp nf_conntrack_snmp nf_conntrack_rtsp nf_conntrack_rtcache nf_conntrack_pptp nf_conntrack_netlink nf_conntrack_irc nf_conntrack_h323 nf_conntrack_ftp nf_conntrack_broadcast ts_kmp nf_conntrack_amanda macvlan ipt_ah ipt_ECN ipheth ip6_tables ip_tables cdc_wdm cdc_acm arptable_filter arpt_mangle arp_tables act_police act_ipt phy_qca_uniphy phy_qca_m31 dwc3 dwc3_qcom fuse sch_teql sch_sfq sch_multiq sch_gred sch_fq sch_codel em_text em_nbyte em_meta em_cmp act_simple
[15607.875692] act_pedit act_csum act_connmark sch_tbf sch_htb sch_hfsc em_u32 cls_u32 cls_route cls_matchall cls_fw cls_flow cls_basic act_skbedit act_mirred act_gact pwm_fan hwmon qca_nss_ppe_tunipip6 qca_nss_ppe_vxlanmgr qca_nss_ppe_netlink qca_nss_ppe_mapt qca_nss_ppe_l2tp l2tp_ppp qca_nss_ppe_gretap qca_nss_ppe_tun g_diag qca_nss_ppe_qdisc qca_nss_ppe_lag qca_nss_ppe_bridge_mgr qca_nss_macsec qca_nss_eip qca_mcs diagchar usb_f_diag crc_ccitt qca_nss_ppe_vlan qca_nss_ppe_pppoe_mgr qca_nss_ppe_ds libcomposite qca_ovsmgr openvswitch nf_conncount nf_nat nf_conntrack pptp nf_defrag_ipv4 libcrc32c xt_sctp emesh_sp xt_set ip_set_list_set ip_set_hash_netportnet ip_set_hash_netport ip_set_hash_netnet ip_set_hash_netiface ip_set_hash_net ip_set_hash_mac ip_set_hash_ipportnet ip_set_hash_ipportip ip_set_hash_ipport ip_set_hash_ipmark ip_set_hash_ipmac ip_set_hash_ip ip_set_bitmap_port ip_set_bitmap_ipmac ip_set_bitmap_ip ip_set nfnetlink ip6t_NPT ip6t_REJECT x_tables nf_reject_ipv6 msdos ip6_gre
[15607.963018] ip_gre gre ifb l2tp_ip6 l2tp_ip l2tp_eth sit l2tp_netlink l2tp_core ipcomp6 xfrm6_tunnel esp6 ah6 xfrm4_tunnel ipcomp esp4 ah4 ip6_tunnel tunnel6 tunnel4 udp_diag tcp_diag raw_diag inet_diag veth tun ovpn_dco_v2 mpls_iptunnel mpls_router ip_tunnel mpls_gso xfrm_user xfrm_ipcomp af_key xfrm_algo ntfs qca_nss_ppe_vp qca_nss_dp cfg80211 nls_utf8 nls_iso8859_1 nls_cp437 vxlan udp_tunnel ip6_udp_tunnel nsh qca_nss_sfe pppoe qca_nss_ppe_rule qca_nss_ppe pppox ppp_generic nat46 slhc nf_defrag_ipv6 crypto_user algif_skcipher algif_rng algif_hash algif_aead af_alg md5 chacha20poly1305 qca_ssdk bonding mtdoops ipq_cnss2 uas usb_storage libchacha20poly1305 chacha_neon poly1305_neon libchacha block2mtd gl_fan_driver leds_gpio bootconfig xhci_plat_hcd xhci_pci xhci_hcd ahci libahci libata sd_mod scsi_mod kmwan gpio_button_hotplug gl_sdk4_tertf gl_repeater gl_sdk4_black_white_list vfat fat f2fs exfat(C) button_hotplug input_core udc_core usbcore nls_base usb_common mii crc32_generic
[15608.050462] gl_sdk4_hw_info [last unloaded: qdf]
[15608.159613] CPU: 0 PID: 20969 Comm: nft Tainted: P WC 5.4.213 #0
[15608.164212] Hardware name: GL.iNet BE9300, Inc. IPQ5332/AP-MI01.6 (DT)
[15608.171330] pstate: 60400005 (nZCv daif +PAN -UAO)
[15608.177845] pc : __flush_work.isra.0+0x4c/0x1a0
[15608.182611] lr : flush_work+0xc/0x14
[15608.187035] sp : ffffff8035fff770
[15608.190855] x29: ffffff8035fff770 x28: ffffffc010ad0080
[15608.194068] x27: ffffffc009491980 x26: ffffff80200ede00
[15608.199450] x25: ffffff801f26c448 x24: 0000000000000001
[15608.204746] x23: ffffffc010b08288 x22: ffffffc009f32000
[15608.210041] x21: ffffff802f2e9b00 x20: ffffffc00942e000
[15608.215336] x19: ffffffc00942e380 x18: 0000000000000000
[15608.220631] x17: 0000000000000000 x16: 0000000000000000
[15608.225926] x15: 0000000000000000 x14: 0000000000000000
[15608.231221] x13: 0000000000000000 x12: 0000000000000030
[15608.236516] x11: 0000000000000000 x10: ffffff801f26c458
[15608.241811] x9 : 0000000000000040 x8 : 0000000000000000
[15608.247107] x7 : ffffff801cb18000 x6 : ffffffc00942e000
[15608.252402] x5 : 0000000000000000 x4 : 0000000000000000
[15608.257696] x3 : ffffff803b7e5940 x2 : 0000000000000000
[15608.262992] x1 : 0000000000000000 x0 : 0000000000000000
[15608.268289] Call trace:
[15608.273584] __flush_work.isra.0+0x4c/0x1a0
[15608.275753] flush_work+0xc/0x14
[15608.279925] nf_flow_table_free+0x94/0xc0 [nf_flow_table]
[15608.283399] nft_data_init+0x1034/0x2990 [nf_tables]
[15608.288691] nfnetlink_unicast+0x7a4/0xb44 [nfnetlink]
[15608.293723] nfnetlink_unicast+0xb00/0xb44 [nfnetlink]
[15608.298673] netlink_unicast+0x150/0x23c
[15608.303791] netlink_sendmsg+0x32c/0x3b0
[15608.307874] sock_sendmsg+0x18/0x2c
[15608.311777] ____sys_sendmsg+0x2d4/0x364
[15608.314989] ___sys_sendmsg+0x8c/0xcc
[15608.319156] __sys_sendmsg+0x64/0xb0
[15608.322716] __arm64_sys_sendmsg+0x1c/0x24
[15608.326363] el0_svc_common.constprop.0+0x94/0x110
[15608.330268] el0_svc_handler+0x18/0x20
[15608.335041] el0_svc+0x8/0x500
[15608.338771] ---[ end trace ffd34edda7232bb2 ]---
[17263.419172] rtl8372-mdio 90000.mdio:1d: lan1 link down
[19372.625377] nf_conntrack: default automatic helper assignment has been turned off for security reasons and CT-based firewall rule not found. Use the iptables CT target to attach helpers instead.
[25725.321549] ------------[ cut here ]------------
[25725.321590] WARNING: CPU: 0 PID: 31240 at kernel/workqueue.c:3049 __flush_work.isra.0+0x4c/0x1a0
[25725.325227] Modules linked in: ecm_wifi_plugin ath_pktlog(P) monitor wifi_3_0 smart_antenna(P) qca_ol qca_spectral telemetry_agent umac qdf ecm_ovs ecm qca8k option usb_wwan rndis_host qmi_wwan nft_fib_inet nf_flow_table_ipv6 nf_flow_table_ipv4 nf_flow_table_inet ipt_REJECT huawei_cdc_ncm cdc_ncm cdc_ether xt_time xt_tcpudp xt_tcpmss xt_string xt_statistic xt_state xt_recent xt_quota xt_policy xt_pkttype xt_physdev xt_owner xt_nat xt_multiport xt_mark xt_mac xt_limit xt_length xt_hl xt_helper xt_esp xt_ecn xt_dscp xt_conntrack xt_connmark xt_connlimit xt_connbytes xt_comment xt_cgroup xt_bpf xt_addrtype xt_TPROXY xt_TCPMSS xt_REDIRECT xt_NETMAP xt_MASQUERADE xt_LOG xt_HL xt_DSCP xt_CT xt_CLASSIFY wireguard usbserial usbnet ums_usbat ums_sddr55 ums_sddr09 ums_karma ums_jumpshot ums_isd200 ums_freecom ums_datafab ums_cypress ums_alauda ts_fsm ts_bm sch_red sch_prio sch_pie sch_cake mem_manager rtl8372n_sw ppp_mppe ppp_async nft_tproxy nft_socket nft_reject_ipv6 nft_reject_ipv4
[25725.325373] nft_reject_inet nft_reject nft_redir nft_quota nft_objref nft_numgen nft_nat nft_masq nft_log nft_limit nft_hash nft_fwd_netdev nft_flow_offload nft_fib_ipv6 nft_fib_ipv4 nft_fib nft_dup_netdev nft_ct nft_counter nft_compat nft_chain_nat nf_tproxy_ipv6 nf_tproxy_ipv4 nf_tables_set nf_tables nf_socket_ipv6 nf_socket_ipv4 nf_reject_ipv4 nf_nat_tftp nf_nat_snmp_basic nf_nat_rtsp nf_nat_pptp nf_nat_irc nf_nat_h323 nf_nat_ftp nf_nat_amanda nf_log_ipv6 nf_log_ipv4 nf_log_common nf_flow_table nf_dup_netdev nf_conntrack_tftp nf_conntrack_snmp nf_conntrack_rtsp nf_conntrack_rtcache nf_conntrack_pptp nf_conntrack_netlink nf_conntrack_irc nf_conntrack_h323 nf_conntrack_ftp nf_conntrack_broadcast ts_kmp nf_conntrack_amanda macvlan ipt_ah ipt_ECN ipheth ip6_tables ip_tables cdc_wdm cdc_acm arptable_filter arpt_mangle arp_tables act_police act_ipt phy_qca_uniphy phy_qca_m31 dwc3 dwc3_qcom fuse sch_teql sch_sfq sch_multiq sch_gred sch_fq sch_codel em_text em_nbyte em_meta em_cmp act_simple
[25725.398078] act_pedit act_csum act_connmark sch_tbf sch_htb sch_hfsc em_u32 cls_u32 cls_route cls_matchall cls_fw cls_flow cls_basic act_skbedit act_mirred act_gact pwm_fan hwmon qca_nss_ppe_tunipip6 qca_nss_ppe_vxlanmgr qca_nss_ppe_netlink qca_nss_ppe_mapt qca_nss_ppe_l2tp l2tp_ppp qca_nss_ppe_gretap qca_nss_ppe_tun g_diag qca_nss_ppe_qdisc qca_nss_ppe_lag qca_nss_ppe_bridge_mgr qca_nss_macsec qca_nss_eip qca_mcs diagchar usb_f_diag crc_ccitt qca_nss_ppe_vlan qca_nss_ppe_pppoe_mgr qca_nss_ppe_ds libcomposite qca_ovsmgr openvswitch nf_conncount nf_nat nf_conntrack pptp nf_defrag_ipv4 libcrc32c xt_sctp emesh_sp xt_set ip_set_list_set ip_set_hash_netportnet ip_set_hash_netport ip_set_hash_netnet ip_set_hash_netiface ip_set_hash_net ip_set_hash_mac ip_set_hash_ipportnet ip_set_hash_ipportip ip_set_hash_ipport ip_set_hash_ipmark ip_set_hash_ipmac ip_set_hash_ip ip_set_bitmap_port ip_set_bitmap_ipmac ip_set_bitmap_ip ip_set nfnetlink ip6t_NPT ip6t_REJECT x_tables nf_reject_ipv6 msdos ip6_gre
[25725.485401] ip_gre gre ifb l2tp_ip6 l2tp_ip l2tp_eth sit l2tp_netlink l2tp_core ipcomp6 xfrm6_tunnel esp6 ah6 xfrm4_tunnel ipcomp esp4 ah4 ip6_tunnel tunnel6 tunnel4 udp_diag tcp_diag raw_diag inet_diag veth tun ovpn_dco_v2 mpls_iptunnel mpls_router ip_tunnel mpls_gso xfrm_user xfrm_ipcomp af_key xfrm_algo ntfs qca_nss_ppe_vp qca_nss_dp cfg80211 nls_utf8 nls_iso8859_1 nls_cp437 vxlan udp_tunnel ip6_udp_tunnel nsh qca_nss_sfe pppoe qca_nss_ppe_rule qca_nss_ppe pppox ppp_generic nat46 slhc nf_defrag_ipv6 crypto_user algif_skcipher algif_rng algif_hash algif_aead af_alg md5 chacha20poly1305 qca_ssdk bonding mtdoops ipq_cnss2 uas usb_storage libchacha20poly1305 chacha_neon poly1305_neon libchacha block2mtd gl_fan_driver leds_gpio bootconfig xhci_plat_hcd xhci_pci xhci_hcd ahci libahci libata sd_mod scsi_mod kmwan gpio_button_hotplug gl_sdk4_tertf gl_repeater gl_sdk4_black_white_list vfat fat f2fs exfat(C) button_hotplug input_core udc_core usbcore nls_base usb_common mii crc32_generic
[25725.572849] gl_sdk4_hw_info [last unloaded: qdf]
[25725.681999] CPU: 0 PID: 31240 Comm: nft Tainted: P WC 5.4.213 #0
[25725.686597] Hardware name: GL.iNet BE9300, Inc. IPQ5332/AP-MI01.6 (DT)
[25725.693717] pstate: 60400005 (nZCv daif +PAN -UAO)
[25725.700230] pc : __flush_work.isra.0+0x4c/0x1a0
[25725.704998] lr : flush_work+0xc/0x14
[25725.709422] sp : ffffff80349f7770
[25725.713241] x29: ffffff80349f7770 x28: ffffffc010ad0080
[25725.716455] x27: ffffffc009491980 x26: ffffff80375ae600
[25725.721837] x25: ffffff802e25da48 x24: 0000000000000001
[25725.727131] x23: ffffffc010b08288 x22: ffffffc009f32000
[25725.732426] x21: ffffff803b090600 x20: ffffffc00942e000
[25725.737723] x19: ffffffc00942e380 x18: 0000000000000000
[25725.743018] x17: 0000000000000000 x16: 0000000000000000
[25725.748312] x15: 0000000000000000 x14: 0000000000000000
[25725.753608] x13: 0000000000000000 x12: 0000000000000030
[25725.758903] x11: 0000000000000000 x10: ffffff802e25da58
[25725.764198] x9 : 0000000000000040 x8 : 0000000000000000
[25725.769494] x7 : ffffff8018e20c00 x6 : ffffffc00942e000
[25725.774788] x5 : 0000000000000000 x4 : 0000000000000000
[25725.780083] x3 : ffffff8034e60000 x2 : 0000000000000000
[25725.785378] x1 : 0000000000000000 x0 : 0000000000000000
[25725.790675] Call trace:
[25725.795970] __flush_work.isra.0+0x4c/0x1a0
[25725.798139] flush_work+0xc/0x14
[25725.802311] nf_flow_table_free+0x94/0xc0 [nf_flow_table]
[25725.805787] nft_data_init+0x1034/0x2990 [nf_tables]
[25725.811078] nfnetlink_unicast+0x7a4/0xb44 [nfnetlink]
[25725.816111] nfnetlink_unicast+0xb00/0xb44 [nfnetlink]
[25725.821060] netlink_unicast+0x150/0x23c
[25725.826177] netlink_sendmsg+0x32c/0x3b0
[25725.830260] sock_sendmsg+0x18/0x2c
[25725.834164] ____sys_sendmsg+0x2d4/0x364
[25725.837376] ___sys_sendmsg+0x8c/0xcc
[25725.841542] __sys_sendmsg+0x64/0xb0
[25725.845102] __arm64_sys_sendmsg+0x1c/0x24
[25725.848750] el0_svc_common.constprop.0+0x94/0x110
[25725.852655] el0_svc_handler+0x18/0x20
[25725.857427] el0_svc+0x8/0x500
[25725.861158] ---[ end trace ffd34edda7232bb3 ]---
[25728.850552] ------------[ cut here ]------------
[25728.850592] WARNING: CPU: 3 PID: 31993 at kernel/workqueue.c:3049 __flush_work.isra.0+0x4c/0x1a0
[25728.854229] Modules linked in: ecm_wifi_plugin ath_pktlog(P) monitor wifi_3_0 smart_antenna(P) qca_ol qca_spectral telemetry_agent umac qdf ecm_ovs ecm qca8k option usb_wwan rndis_host qmi_wwan nft_fib_inet nf_flow_table_ipv6 nf_flow_table_ipv4 nf_flow_table_inet ipt_REJECT huawei_cdc_ncm cdc_ncm cdc_ether xt_time xt_tcpudp xt_tcpmss xt_string xt_statistic xt_state xt_recent xt_quota xt_policy xt_pkttype xt_physdev xt_owner xt_nat xt_multiport xt_mark xt_mac xt_limit xt_length xt_hl xt_helper xt_esp xt_ecn xt_dscp xt_conntrack xt_connmark xt_connlimit xt_connbytes xt_comment xt_cgroup xt_bpf xt_addrtype xt_TPROXY xt_TCPMSS xt_REDIRECT xt_NETMAP xt_MASQUERADE xt_LOG xt_HL xt_DSCP xt_CT xt_CLASSIFY wireguard usbserial usbnet ums_usbat ums_sddr55 ums_sddr09 ums_karma ums_jumpshot ums_isd200 ums_freecom ums_datafab ums_cypress ums_alauda ts_fsm ts_bm sch_red sch_prio sch_pie sch_cake mem_manager rtl8372n_sw ppp_mppe ppp_async nft_tproxy nft_socket nft_reject_ipv6 nft_reject_ipv4
[25728.854344] nft_reject_inet nft_reject nft_redir nft_quota nft_objref nft_numgen nft_nat nft_masq nft_log nft_limit nft_hash nft_fwd_netdev nft_flow_offload nft_fib_ipv6 nft_fib_ipv4 nft_fib nft_dup_netdev nft_ct nft_counter nft_compat nft_chain_nat nf_tproxy_ipv6 nf_tproxy_ipv4 nf_tables_set nf_tables nf_socket_ipv6 nf_socket_ipv4 nf_reject_ipv4 nf_nat_tftp nf_nat_snmp_basic nf_nat_rtsp nf_nat_pptp nf_nat_irc nf_nat_h323 nf_nat_ftp nf_nat_amanda nf_log_ipv6 nf_log_ipv4 nf_log_common nf_flow_table nf_dup_netdev nf_conntrack_tftp nf_conntrack_snmp nf_conntrack_rtsp nf_conntrack_rtcache nf_conntrack_pptp nf_conntrack_netlink nf_conntrack_irc nf_conntrack_h323 nf_conntrack_ftp nf_conntrack_broadcast ts_kmp nf_conntrack_amanda macvlan ipt_ah ipt_ECN ipheth ip6_tables ip_tables cdc_wdm cdc_acm arptable_filter arpt_mangle arp_tables act_police act_ipt phy_qca_uniphy phy_qca_m31 dwc3 dwc3_qcom fuse sch_teql sch_sfq sch_multiq sch_gred sch_fq sch_codel em_text em_nbyte em_meta em_cmp act_simple
[25728.927056] act_pedit act_csum act_connmark sch_tbf sch_htb sch_hfsc em_u32 cls_u32 cls_route cls_matchall cls_fw cls_flow cls_basic act_skbedit act_mirred act_gact pwm_fan hwmon qca_nss_ppe_tunipip6 qca_nss_ppe_vxlanmgr qca_nss_ppe_netlink qca_nss_ppe_mapt qca_nss_ppe_l2tp l2tp_ppp qca_nss_ppe_gretap qca_nss_ppe_tun g_diag qca_nss_ppe_qdisc qca_nss_ppe_lag qca_nss_ppe_bridge_mgr qca_nss_macsec qca_nss_eip qca_mcs diagchar usb_f_diag crc_ccitt qca_nss_ppe_vlan qca_nss_ppe_pppoe_mgr qca_nss_ppe_ds libcomposite qca_ovsmgr openvswitch nf_conncount nf_nat nf_conntrack pptp nf_defrag_ipv4 libcrc32c xt_sctp emesh_sp xt_set ip_set_list_set ip_set_hash_netportnet ip_set_hash_netport ip_set_hash_netnet ip_set_hash_netiface ip_set_hash_net ip_set_hash_mac ip_set_hash_ipportnet ip_set_hash_ipportip ip_set_hash_ipport ip_set_hash_ipmark ip_set_hash_ipmac ip_set_hash_ip ip_set_bitmap_port ip_set_bitmap_ipmac ip_set_bitmap_ip ip_set nfnetlink ip6t_NPT ip6t_REJECT x_tables nf_reject_ipv6 msdos ip6_gre
[25729.014375] ip_gre gre ifb l2tp_ip6 l2tp_ip l2tp_eth sit l2tp_netlink l2tp_core ipcomp6 xfrm6_tunnel esp6 ah6 xfrm4_tunnel ipcomp esp4 ah4 ip6_tunnel tunnel6 tunnel4 udp_diag tcp_diag raw_diag inet_diag veth tun ovpn_dco_v2 mpls_iptunnel mpls_router ip_tunnel mpls_gso xfrm_user xfrm_ipcomp af_key xfrm_algo ntfs qca_nss_ppe_vp qca_nss_dp cfg80211 nls_utf8 nls_iso8859_1 nls_cp437 vxlan udp_tunnel ip6_udp_tunnel nsh qca_nss_sfe pppoe qca_nss_ppe_rule qca_nss_ppe pppox ppp_generic nat46 slhc nf_defrag_ipv6 crypto_user algif_skcipher algif_rng algif_hash algif_aead af_alg md5 chacha20poly1305 qca_ssdk bonding mtdoops ipq_cnss2 uas usb_storage libchacha20poly1305 chacha_neon poly1305_neon libchacha block2mtd gl_fan_driver leds_gpio bootconfig xhci_plat_hcd xhci_pci xhci_hcd ahci libahci libata sd_mod scsi_mod kmwan gpio_button_hotplug gl_sdk4_tertf gl_repeater gl_sdk4_black_white_list vfat fat f2fs exfat(C) button_hotplug input_core udc_core usbcore nls_base usb_common mii crc32_generic
[25729.101819] gl_sdk4_hw_info [last unloaded: qdf]
[25729.211000] CPU: 3 PID: 31993 Comm: nft Tainted: P WC 5.4.213 #0
[25729.215598] Hardware name: GL.iNet BE9300, Inc. IPQ5332/AP-MI01.6 (DT)
[25729.222718] pstate: 60400005 (nZCv daif +PAN -UAO)
[25729.229230] pc : __flush_work.isra.0+0x4c/0x1a0
[25729.233999] lr : flush_work+0xc/0x14
[25729.238424] sp : ffffff80349ef770
[25729.242243] x29: ffffff80349ef770 x28: ffffffc010ad0080
[25729.245457] x27: ffffffc009491980 x26: ffffff8037817700
[25729.250838] x25: ffffff800ef4f648 x24: 0000000000000001
[25729.256134] x23: ffffffc010b08288 x22: ffffffc009f32000
[25729.261429] x21: ffffff801d85e600 x20: ffffffc00942e000
[25729.266725] x19: ffffffc00942e380 x18: 0000000000000000
[25729.272019] x17: 0000000000000000 x16: 0000000000000000
[25729.277315] x15: 0000000000000000 x14: 0000000000000000
[25729.282609] x13: 0000000000000000 x12: 0000000000000030
[25729.287904] x11: 0000000000000000 x10: ffffff800ef4f658
[25729.293199] x9 : 0000000000000040 x8 : 0000000000000000
[25729.298494] x7 : ffffff801cb1a400 x6 : ffffffc00942e000
[25729.303790] x5 : 0000000000000000 x4 : 0000000000000000
[25729.309085] x3 : ffffff802e71b300 x2 : 0000000000000000
[25729.314381] x1 : 0000000000000000 x0 : 0000000000000000
[25729.319677] Call trace:
[25729.324971] __flush_work.isra.0+0x4c/0x1a0
[25729.327141] flush_work+0xc/0x14
[25729.331312] nf_flow_table_free+0x94/0xc0 [nf_flow_table]
[25729.334787] nft_data_init+0x1034/0x2990 [nf_tables]
[25729.340079] nfnetlink_unicast+0x7a4/0xb44 [nfnetlink]
[25729.345112] nfnetlink_unicast+0xb00/0xb44 [nfnetlink]
[25729.350061] netlink_unicast+0x150/0x23c
[25729.355180] netlink_sendmsg+0x32c/0x3b0
[25729.359262] sock_sendmsg+0x18/0x2c
[25729.363165] ____sys_sendmsg+0x2d4/0x364
[25729.366377] ___sys_sendmsg+0x8c/0xcc
[25729.370543] __sys_sendmsg+0x64/0xb0
[25729.374102] __arm64_sys_sendmsg+0x1c/0x24
[25729.377752] el0_svc_common.constprop.0+0x94/0x110
[25729.381656] el0_svc_handler+0x18/0x20
[25729.386429] el0_svc+0x8/0x500
[25729.390160] ---[ end trace ffd34edda7232bb4 ]---
[25848.832318] ------------[ cut here ]------------
[25848.832359] WARNING: CPU: 2 PID: 1403 at kernel/workqueue.c:3049 __flush_work.isra.0+0x4c/0x1a0
[25848.835996] Modules linked in: ecm_wifi_plugin ath_pktlog(P) monitor wifi_3_0 smart_antenna(P) qca_ol qca_spectral telemetry_agent umac qdf ecm_ovs ecm qca8k option usb_wwan rndis_host qmi_wwan nft_fib_inet nf_flow_table_ipv6 nf_flow_table_ipv4 nf_flow_table_inet ipt_REJECT huawei_cdc_ncm cdc_ncm cdc_ether xt_time xt_tcpudp xt_tcpmss xt_string xt_statistic xt_state xt_recent xt_quota xt_policy xt_pkttype xt_physdev xt_owner xt_nat xt_multiport xt_mark xt_mac xt_limit xt_length xt_hl xt_helper xt_esp xt_ecn xt_dscp xt_conntrack xt_connmark xt_connlimit xt_connbytes xt_comment xt_cgroup xt_bpf xt_addrtype xt_TPROXY xt_TCPMSS xt_REDIRECT xt_NETMAP xt_MASQUERADE xt_LOG xt_HL xt_DSCP xt_CT xt_CLASSIFY wireguard usbserial usbnet ums_usbat ums_sddr55 ums_sddr09 ums_karma ums_jumpshot ums_isd200 ums_freecom ums_datafab ums_cypress ums_alauda ts_fsm ts_bm sch_red sch_prio sch_pie sch_cake mem_manager rtl8372n_sw ppp_mppe ppp_async nft_tproxy nft_socket nft_reject_ipv6 nft_reject_ipv4
[25848.836139] nft_reject_inet nft_reject nft_redir nft_quota nft_objref nft_numgen nft_nat nft_masq nft_log nft_limit nft_hash nft_fwd_netdev nft_flow_offload nft_fib_ipv6 nft_fib_ipv4 nft_fib nft_dup_netdev nft_ct nft_counter nft_compat nft_chain_nat nf_tproxy_ipv6 nf_tproxy_ipv4 nf_tables_set nf_tables nf_socket_ipv6 nf_socket_ipv4 nf_reject_ipv4 nf_nat_tftp nf_nat_snmp_basic nf_nat_rtsp nf_nat_pptp nf_nat_irc nf_nat_h323 nf_nat_ftp nf_nat_amanda nf_log_ipv6 nf_log_ipv4 nf_log_common nf_flow_table nf_dup_netdev nf_conntrack_tftp nf_conntrack_snmp nf_conntrack_rtsp nf_conntrack_rtcache nf_conntrack_pptp nf_conntrack_netlink nf_conntrack_irc nf_conntrack_h323 nf_conntrack_ftp nf_conntrack_broadcast ts_kmp nf_conntrack_amanda macvlan ipt_ah ipt_ECN ipheth ip6_tables ip_tables cdc_wdm cdc_acm arptable_filter arpt_mangle arp_tables act_police act_ipt phy_qca_uniphy phy_qca_m31 dwc3 dwc3_qcom fuse sch_teql sch_sfq sch_multiq sch_gred sch_fq sch_codel em_text em_nbyte em_meta em_cmp act_simple
[25848.908760] act_pedit act_csum act_connmark sch_tbf sch_htb sch_hfsc em_u32 cls_u32 cls_route cls_matchall cls_fw cls_flow cls_basic act_skbedit act_mirred act_gact pwm_fan hwmon qca_nss_ppe_tunipip6 qca_nss_ppe_vxlanmgr qca_nss_ppe_netlink qca_nss_ppe_mapt qca_nss_ppe_l2tp l2tp_ppp qca_nss_ppe_gretap qca_nss_ppe_tun g_diag qca_nss_ppe_qdisc qca_nss_ppe_lag qca_nss_ppe_bridge_mgr qca_nss_macsec qca_nss_eip qca_mcs diagchar usb_f_diag crc_ccitt qca_nss_ppe_vlan qca_nss_ppe_pppoe_mgr qca_nss_ppe_ds libcomposite qca_ovsmgr openvswitch nf_conncount nf_nat nf_conntrack pptp nf_defrag_ipv4 libcrc32c xt_sctp emesh_sp xt_set ip_set_list_set ip_set_hash_netportnet ip_set_hash_netport ip_set_hash_netnet ip_set_hash_netiface ip_set_hash_net ip_set_hash_mac ip_set_hash_ipportnet ip_set_hash_ipportip ip_set_hash_ipport ip_set_hash_ipmark ip_set_hash_ipmac ip_set_hash_ip ip_set_bitmap_port ip_set_bitmap_ipmac ip_set_bitmap_ip ip_set nfnetlink ip6t_NPT ip6t_REJECT x_tables nf_reject_ipv6 msdos ip6_gre
[25848.996079] ip_gre gre ifb l2tp_ip6 l2tp_ip l2tp_eth sit l2tp_netlink l2tp_core ipcomp6 xfrm6_tunnel esp6 ah6 xfrm4_tunnel ipcomp esp4 ah4 ip6_tunnel tunnel6 tunnel4 udp_diag tcp_diag raw_diag inet_diag veth tun ovpn_dco_v2 mpls_iptunnel mpls_router ip_tunnel mpls_gso xfrm_user xfrm_ipcomp af_key xfrm_algo ntfs qca_nss_ppe_vp qca_nss_dp cfg80211 nls_utf8 nls_iso8859_1 nls_cp437 vxlan udp_tunnel ip6_udp_tunnel nsh qca_nss_sfe pppoe qca_nss_ppe_rule qca_nss_ppe pppox ppp_generic nat46 slhc nf_defrag_ipv6 crypto_user algif_skcipher algif_rng algif_hash algif_aead af_alg md5 chacha20poly1305 qca_ssdk bonding mtdoops ipq_cnss2 uas usb_storage libchacha20poly1305 chacha_neon poly1305_neon libchacha block2mtd gl_fan_driver leds_gpio bootconfig xhci_plat_hcd xhci_pci xhci_hcd ahci libahci libata sd_mod scsi_mod kmwan gpio_button_hotplug gl_sdk4_tertf gl_repeater gl_sdk4_black_white_list vfat fat f2fs exfat(C) button_hotplug input_core udc_core usbcore nls_base usb_common mii crc32_generic
[25849.083536] gl_sdk4_hw_info [last unloaded: qdf]
[25849.192681] CPU: 2 PID: 1403 Comm: nft Tainted: P WC 5.4.213 #0
[25849.197278] Hardware name: GL.iNet BE9300, Inc. IPQ5332/AP-MI01.6 (DT)
[25849.204399] pstate: 60400005 (nZCv daif +PAN -UAO)
[25849.210825] pc : __flush_work.isra.0+0x4c/0x1a0
[25849.215593] lr : flush_work+0xc/0x14
[25849.220016] sp : ffffff8034657770
[25849.223837] x29: ffffff8034657770 x28: ffffffc010ad0080
[25849.227051] x27: ffffffc009491980 x26: ffffff801f495e00
[25849.232432] x25: ffffff803b754e48 x24: 0000000000000001
[25849.237727] x23: ffffffc010b08288 x22: ffffffc009f32000
[25849.243023] x21: ffffff80352dbf00 x20: ffffffc00942e000
[25849.248317] x19: ffffffc00942e380 x18: 0000000000000000
[25849.253613] x17: 0000000000000000 x16: 0000000000000000
[25849.258908] x15: 0000000000000000 x14: 0000000000000000
[25849.264203] x13: 0000000000000000 x12: 0000000000000030
[25849.269497] x11: 0000000000000000 x10: ffffff803b754e58
[25849.274794] x9 : 0000000000000040 x8 : 0000000000000000
[25849.280089] x7 : ffffff801caaa400 x6 : ffffffc00942e000
[25849.285383] x5 : 0000000000000000 x4 : 0000000000000000
[25849.290678] x3 : ffffff803a181980 x2 : 0000000000000000
[25849.295973] x1 : 0000000000000000 x0 : 0000000000000000
[25849.301270] Call trace:
[25849.306565] __flush_work.isra.0+0x4c/0x1a0
[25849.308734] flush_work+0xc/0x14
[25849.312906] nf_flow_table_free+0x94/0xc0 [nf_flow_table]
[25849.316382] nft_data_init+0x1034/0x2990 [nf_tables]
[25849.321673] nfnetlink_unicast+0x7a4/0xb44 [nfnetlink]
[25849.326705] nfnetlink_unicast+0xb00/0xb44 [nfnetlink]
[25849.331656] netlink_unicast+0x150/0x23c
[25849.336773] netlink_sendmsg+0x32c/0x3b0
[25849.340855] sock_sendmsg+0x18/0x2c
[25849.344758] ____sys_sendmsg+0x2d4/0x364
[25849.347970] ___sys_sendmsg+0x8c/0xcc
[25849.352137] __sys_sendmsg+0x64/0xb0
[25849.355697] __arm64_sys_sendmsg+0x1c/0x24
[25849.359345] el0_svc_common.constprop.0+0x94/0x110
[25849.363249] el0_svc_handler+0x18/0x20
[25849.368022] el0_svc+0x8/0x500
[25849.371754] ---[ end trace ffd34edda7232bb5 ]---
Hi,

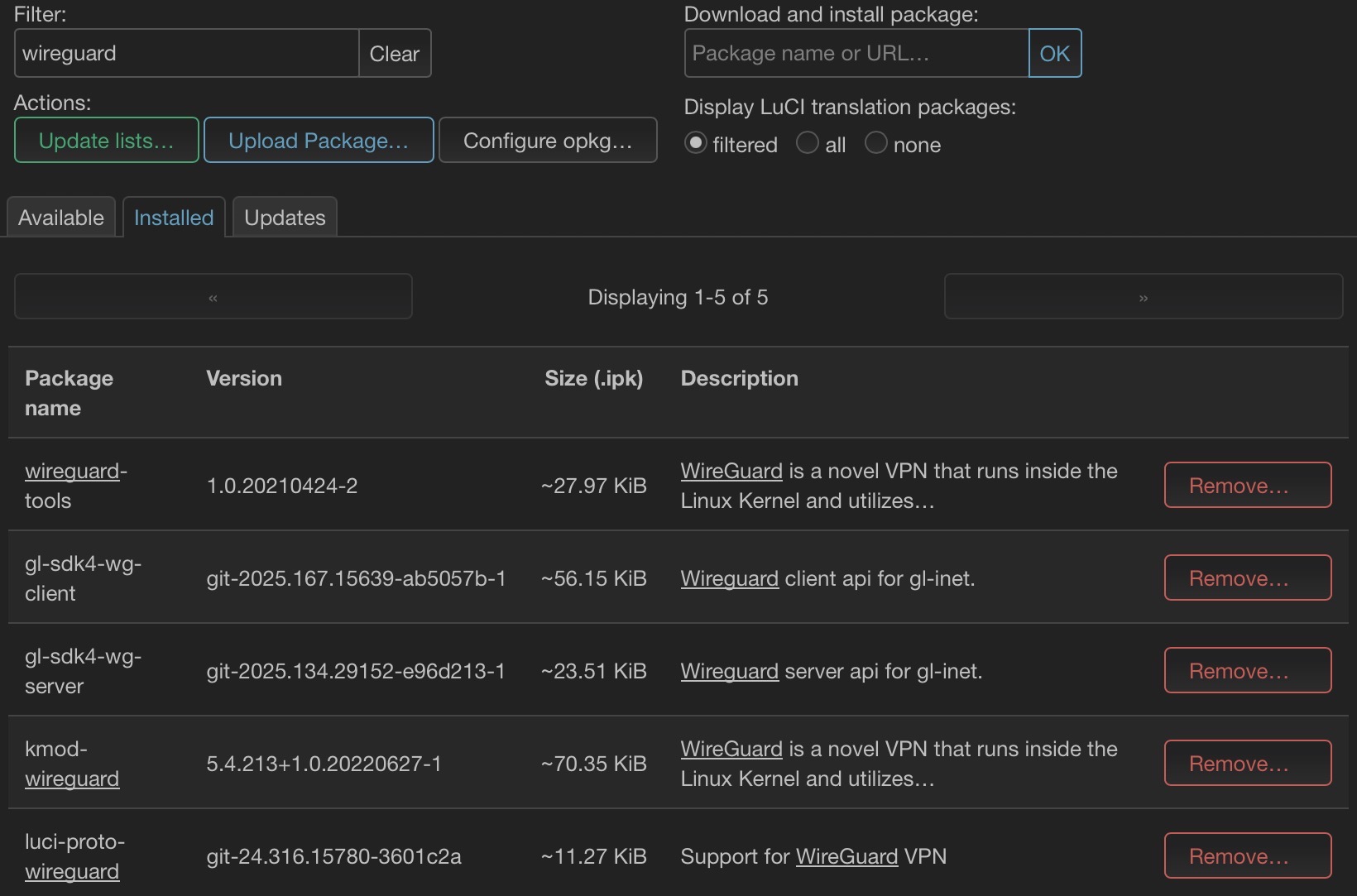

May I know what functions is running on your router? Have you installed third-party plugins? How do you reproduce the issue about these crash logs?

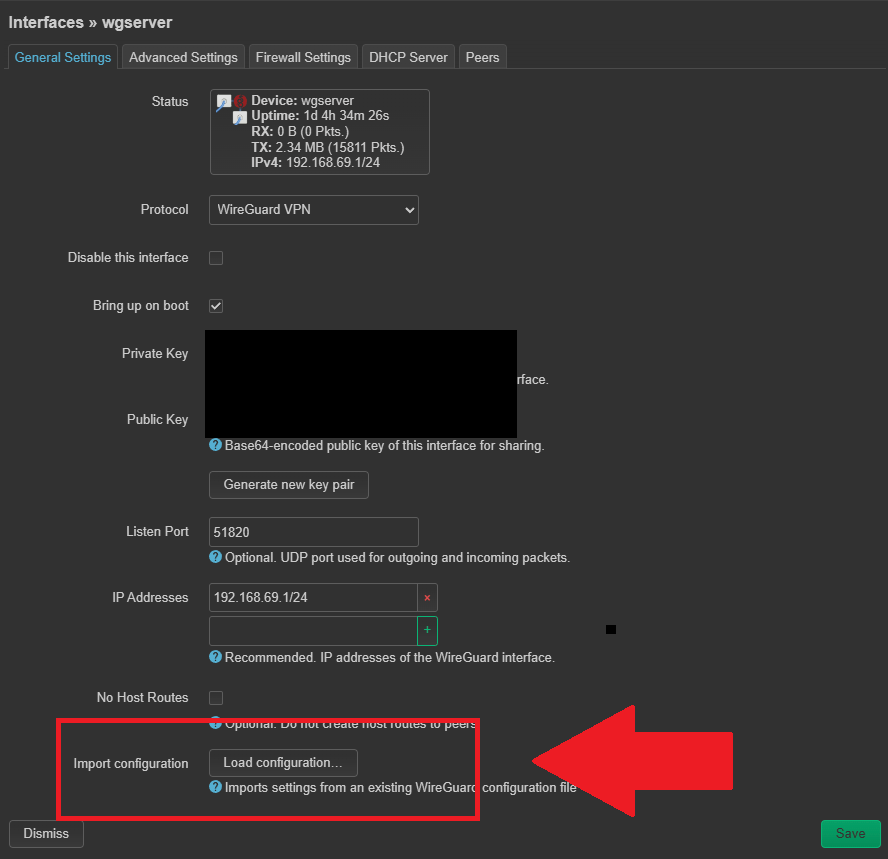

Was able to narrow it down to when i restart the wireguard interface from within LuCI. I am not using the GL UI to setup or create the wireguard server and doing it via the LuCI method with the luci-proto-wireguard package.
Here is the latest syslog entries:
Sun Jul 6 21:17:50 2025 daemon.notice netifd: Network device 'wgserver' link is down
Sun Jul 6 21:17:50 2025 user.notice firewall: Reloading firewall due to ifdown of wgserver ()
Sun Jul 6 21:17:50 2025 daemon.notice netifd: Interface 'wgserver' is now down
Sun Jul 6 21:17:50 2025 daemon.notice netifd: Interface 'wgserver' is setting up now
Sun Jul 6 21:17:51 2025 kern.warn kernel: [41819.016566] ------------[ cut here ]------------
Sun Jul 6 21:17:51 2025 kern.warn kernel: [41819.016604] WARNING: CPU: 0 PID: 24360 at kernel/workqueue.c:3049 __flush_work.isra.0+0x4c/0x1a0
Sun Jul 6 21:17:51 2025 kern.warn kernel: [41819.020243] Modules linked in: ecm_wifi_plugin ath_pktlog(P) monitor wifi_3_0 smart_antenna(P) qca_ol qca_spectral telemetry_agent umac qdf ecm_ovs ecm qca8k option usb_wwan rndis_host qmi_wwan nft_fib_inet nf_flow_table_ipv6 nf_flow_table_ipv4 nf_flow_table_inet ipt_REJECT huawei_cdc_ncm cdc_ncm cdc_ether xt_time xt_tcpudp xt_tcpmss xt_string xt_statistic xt_state xt_recent xt_quota xt_policy xt_pkttype xt_physdev xt_owner xt_nat xt_multiport xt_mark xt_mac xt_limit xt_length xt_hl xt_helper xt_esp xt_ecn xt_dscp xt_conntrack xt_connmark xt_connlimit xt_connbytes xt_comment xt_cgroup xt_bpf xt_addrtype xt_TPROXY xt_TCPMSS xt_REDIRECT xt_NETMAP xt_MASQUERADE xt_LOG xt_HL xt_DSCP xt_CT xt_CLASSIFY wireguard usbserial usbnet ums_usbat ums_sddr55 ums_sddr09 ums_karma ums_jumpshot ums_isd200 ums_freecom ums_datafab ums_cypress ums_alauda ts_fsm ts_bm sch_red sch_prio sch_pie sch_cake mem_manager rtl8372n_sw ppp_mppe ppp_async nft_tproxy nft_socket nft_reject_ipv6 nft_reject_ipv4
Sun Jul 6 21:17:51 2025 kern.warn kernel: [41819.020397] nft_reject_inet nft_reject nft_redir nft_quota nft_objref nft_numgen nft_nat nft_masq nft_log nft_limit nft_hash nft_fwd_netdev nft_flow_offload nft_fib_ipv6 nft_fib_ipv4 nft_fib nft_dup_netdev nft_ct nft_counter nft_compat nft_chain_nat nf_tproxy_ipv6 nf_tproxy_ipv4 nf_tables_set nf_tables nf_socket_ipv6 nf_socket_ipv4 nf_reject_ipv4 nf_nat_tftp nf_nat_snmp_basic nf_nat_rtsp nf_nat_pptp nf_nat_irc nf_nat_h323 nf_nat_ftp nf_nat_amanda nf_log_ipv6 nf_log_ipv4 nf_log_common nf_flow_table nf_dup_netdev nf_conntrack_tftp nf_conntrack_snmp nf_conntrack_rtsp nf_conntrack_rtcache nf_conntrack_pptp nf_conntrack_netlink nf_conntrack_irc nf_conntrack_h323 nf_conntrack_ftp nf_conntrack_broadcast ts_kmp nf_conntrack_amanda macvlan ipt_ah ipt_ECN ipheth ip6_tables ip_tables cdc_wdm cdc_acm arptable_filter arpt_mangle arp_tables act_police act_ipt phy_qca_uniphy phy_qca_m31 dwc3 dwc3_qcom fuse sch_teql sch_sfq sch_multiq sch_gred sch_fq sch_codel em_text em_nbyte em_meta em_cmp act_simple
Sun Jul 6 21:17:51 2025 kern.warn kernel: [41819.093071] act_pedit act_csum act_connmark sch_tbf sch_htb sch_hfsc em_u32 cls_u32 cls_route cls_matchall cls_fw cls_flow cls_basic act_skbedit act_mirred act_gact pwm_fan hwmon qca_nss_ppe_tunipip6 qca_nss_ppe_vxlanmgr qca_nss_ppe_netlink qca_nss_ppe_mapt qca_nss_ppe_l2tp l2tp_ppp qca_nss_ppe_gretap qca_nss_ppe_tun g_diag qca_nss_ppe_qdisc qca_nss_ppe_lag qca_nss_ppe_bridge_mgr qca_nss_macsec qca_nss_eip qca_mcs diagchar usb_f_diag crc_ccitt qca_nss_ppe_vlan qca_nss_ppe_pppoe_mgr qca_nss_ppe_ds libcomposite qca_ovsmgr openvswitch nf_conncount nf_nat nf_conntrack pptp nf_defrag_ipv4 libcrc32c xt_sctp emesh_sp xt_set ip_set_list_set ip_set_hash_netportnet ip_set_hash_netport ip_set_hash_netnet ip_set_hash_netiface ip_set_hash_net ip_set_hash_mac ip_set_hash_ipportnet ip_set_hash_ipportip ip_set_hash_ipport ip_set_hash_ipmark ip_set_hash_ipmac ip_set_hash_ip ip_set_bitmap_port ip_set_bitmap_ipmac ip_set_bitmap_ip ip_set nfnetlink ip6t_NPT ip6t_REJECT x_tables nf_reject_ipv6 msdos ip6_gre
Sun Jul 6 21:17:51 2025 kern.warn kernel: [41819.180390] ip_gre gre ifb l2tp_ip6 l2tp_ip l2tp_eth sit l2tp_netlink l2tp_core ipcomp6 xfrm6_tunnel esp6 ah6 xfrm4_tunnel ipcomp esp4 ah4 ip6_tunnel tunnel6 tunnel4 udp_diag tcp_diag raw_diag inet_diag veth tun ovpn_dco_v2 mpls_iptunnel mpls_router ip_tunnel mpls_gso xfrm_user xfrm_ipcomp af_key xfrm_algo ntfs qca_nss_ppe_vp qca_nss_dp cfg80211 nls_utf8 nls_iso8859_1 nls_cp437 vxlan udp_tunnel ip6_udp_tunnel nsh qca_nss_sfe pppoe qca_nss_ppe_rule qca_nss_ppe pppox ppp_generic nat46 slhc nf_defrag_ipv6 crypto_user algif_skcipher algif_rng algif_hash algif_aead af_alg md5 chacha20poly1305 qca_ssdk bonding mtdoops ipq_cnss2 uas usb_storage libchacha20poly1305 chacha_neon poly1305_neon libchacha block2mtd gl_fan_driver leds_gpio bootconfig xhci_plat_hcd xhci_pci xhci_hcd ahci libahci libata sd_mod scsi_mod kmwan gpio_button_hotplug gl_sdk4_tertf gl_repeater gl_sdk4_black_white_list vfat fat f2fs exfat(C) button_hotplug input_core udc_core usbcore nls_base usb_common mii crc32_generic
Sun Jul 6 21:17:51 2025 kern.warn kernel: [41819.267833] gl_sdk4_hw_info [last unloaded: qdf]
Sun Jul 6 21:17:51 2025 kern.warn kernel: [41819.377012] CPU: 0 PID: 24360 Comm: nft Tainted: P WC 5.4.213 #0
Sun Jul 6 21:17:51 2025 kern.warn kernel: [41819.381611] Hardware name: GL.iNet BE9300, Inc. IPQ5332/AP-MI01.6 (DT)
Sun Jul 6 21:17:51 2025 kern.warn kernel: [41819.388731] pstate: 60400005 (nZCv daif +PAN -UAO)
Sun Jul 6 21:17:51 2025 kern.warn kernel: [41819.395244] pc : __flush_work.isra.0+0x4c/0x1a0
Sun Jul 6 21:17:51 2025 kern.warn kernel: [41819.400011] lr : flush_work+0xc/0x14
Sun Jul 6 21:17:51 2025 kern.warn kernel: [41819.404436] sp : ffffff8034277770
Sun Jul 6 21:17:51 2025 kern.warn kernel: [41819.408255] x29: ffffff8034277770 x28: ffffffc010ad0080
Sun Jul 6 21:17:51 2025 kern.warn kernel: [41819.411469] x27: ffffffc009491980 x26: ffffff801fe79100
Sun Jul 6 21:17:51 2025 kern.warn kernel: [41819.416852] x25: ffffff803b5bd248 x24: 0000000000000001
Sun Jul 6 21:17:51 2025 kern.warn kernel: [41819.422146] x23: ffffffc010b08288 x22: ffffffc009f32000
Sun Jul 6 21:17:51 2025 kern.warn kernel: [41819.427442] x21: ffffff80352a7d00 x20: ffffffc00942e000
Sun Jul 6 21:17:51 2025 kern.warn kernel: [41819.432737] x19: ffffffc00942e380 x18: 0000000000000000
Sun Jul 6 21:17:51 2025 kern.warn kernel: [41819.438032] x17: 0000000000000000 x16: 0000000000000000
Sun Jul 6 21:17:51 2025 kern.warn kernel: [41819.443327] x15: 0000000000000000 x14: 0000000000000000
Sun Jul 6 21:17:51 2025 kern.warn kernel: [41819.448623] x13: 0000000000000000 x12: 0000000000000030
Sun Jul 6 21:17:51 2025 kern.warn kernel: [41819.453918] x11: 0000000000000000 x10: ffffff803b5bd258
Sun Jul 6 21:17:51 2025 kern.warn kernel: [41819.459213] x9 : 0000000000000040 x8 : 0000000000000000
Sun Jul 6 21:17:51 2025 kern.warn kernel: [41819.464507] x7 : ffffff801cb18c00 x6 : ffffffc00942e000
Sun Jul 6 21:17:51 2025 kern.warn kernel: [41819.469803] x5 : 0000000000000000 x4 : 0000000000000000
Sun Jul 6 21:17:51 2025 kern.warn kernel: [41819.475099] x3 : ffffff802f2072c0 x2 : 0000000000000000
Sun Jul 6 21:17:51 2025 kern.warn kernel: [41819.480393] x1 : 0000000000000000 x0 : 0000000000000000
Sun Jul 6 21:17:51 2025 kern.warn kernel: [41819.485689] Call trace:
Sun Jul 6 21:17:51 2025 kern.warn kernel: [41819.490984] __flush_work.isra.0+0x4c/0x1a0
Sun Jul 6 21:17:51 2025 kern.warn kernel: [41819.493154] flush_work+0xc/0x14
Sun Jul 6 21:17:51 2025 kern.warn kernel: [41819.497325] nf_flow_table_free+0x94/0xc0 [nf_flow_table]
Sun Jul 6 21:17:51 2025 kern.warn kernel: [41819.500800] nft_data_init+0x1034/0x2990 [nf_tables]
Sun Jul 6 21:17:51 2025 kern.warn kernel: [41819.506092] nfnetlink_unicast+0x7a4/0xb44 [nfnetlink]
Sun Jul 6 21:17:51 2025 kern.warn kernel: [41819.511124] nfnetlink_unicast+0xb00/0xb44 [nfnetlink]
Sun Jul 6 21:17:51 2025 kern.warn kernel: [41819.516074] netlink_unicast+0x150/0x23c
Sun Jul 6 21:17:51 2025 kern.warn kernel: [41819.521192] netlink_sendmsg+0x32c/0x3b0
Sun Jul 6 21:17:51 2025 kern.warn kernel: [41819.525274] sock_sendmsg+0x18/0x2c
Sun Jul 6 21:17:51 2025 kern.warn kernel: [41819.529177] ____sys_sendmsg+0x2d4/0x364
Sun Jul 6 21:17:51 2025 kern.warn kernel: [41819.532390] ___sys_sendmsg+0x8c/0xcc
Sun Jul 6 21:17:51 2025 kern.warn kernel: [41819.536556] __sys_sendmsg+0x64/0xb0
Sun Jul 6 21:17:51 2025 kern.warn kernel: [41819.540117] __arm64_sys_sendmsg+0x1c/0x24
Sun Jul 6 21:17:51 2025 kern.warn kernel: [41819.543764] el0_svc_common.constprop.0+0x94/0x110
Sun Jul 6 21:17:51 2025 kern.warn kernel: [41819.547668] el0_svc_handler+0x18/0x20
Sun Jul 6 21:17:51 2025 kern.warn kernel: [41819.552442] el0_svc+0x8/0x500
Sun Jul 6 21:17:51 2025 kern.warn kernel: [41819.556174] ---[ end trace ffd34edda7232bb6 ]---
Sun Jul 6 21:17:51 2025 daemon.notice netifd: Interface 'wgserver' is now up
Sun Jul 6 21:17:51 2025 daemon.notice netifd: Network device 'wgserver' link is up
Sun Jul 6 21:17:52 2025 user.notice firewall: Reloading firewall due to ifup of wgserver (wgserver)
Sun Jul 6 21:17:53 2025 kern.warn kernel: [41821.087466] ------------[ cut here ]------------
Sun Jul 6 21:17:53 2025 kern.warn kernel: [41821.087505] WARNING: CPU: 0 PID: 25026 at kernel/workqueue.c:3049 __flush_work.isra.0+0x4c/0x1a0
Sun Jul 6 21:17:53 2025 kern.warn kernel: [41821.091143] Modules linked in: ecm_wifi_plugin ath_pktlog(P) monitor wifi_3_0 smart_antenna(P) qca_ol qca_spectral telemetry_agent umac qdf ecm_ovs ecm qca8k option usb_wwan rndis_host qmi_wwan nft_fib_inet nf_flow_table_ipv6 nf_flow_table_ipv4 nf_flow_table_inet ipt_REJECT huawei_cdc_ncm cdc_ncm cdc_ether xt_time xt_tcpudp xt_tcpmss xt_string xt_statistic xt_state xt_recent xt_quota xt_policy xt_pkttype xt_physdev xt_owner xt_nat xt_multiport xt_mark xt_mac xt_limit xt_length xt_hl xt_helper xt_esp xt_ecn xt_dscp xt_conntrack xt_connmark xt_connlimit xt_connbytes xt_comment xt_cgroup xt_bpf xt_addrtype xt_TPROXY xt_TCPMSS xt_REDIRECT xt_NETMAP xt_MASQUERADE xt_LOG xt_HL xt_DSCP xt_CT xt_CLASSIFY wireguard usbserial usbnet ums_usbat ums_sddr55 ums_sddr09 ums_karma ums_jumpshot ums_isd200 ums_freecom ums_datafab ums_cypress ums_alauda ts_fsm ts_bm sch_red sch_prio sch_pie sch_cake mem_manager rtl8372n_sw ppp_mppe ppp_async nft_tproxy nft_socket nft_reject_ipv6 nft_reject_ipv4
Sun Jul 6 21:17:53 2025 kern.warn kernel: [41821.091257] nft_reject_inet nft_reject nft_redir nft_quota nft_objref nft_numgen nft_nat nft_masq nft_log nft_limit nft_hash nft_fwd_netdev nft_flow_offload nft_fib_ipv6 nft_fib_ipv4 nft_fib nft_dup_netdev nft_ct nft_counter nft_compat nft_chain_nat nf_tproxy_ipv6 nf_tproxy_ipv4 nf_tables_set nf_tables nf_socket_ipv6 nf_socket_ipv4 nf_reject_ipv4 nf_nat_tftp nf_nat_snmp_basic nf_nat_rtsp nf_nat_pptp nf_nat_irc nf_nat_h323 nf_nat_ftp nf_nat_amanda nf_log_ipv6 nf_log_ipv4 nf_log_common nf_flow_table nf_dup_netdev nf_conntrack_tftp nf_conntrack_snmp nf_conntrack_rtsp nf_conntrack_rtcache nf_conntrack_pptp nf_conntrack_netlink nf_conntrack_irc nf_conntrack_h323 nf_conntrack_ftp nf_conntrack_broadcast ts_kmp nf_conntrack_amanda macvlan ipt_ah ipt_ECN ipheth ip6_tables ip_tables cdc_wdm cdc_acm arptable_filter arpt_mangle arp_tables act_police act_ipt phy_qca_uniphy phy_qca_m31 dwc3 dwc3_qcom fuse sch_teql sch_sfq sch_multiq sch_gred sch_fq sch_codel em_text em_nbyte em_meta em_cmp act_simple
Sun Jul 6 21:17:53 2025 kern.warn kernel: [41821.163969] act_pedit act_csum act_connmark sch_tbf sch_htb sch_hfsc em_u32 cls_u32 cls_route cls_matchall cls_fw cls_flow cls_basic act_skbedit act_mirred act_gact pwm_fan hwmon qca_nss_ppe_tunipip6 qca_nss_ppe_vxlanmgr qca_nss_ppe_netlink qca_nss_ppe_mapt qca_nss_ppe_l2tp l2tp_ppp qca_nss_ppe_gretap qca_nss_ppe_tun g_diag qca_nss_ppe_qdisc qca_nss_ppe_lag qca_nss_ppe_bridge_mgr qca_nss_macsec qca_nss_eip qca_mcs diagchar usb_f_diag crc_ccitt qca_nss_ppe_vlan qca_nss_ppe_pppoe_mgr qca_nss_ppe_ds libcomposite qca_ovsmgr openvswitch nf_conncount nf_nat nf_conntrack pptp nf_defrag_ipv4 libcrc32c xt_sctp emesh_sp xt_set ip_set_list_set ip_set_hash_netportnet ip_set_hash_netport ip_set_hash_netnet ip_set_hash_netiface ip_set_hash_net ip_set_hash_mac ip_set_hash_ipportnet ip_set_hash_ipportip ip_set_hash_ipport ip_set_hash_ipmark ip_set_hash_ipmac ip_set_hash_ip ip_set_bitmap_port ip_set_bitmap_ipmac ip_set_bitmap_ip ip_set nfnetlink ip6t_NPT ip6t_REJECT x_tables nf_reject_ipv6 msdos ip6_gre
Sun Jul 6 21:17:53 2025 kern.warn kernel: [41821.251290] ip_gre gre ifb l2tp_ip6 l2tp_ip l2tp_eth sit l2tp_netlink l2tp_core ipcomp6 xfrm6_tunnel esp6 ah6 xfrm4_tunnel ipcomp esp4 ah4 ip6_tunnel tunnel6 tunnel4 udp_diag tcp_diag raw_diag inet_diag veth tun ovpn_dco_v2 mpls_iptunnel mpls_router ip_tunnel mpls_gso xfrm_user xfrm_ipcomp af_key xfrm_algo ntfs qca_nss_ppe_vp qca_nss_dp cfg80211 nls_utf8 nls_iso8859_1 nls_cp437 vxlan udp_tunnel ip6_udp_tunnel nsh qca_nss_sfe pppoe qca_nss_ppe_rule qca_nss_ppe pppox ppp_generic nat46 slhc nf_defrag_ipv6 crypto_user algif_skcipher algif_rng algif_hash algif_aead af_alg md5 chacha20poly1305 qca_ssdk bonding mtdoops ipq_cnss2 uas usb_storage libchacha20poly1305 chacha_neon poly1305_neon libchacha block2mtd gl_fan_driver leds_gpio bootconfig xhci_plat_hcd xhci_pci xhci_hcd ahci libahci libata sd_mod scsi_mod kmwan gpio_button_hotplug gl_sdk4_tertf gl_repeater gl_sdk4_black_white_list vfat fat f2fs exfat(C) button_hotplug input_core udc_core usbcore nls_base usb_common mii crc32_generic
Sun Jul 6 21:17:53 2025 kern.warn kernel: [41821.338732] gl_sdk4_hw_info [last unloaded: qdf]
Sun Jul 6 21:17:53 2025 kern.warn kernel: [41821.447914] CPU: 0 PID: 25026 Comm: nft Tainted: P WC 5.4.213 #0
Sun Jul 6 21:17:53 2025 kern.warn kernel: [41821.452512] Hardware name: GL.iNet BE9300, Inc. IPQ5332/AP-MI01.6 (DT)
Sun Jul 6 21:17:53 2025 kern.warn kernel: [41821.459632] pstate: 60400005 (nZCv daif +PAN -UAO)
Sun Jul 6 21:17:53 2025 kern.warn kernel: [41821.466145] pc : __flush_work.isra.0+0x4c/0x1a0
Sun Jul 6 21:17:53 2025 kern.warn kernel: [41821.470913] lr : flush_work+0xc/0x14
Sun Jul 6 21:17:53 2025 kern.warn kernel: [41821.475338] sp : ffffff803297f770
Sun Jul 6 21:17:53 2025 kern.warn kernel: [41821.479157] x29: ffffff803297f770 x28: ffffffc010ad0080
Sun Jul 6 21:17:53 2025 kern.warn kernel: [41821.482371] x27: ffffffc009491980 x26: ffffff8038248700
Sun Jul 6 21:17:53 2025 kern.warn kernel: [41821.487754] x25: ffffff80306b0e48 x24: 0000000000000001
Sun Jul 6 21:17:53 2025 kern.warn kernel: [41821.493051] x23: ffffffc010b08288 x22: ffffffc009f32000
Sun Jul 6 21:17:53 2025 kern.warn kernel: [41821.498344] x21: ffffff80352a7b00 x20: ffffffc00942e000
Sun Jul 6 21:17:53 2025 kern.warn kernel: [41821.503638] x19: ffffffc00942e380 x18: 0000000000000000
Sun Jul 6 21:17:53 2025 kern.warn kernel: [41821.508934] x17: 0000000000000000 x16: 0000000000000000
Sun Jul 6 21:17:53 2025 kern.warn kernel: [41821.514229] x15: 0000000000000000 x14: 0000000000000000
Sun Jul 6 21:17:53 2025 kern.warn kernel: [41821.519524] x13: 0000000000000000 x12: 0000000000000030
Sun Jul 6 21:17:53 2025 kern.warn kernel: [41821.524819] x11: 0000000000000000 x10: ffffff80306b0e58
Sun Jul 6 21:17:53 2025 kern.warn kernel: [41821.530113] x9 : 0000000000000040 x8 : 0000000000000000
Sun Jul 6 21:17:53 2025 kern.warn kernel: [41821.535409] x7 : ffffff801cb1ac00 x6 : ffffffc00942e000
Sun Jul 6 21:17:53 2025 kern.warn kernel: [41821.540704] x5 : 0000000000000000 x4 : 0000000000000000
Sun Jul 6 21:17:53 2025 kern.warn kernel: [41821.546000] x3 : ffffff8031a50000 x2 : 0000000000000000
Sun Jul 6 21:17:53 2025 kern.warn kernel: [41821.551294] x1 : 0000000000000000 x0 : 0000000000000000
Sun Jul 6 21:17:53 2025 kern.warn kernel: [41821.556591] Call trace:
Sun Jul 6 21:17:53 2025 kern.warn kernel: [41821.561886] __flush_work.isra.0+0x4c/0x1a0
Sun Jul 6 21:17:53 2025 kern.warn kernel: [41821.564055] flush_work+0xc/0x14
Sun Jul 6 21:17:53 2025 kern.warn kernel: [41821.568227] nf_flow_table_free+0x94/0xc0 [nf_flow_table]
Sun Jul 6 21:17:53 2025 kern.warn kernel: [41821.571702] nft_data_init+0x1034/0x2990 [nf_tables]
Sun Jul 6 21:17:53 2025 kern.warn kernel: [41821.576993] nfnetlink_unicast+0x7a4/0xb44 [nfnetlink]
Sun Jul 6 21:17:53 2025 kern.warn kernel: [41821.582026] nfnetlink_unicast+0xb00/0xb44 [nfnetlink]
Sun Jul 6 21:17:53 2025 kern.warn kernel: [41821.586975] netlink_unicast+0x150/0x23c
Sun Jul 6 21:17:53 2025 kern.warn kernel: [41821.592094] netlink_sendmsg+0x32c/0x3b0
Sun Jul 6 21:17:53 2025 kern.warn kernel: [41821.596177] sock_sendmsg+0x18/0x2c
Sun Jul 6 21:17:53 2025 kern.warn kernel: [41821.600079] ____sys_sendmsg+0x2d4/0x364
Sun Jul 6 21:17:53 2025 kern.warn kernel: [41821.603291] ___sys_sendmsg+0x8c/0xcc
Sun Jul 6 21:17:53 2025 kern.warn kernel: [41821.607459] __sys_sendmsg+0x64/0xb0
Sun Jul 6 21:17:53 2025 kern.warn kernel: [41821.611019] __arm64_sys_sendmsg+0x1c/0x24
Sun Jul 6 21:17:53 2025 kern.warn kernel: [41821.614667] el0_svc_common.constprop.0+0x94/0x110
Sun Jul 6 21:17:53 2025 kern.warn kernel: [41821.618571] el0_svc_handler+0x18/0x20
Sun Jul 6 21:17:53 2025 kern.warn kernel: [41821.623344] el0_svc+0x8/0x500
Sun Jul 6 21:17:53 2025 kern.warn kernel: [41821.627074] ---[ end trace ffd34edda7232bb7 ]---
Here are the wireguard packages I am using:
May I know why not use the WG server in GL GUI?
Is there any function missing in the VPN server of GL GUI that cannot meet your needs?
@bruce
Hi Bruce, is this official? I can't check the MD5 with the share file from you in this post, which is no longer available
I use a standard config across my Flint 1 and Flint 2 that I just import via LuCI:
I don't see any way of importing a config in the GL interface.
Just to keep you all informed this is the problem I posted in the "Discussion" thread.
Below that is the response by GL.inet on that and all is 4sure a firmware problem:
Received the Flint 3 today.
After setting it up,with the Flint 2 next to it for comparison, initially it looks like both are performing about the same.
But..... in the Flint 3 over a WAN PPPoE connection it keeps dropping the connection every few mins for about a minute. Moved cables over to the Flint 2 and no such behaviour.
So, something makes the PPoE WAN dropping constantly every few mins and it happens only with the Flint 3 so it must be firmware related.
Speedwise wired I get on a 1 Gbps glass line 1020 down and 1035 up.
Wireless with Wifi-7 (my phone supports it) even the same speeds!!
When I move to another room with 1 bricked wall between it over a distance of 9 meters: down is still over 1000 and up drops a bit to 800 Mbps.
This is for now the initial testing with a big bug in the WAN PPPoE connection that is dropping out every few mins ONLY on the Flint 3.
The dev team should look into it and correct it in a firmware update.
Also resetting the Flint 3 and setting it up again does not solve that.
Also the device gets a lot hotter than the Flint 2.
All tests on the latest 4.7.11 firmware, IPV6 disabled.
What do I miss: second WAN 2.5 GB port.
So for the GL.iNet devs: any advise for the constantly dropping WAN PPPoE connection?
Edit: I found the 4.7.13 update but unfortunately the continiously disconnecting WAN PPPoE connection still there.
So today I was connected by AnyDesk with GL.iNet Support and nearly 2 hours of logging, read logs, do some testing it showed that the PPoE connection gave the warning "The interface is connected, but the Internet can't be accessed" and no internet connection available but in real time the connection was still there, just the device said it was disconnected.
This dropping happens every few mins but during testing we saw that for real the internet connection was still there but the Flint 3 said the connection was lost.
So it must be in the firmware of the last 3 builds of the firmware because I had it on all 3 versions.
Probably they will try to solve this in one of the next firmware updates.
Thanks to Miles, the GL.iNet expert, to take his time to find out what for real was going on here!!
