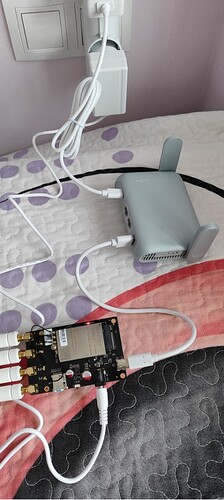

Hi i have Beryl router with gl-m2 board attached as you can see on the picture, but the router display:

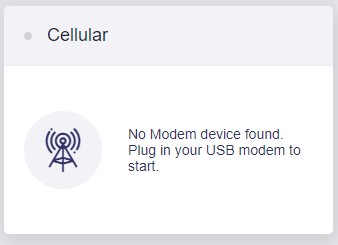

No Modem device found. Plug in your USB modem to start.
The router firmware now is 4.5.16, what i am doing bad?
Regards
Connection is good. Bad cable?
everything is connected fine, and all brand new buyed from your webstore... except the RM520N-GL card , regards.
Is this RM520 too
Go into the background and look at this command
ls /dev/ttyUSB*
Yes the card i have on it is RM520N-GL model:
root@GL-MT3000:~# ls /dev/ttyUSB*
ls: /dev/ttyUSB*: No such file or directory
Is this module recognizable on your computer?
The USB modem uses modules on the M.2 development board
Can the router recognize it
What do I have to do to connect it to my computer?
I dont understand the second question.
I reedited the second question
This appear on my Router:
You have two RM520N-GL？
no, i have only one inserted on the glinet m2 development board as you can see on my first picture
Is this module sure to work properly?
its brand new, i didnt test it on another board, just bought it and inserted on your board... anyway the router should detect usb board not?
Maybe your module is configured incorrectly
Its brand new... it should be configured before using it on the m2 glinet board?
Perhaps its network card dialing mode is in another mode, resulting in the router cannot recognize
what can i do to configure it properly or what i have to do...
What kind of computer are you? windows or mac
I think you can first ask the merchant you bought the module, how to connect to the computer ...regards
I have a computer with windows. I just have the module and your m2 board, if I connect the m2 board to the computer through the usb port it does nothing... it didnt recognize nothing
- Right-click my computer and click Manage
- Click Device Manager
- Locate the port in the right pane
