Guest network on LAN port X3000

[Keizer]

I was reading about this topic on the provided link but don’t see my Spitz X3000 listed. Does this work for the X3000 as well? This would be very similar to a VLAN correct?

How to Change A LAN port to Guest LAN

Sometimes people want to have one LAN port of GL-router change into the Guest LAN, then they can provide their guests a LAN connection without using the main LAN. Our models GL-AX1800, GL-AXT1800, and GL-A1300 can provide one of the LAN ports to become a Guest LAN. First, login your router and go to Luci. Then click the Network tab Interface and you will see the Guest [brguest] Click Edit and then you can see the manual inside. Change the Device from unspecified to eth2 [eth2] Then go ba…

[GoodlifeBL]

X3000 has only 1 LAN port, if you change it to guest, it is okay. But you will have no main LAN port.

[Keizer]

But you can change the WAN port on the X3000 to a LAN port in the GUI. So now you have two LAN ports.

[slesar]

Another option is to buy switch ports

[GoodlifeBL]

Yes, you are so smart!

[Keizer]

I have a 16 port switch already. You totally missed the point. I’m not trying to gain an extra ethernet port. I’m trying to have one of the LAN ports on the Spitz be a guest network LAN port. Then maybe plug another switch into that for guests to use.

[admon]

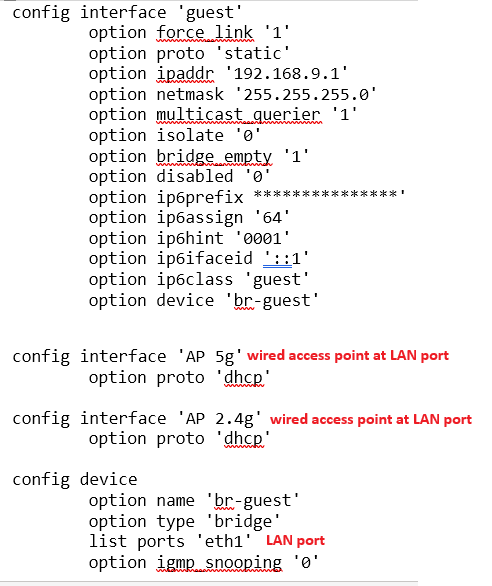

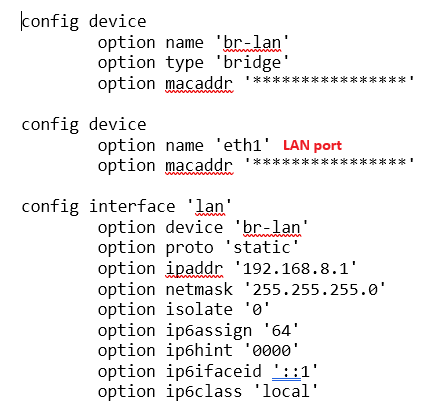

Should be pretty easy by just moving the eth1 port to the guest bridge instead of using the lan bridge.

So I would say the way should be work the same.
