Tapo devices not working online After replace ZTE internet with Gl-inet GL-X3000

mdpatel · July 29, 2024, 8:28am

okay, give me solution..

admon · July 29, 2024, 8:32am

I moved the previous answers about the Tapo issue to this thread.

mdpatel · July 29, 2024, 8:45am

tapo connected with GL-X3000 via wifi successfully and it work fine local only.
now off tapo and on again, after on tapo bellow system log generate.

Mon Jul 29 14:10:48 2024 kern.warn kernel: [ 3170.582652] 7981@C01L2,wifi_sys_disconn_act() 1002:  wdev_idx=0
Mon Jul 29 14:10:48 2024 kern.notice kernel: [ 3170.588871] 7981@C08L3,hw_ctrl_flow_v2_disconnt_act() 172: wdev_idx=0
Mon Jul 29 14:10:48 2024 kern.warn kernel: [ 3170.596891] 7981@C13L2,MacTableDeleteEntry() 1793: Del Sta:d8:xx:xx:xx:da:b3
Mon Jul 29 14:10:48 2024 kern.notice kernel: [ 3170.604164] 7981@C08L3,ap_peer_deauth_action() 429: AUTH - receive DE-AUTH(seq-27) from d8:xx:xx:xx:da:b3, reason=3
Mon Jul 29 14:10:48 2024 kern.notice kernel: [ 3170.614625] 7981@C08L3,ap_peer_auth_req_at_idle_action() 717: AUTH - MBSS(0), Rcv AUTH seq#1, Alg=0, Status=0 from [wcid=1]d8:xx:xx:xx:da:b3
Mon Jul 29 14:10:48 2024 kern.debug kernel: [ 3170.627263] entrytb_aid_aquire(): found non-occupied aid:4, allocated from:4
Mon Jul 29 14:10:48 2024 kern.warn kernel: [ 3170.634315] 7981@C13L2,MacTableInsertEntry() 1537: New Sta:d8:xx:xx:xx:da:b3
Mon Jul 29 14:10:48 2024 kern.notice kernel: [ 3170.641429] 7981@C08L3,ap_cmm_peer_assoc_req_action() 1647:  Recv Assoc from STA - d8:xx:xx:xx:da:b3
Mon Jul 29 14:10:48 2024 kern.notice kernel: [ 3170.651845] 7981@C08L3,ap_cmm_peer_assoc_req_action() 2170: ASSOC Send ASSOC response (Status=0)...
Mon Jul 29 14:10:48 2024 kern.notice kernel: [ 3170.661013] 7981@C01L3,wifi_sys_conn_act() 1115: wdev idx = 0
Mon Jul 29 14:10:48 2024 kern.notice kernel: [ 3170.667145] 7981@C08L3,hw_ctrl_flow_v2_connt_act() 215: wdev_idx=0
Mon Jul 29 14:10:48 2024 kern.notice kernel: [ 3170.789206] 7981@C15L3,WPABuildPairMsg1() 5280: <=== send Msg1 of 4-way
Mon Jul 29 14:10:49 2024 kern.notice kernel: [ 3171.796900] 7981@C15L3,WPABuildPairMsg1() 5280: <=== send Msg1 of 4-way
Mon Jul 29 14:10:50 2024 kern.notice kernel: [ 3172.576814] 7981@C15L3,PeerPairMsg2Action() 6202: ===>Receive msg 2
Mon Jul 29 14:10:50 2024 kern.notice kernel: [ 3172.583154] 7981@C15L3,PeerPairMsg2Action() 6202: ===>Receive msg 2
Mon Jul 29 14:10:50 2024 kern.notice kernel: [ 3172.590227] 7981@C15L3,WPABuildPairMsg3() 5557: <=== send Msg3 of 4-way
Mon Jul 29 14:10:50 2024 kern.notice kernel: [ 3172.596866] 7981@C15L3,PeerPairMsg4Action() 6632: ===>Receive msg 4
Mon Jul 29 14:10:50 2024 daemon.info dnsmasq-dhcp[5838]: DHCPDISCOVER(br-lan) d8:xx:xx:xx:da:b3
Mon Jul 29 14:10:50 2024 daemon.info dnsmasq-dhcp[5838]: DHCPOFFER(br-lan) 192.168.8.196 d8:xx:xx:xx:da:b3
Mon Jul 29 14:10:50 2024 kern.warn kernel: [ 3172.608540] 7981@C15L2,PeerPairMsg4Action() 6994: AP SETKEYS DONE(ra0) - AKMMap=WPA2PSK, PairwiseCipher=AES, GroupCipher=AES, wcid=1 from d8:xx:xx:xx:da:b3
Mon Jul 29 14:10:50 2024 kern.warn kernel: [ 3172.608540]
Mon Jul 29 14:10:50 2024 daemon.info dnsmasq-dhcp[5838]: DHCPREQUEST(br-lan) 192.168.8.196 d8:xx:xx:xx:da:b3
Mon Jul 29 14:10:50 2024 daemon.info dnsmasq-dhcp[5838]: DHCPACK(br-lan) 192.168.8.196 d8:xx:xx:xx:da:b3 H100
Mon Jul 29 14:10:56 2024 kern.err kernel: [ 3179.122951] 7981@C14L1,BTMReqTimeout() 2169:  receive btm req timeout the uplayer does not send btm req in time
Mon Jul 29 14:14:07 2024 kern.debug kernel: [ 3369.976992] skb_tailroom small!

hecatae · July 29, 2024, 9:17am

Another Tapo owner here, 4 Tapo Bulbs and 4 Tapo Cameras.
Have you whitelisted the Tapo domains?

(.|^)tplink.com$
tplinkcloud.com
tplinknbu.com

Can you confirm the APN settings on the MC801a, is it in IPv4, IPv4IPv6 or IPv6 mode?

alzhao · July 29, 2024, 9:36am

Maybe the log on the router does not matter.

Can you ping tplink.com and other tp domains mentioned by @hecatae

alzhao · July 29, 2024, 9:41am

When you use the ZTE router, what is the IP address the Tapo device get?

mdpatel · July 29, 2024, 9:49am

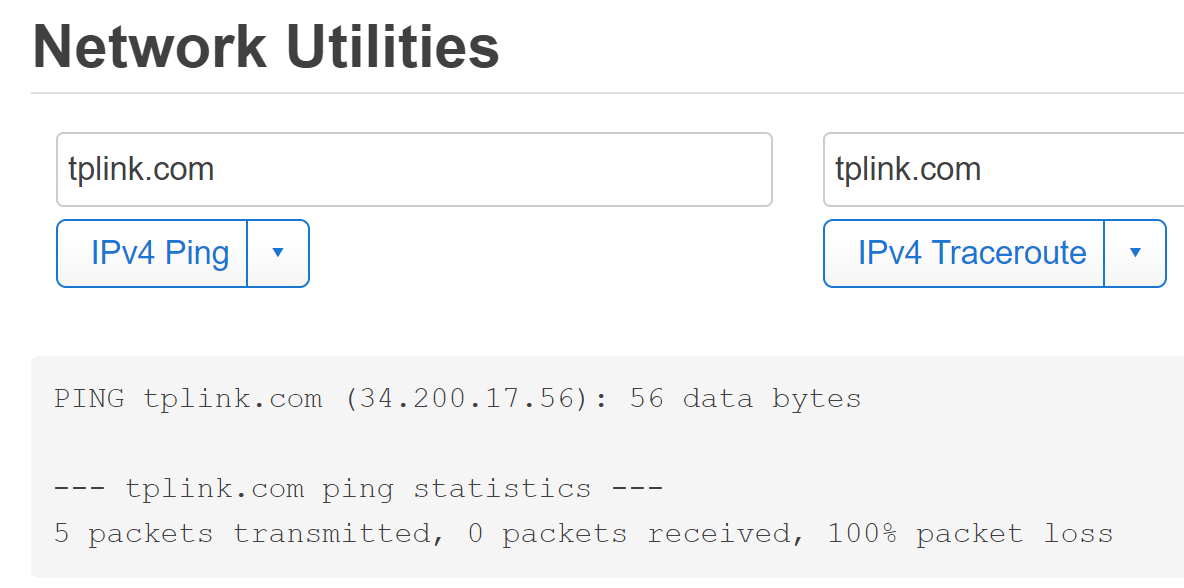

Cant ping tplink.com and tplinkcloud.com, 100% packet loss..
successfully open in browser bellow domains :
https://www.tplinkcloud.com/
TP-Link India - WiFi Networking Equipment for Home & Business

May be need 464xlat CLAT support like t-mobile, am i Right?
T-Mobile and 464XLAT - #2 by alzhao

alzhao · July 29, 2024, 10:07am

Not sure. That should be done in the ISP side.

Can you access all other website without issues?

mdpatel · July 29, 2024, 10:10am

if ping tplinkcloud.com request time out.
if ping 18.141.5.188 (tplinkcloud.com ip) then time out.
if open in browser http://18.141.5.188 then work fine.

alzhao · July 29, 2024, 10:14am

This seems normal because they don't allow ping. I cannot ping either.

mdpatel · July 29, 2024, 10:17am

ok, then where is problem? only happen with GL-inet..

alzhao · July 29, 2024, 10:23am

Can you get these info:

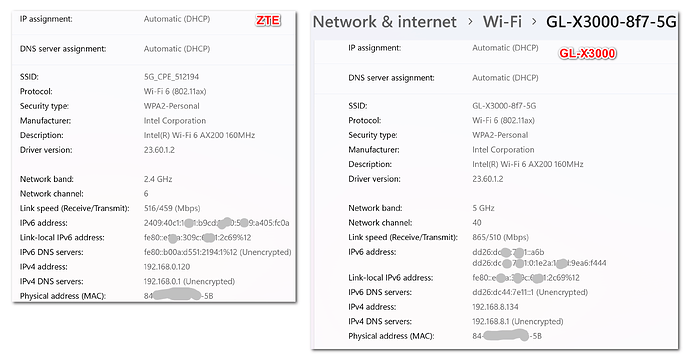

When connected using ZTE, what is the IP you get on the ZTE modem? can you get some screenshots of the ZTE modem? including the apn settings, mtu etc.
When connected to ZTE, what is the IP the H100 get?

mdpatel · July 29, 2024, 10:42am

Satyam500160 · July 29, 2024, 11:50am

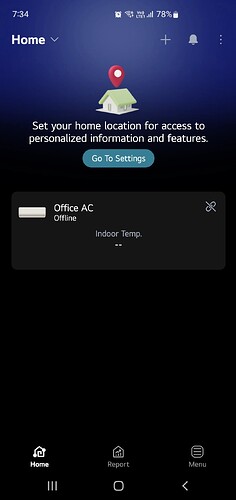

Same problem here with the same GL-X3000 router: many IoT devices are not working with its 5G internet, but they work fine when a VPN configuration is added and connected. I tried many possible solutions, but none of them worked.

I think it's related to dns.
