EDID database

KVM
1

2560x1080@60FPS:

00 ff ff ff ff ff ff 00 05 e3 63 29 4b 01 00 00
0a 17 01 03 80 43 1c 78 2a ca 95 a6 55 4e a1 26
0f 50 54 bf ef 00 d1 c0 b3 00 95 00 81 80 81 40
81 c0 01 01 01 01 cd 46 00 a0 a0 38 1f 40 30 20
3a 00 a1 1c 21 00 00 1a 02 3a 80 18 71 38 2d 40
58 2c 45 00 a1 1c 21 00 00 1e 00 00 00 fd 00 32
4c 1e 63 1e 00 0a 20 20 20 20 20 20 00 00 00 fc
00 32 39 36 33 0a 20 20 20 20 20 20 20 20 01 16

02 03 1f f1 4c 05 14 10 1f 04 13 03 12 02 11 01
22 23 09 07 01 83 01 00 00 65 03 0c 00 10 00 02
3a 80 18 71 38 2d 40 58 2c 45 00 a1 1c 21 00 00
1e 01 1d 00 72 51 d0 1e 20 6e 28 55 00 a1 1c 21
00 00 1e 8c 0a d0 8a 20 e0 2d 10 10 3e 96 00 a1
1c 21 00 00 18 8c 0a d0 90 20 40 31 20 0c 40 55
00 a1 1c 21 00 00 18 00 00 00 00 00 00 00 00 00
00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ef

3440x1440@50FPS:

00 ff ff ff ff ff ff 00 05 e3 25 35 01 01 01 01
00 1a 01 03 80 52 23 78 0e ee 91 a3 54 4c 99 26
0f 50 54 21 08 00 01 01 01 01 01 01 01 01 01 01
01 01 01 01 01 01 9d 67 70 a0 d0 a0 22 50 30 20
3a 00 33 5a 31 00 00 1a 00 00 00 ff 00 0a 20 20
20 20 20 20 20 20 20 20 20 20 00 00 00 fd 00 18
3c 1e 8c 1e 01 0a 20 20 20 20 20 20 00 00 00 fc
00 41 47 33 35 32 55 43 47 0a 20 20 20 20 01 6d

02 03 1a c1 47 90 1f 04 13 03 12 01 23 09 07 01
83 01 00 00 65 03 0c 00 10 00 00 00 00 00 00 00
00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 c1

2560x1600@50FPS:

    00FFFFFFFFFFFF00328D323100888888
    201E0103800C07780A0DC9A057479827
    12484C00000001010101010101010101
    010101010101035700A0A04026603020
    36000040A600001E023A801871382D40
    582C4500C48E2100001E000000FD0018
    6414961E000A202020202020000000FC
    00415355530A202020202020202001F0
    02031DF04A0104101F2021225D5E5F23
    0904018301000065030C001000000000
    00000000000000000000000000000000
    00000000000000000000000000000000
    00000000000000000000000000000000
    00000000000000000000000000000000
    00000000000000000000000000000000
    000000000000000000000000000000BA

800x600@60fps:

00 ff ff ff ff ff ff 00 0d 12 11 75 70 03 00 00
05 17 01 04 95 2b 1d 78 e2 80 42 ac 51 30 b4 25
10 50 53 00 00 00 01 01 01 01 01 01 01 01 01 01
01 01 01 01 01 01 f1 0e 20 e0 30 58 18 20 20 50
34 00 07 44 21 00 00 1c 00 00 00 00 00 00 00 00
00 00 00 00 00 00 00 00 00 00 00 00 00 fd 00 38
4c 1e 53 11 00 0a 20 20 20 20 20 20 00 00 00 fc
00 43 48 37 35 31 31 42 0a 20 20 20 20 20 00 12

1024x768@60fps:

00 ff ff ff ff ff ff 00 05 e3 22 a5 f3 2f 0e 00
23 12 01 03 80 1e 17 82 2a 8f 3d a4 58 4d 90 24
15 4f 51 bf ee 00 01 01 01 01 01 01 01 01 01 01
01 01 01 01 01 01 64 19 00 40 41 00 26 30 18 88
36 00 30 e4 10 00 00 18 00 00 00 ff 00 54 35 43
53 38 38 41 39 32 39 37 37 39 00 00 00 fd 00 37
4b 1e 3f 08 00 0a 20 20 20 20 20 20 00 00 00 fc
00 4c 4d 35 32 32 0a 20 20 20 20 20 20 20 01 0b

02 03 1b 61 23 09 07 07 83 01 00 00 67 03 0c 00
20 00 80 2d 43 90 84 02 e2 00 0f 8c 0a d0 8a 20
e0 2d 10 10 3e 96 00 a0 5a 00 00 00 00 00 00 00
00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 29

1360x768@60fps:

00 ff ff ff ff ff ff 00 05 e3 00 00 01 01 01 01
00 1d 01 03 80 40 24 78 0a f9 ab a2 55 4a 9a 25
0f 47 4a 21 08 00 a9 40 01 01 01 01 01 01 01 01
01 01 01 01 01 01 1b 21 50 a0 51 00 1e 30 48 88
35 00 80 68 21 00 00 18 02 3a 80 18 71 38 2d 40
58 2c 45 00 80 68 21 00 00 1e 00 00 00 fc 00 41
4f 43 20 46 54 56 0a 20 20 20 20 20 00 00 00 fd
00 38 4c 1e 53 11 00 0a 20 20 20 20 20 20 01 0d

02 03 2c 70 4e 13 04 1f 10 21 22 20 14 05 11 02
15 06 01 2c 09 1f 07 15 07 50 3d 07 c0 57 07 00
83 01 00 00 67 03 0c 00 10 00 38 3d 02 3a 80 d0
72 38 2d 40 10 2c 45 80 80 68 21 00 00 1e 01 1d
80 d0 72 1c 16 20 10 2c 25 80 80 68 21 00 00 9e
01 1d 80 18 71 1c 16 20 58 2c 25 00 80 68 21 00
00 9e 01 1d 00 bc 52 d0 1e 20 b8 28 55 40 80 68
21 00 00 1e 00 00 00 00 00 00 00 00 00 00 00 54

2336x1080@60fps:

    00FFFFFFFFFFFF00410C1CC28A0E0000
    081F0103803C22782A2D71AF4F44A927
    0D5054BFEF00D1C0B300950081808140
    81C001010101F14020A090381F403020
    3A0024389400001EA073006AA0A02950
    0820350055502100001A000000FC0050
    484C32373545390A20202020000000FD
    00304B1E721E000A202020202020010F
    020327F04B101F051404130312021101
    230907078301000065030C001000681A
    00000101304B00023A801871382D4058
    2C450055502100001E8C0AD08A20E02D
    10103E96005550210000188C0AD09020
    4031200C405500555021000018F03C00
    D051A0355060883A0055502100001C00
    000000000000000000000000000000AE

1920x1080@30fps:

    00FFFFFFFFFFFF0006B3B22401010101
    211E010380351E780EEE91A3544C9926
    0F505421080001010101010101010101
    010101010101011D801871382D40582C
    4500132B2100001E000000FF004C384C
    4D51533037353339320A000000FD0018
    3C1E5A1E010A202020202020000000FC
    00524F47205047323438510A202001CD
    02031AC147901F041303120123090701
    8301000065030C001000000000000000
    00000000000000000000000000000000
    00000000000000000000000000000000
    00000000000000000000000000000000
    00000000000000000000000000000000
    00000000000000000000000000000000
    000000000000000000000000000000C1

1152x864@60FPS:

    00FFFFFFFFFFFF0006B3B22401010101
    211E010380351E780EEE91A3544C9926
    0F505421080001010101010101010101
    0101010101013F1B80A0406019303020
    3400132B2100001E000000FC00415355
    530A2020202020202020000000110000
    00000000000000000000000000000011
    000000000000000000000000000001A1
    02031AC147901F041303120123090701
    8301000065030C001000000000000000
    00000000000000000000000000000000
    00000000000000000000000000000000
    00000000000000000000000000000000
    00000000000000000000000000000000
    00000000000000000000000000000000
    000000000000000000000000000000C1

3840x1600@30FPS:

    00FFFFFFFFFFFF00328D323100888888
    201E0103800C07780A0DC9A057479827
    12484C00000001010101010101010101
    010101010101134C00A0F04017603020
    3A000040F600001E0000001100000000
    00000000000000000000000000FD0018
    6414961E000A202020202020000000FC
    00415355530A20202020202020200189
    02031DF04A0104101F2021225D5E5F23
    0904018301000065030C001000000000
    00000000000000000000000000000000
    00000000000000000000000000000000
    00000000000000000000000000000000
    00000000000000000000000000000000
    00000000000000000000000000000000
    000000000000000000000000000000BA

1200x900@60FPS:

    00FFFFFFFFFFFF0006B3B22401010101
    211E010380351E780EEE91A3544C9926
    0F505421080001010101010101010101
    0101010101012F2640A060841A303020
    3500132B2100001E0000001100000000
    00000000000000000000000000FD0018
    3C1E5A1E010A202020202020000000FC
    00524F47205047323438510A2020016D
    02031AC147901F041303120123090701
    8301000065030C001000000000000000
    00000000000000000000000000000000
    00000000000000000000000000000000
    00000000000000000000000000000000
    00000000000000000000000000000000
    00000000000000000000000000000000
    000000000000000000000000000000C1

2800X1252@60FPS:

00 ff ff ff ff ff ff 00 05 e3 77 25 24 00 00 00
01 1e 01 04 a5 37 1f 78 3a 44 55 a9 55 4d 9d 26
0f 50 54 21 08 00 d1 c0 b3 00 95 00 81 80 81 40
81 c0 01 01 01 01 b3 5b 40 a0 b0 e4 24 40 30 20
3a 00 29 37 21 00 00 1e 00 00 00 fd 00 32 4c 1e
63 1e 00 0a 20 20 20 20 20 20 00 00 00 fc 00 47
4c 4b 56 4d 0a 20 20 20 20 20 20 20 00 00 00 ff
00 41 48 4c 4c 31 39 41 30 30 30 30 33 36 01 db
02 03 1e f1 4b 01 03 05 14 04 13 1f 12 02 11 90
23 09 07 07 83 01 00 00 65 03 0c 00 10 00 02 3a
80 18 71 38 2d 40 58 2c 45 00 29 37 21 00 00 1e
01 1d 00 72 51 d0 1e 20 6e 28 55 00 29 37 21 00
00 1e 8c 0a d0 8a 20 e0 2d 10 10 3e 96 00 29 37
21 00 00 18 8c 0a d0 90 20 40 31 20 0c 40 55 00
29 37 21 00 00 18 f0 3c 00 d0 51 a0 35 50 60 88
3a 00 29 37 21 00 00 1c 00 00 00 00 00 00 00 d0
2 Likes
2

Thanks for these. When I use 2560x1600 50hz, the resolution in the dropdown does in fact say Customize(2560x1600). However the host machine just stays at 1080p. But if I choose the built in 4k/30, the host changes to 4k/30.

Any suggestions? BTW the host is a laptop with a monitor attached to it. When I choose 4k/30, the secondary display changes to 'Lontium semi' which I think is the name used for the built-in options, which is good.

When I use your 2560x1600/50, the second display is just the name of my external monitor, which is not good. Thoughts?

3

I made the 2560x1600@30FPS EDID in your last post, please try to see if it works

4

I know it's above the physical limits, but is there something comparable 2880 x 1252. I have a particular window size I need to fit this in and the way it has worked the text isn't sharp enough with the various other settings trying to get to this size

5

00 ff ff ff ff ff ff 00 05 e3 77 25 24 00 00 00

01 1e 01 04 a5 37 1f 78 3a 44 55 a9 55 4d 9d 26

0f 50 54 21 08 00 d1 c0 b3 00 95 00 81 80 81 40

81 c0 01 01 01 01 b3 5b 40 a0 b0 e4 24 40 30 20

3a 00 29 37 21 00 00 1e 00 00 00 fd 00 32 4c 1e

63 1e 00 0a 20 20 20 20 20 20 00 00 00 fc 00 47

4c 4b 56 4d 0a 20 20 20 20 20 20 20 00 00 00 ff

00 41 48 4c 4c 31 39 41 30 30 30 30 33 36 01 db

02 03 1e f1 4b 01 03 05 14 04 13 1f 12 02 11 90

23 09 07 07 83 01 00 00 65 03 0c 00 10 00 02 3a

80 18 71 38 2d 40 58 2c 45 00 29 37 21 00 00 1e

01 1d 00 72 51 d0 1e 20 6e 28 55 00 29 37 21 00

00 1e 8c 0a d0 8a 20 e0 2d 10 10 3e 96 00 29 37

21 00 00 18 8c 0a d0 90 20 40 31 20 0c 40 55 00

29 37 21 00 00 18 f0 3c 00 d0 51 a0 35 50 60 88

3a 00 29 37 21 00 00 1c 00 00 00 00 00 00 00 d0

1 Like
6

Hi

When I try the lowest reoslution of 800x600@60fps: I get the Customize text in the EDID drop down saying 1920x1080.

Is this correct? I need to lowest resoltuion to work with our Dell servers I think which are very old R610./

7

The final output resolution largely depends on the controlled computer.This is the actual readable content of the 800x600 EDID.

edid-decode (hex):

00 ff ff ff ff ff ff 00 0d 12 11 75 70 03 00 00
05 17 01 04 95 2b 1d 78 e2 80 42 ac 51 30 b4 25
10 50 53 00 00 00 01 01 01 01 01 01 01 01 01 01
01 01 01 01 01 01 f1 0e 20 e0 30 58 18 20 20 50
34 00 07 44 21 00 00 1c 00 00 00 00 00 00 00 00
00 00 00 00 00 00 00 00 00 00 00 00 00 fd 00 38
4c 1e 53 11 00 0a 20 20 20 20 20 20 00 00 00 fc
00 43 48 37 35 31 31 42 0a 20 20 20 20 20 00 12

----------------

Block 0, Base EDID:
  EDID Structure Version & Revision: 1.4
  Vendor & Product Identification:
    Manufacturer: CHR
    Model: 29969
    Serial Number: 880
    Made in: week 5 of 2013
  Basic Display Parameters & Features:
    Digital display
    Bits per primary color channel: 6
    DisplayPort interface
    Maximum image size: 43 cm x 29 cm
    Gamma: 2.20
    DPMS levels: Standby Suspend Off
    Supported color formats: RGB 4:4:4
    First detailed timing includes the native pixel format and preferred refresh rate
  Color Characteristics:
    Red  : 0.6738, 0.3164
    Green: 0.1875, 0.7031
    Blue : 0.1455, 0.0625
    White: 0.3125, 0.3261
  Established Timings I & II: none
  Standard Timings: none
  Detailed Timing Descriptors:
    DTD 1:   800x600    59.861403 Hz   4:3     37.354 kHz     38.250000 MHz (519 mm x 324 mm)
                 Hfront   32 Hsync  80 Hback  112 Hpol N
                 Vfront    3 Vsync   4 Vback   17 Vpol P
    Empty Descriptor
    Display Range Limits:
      Monitor ranges (GTF): 56-76 Hz V, 30-83 kHz H, max dotclock 170 MHz
    Display Product Name: 'CH7511B'
Checksum: 0x12
8

The 800x600 EDID has the same issue of displaying in the Customize drop down description the wrong resolution meaning I am not confident it is being set correctly. it does not work with the BIOS still regardless.

FROM THE APP SCREEN

EDID

Customize(1024x768)

Can you explain why the App shows the wrong resolution - is it just a bug?

9

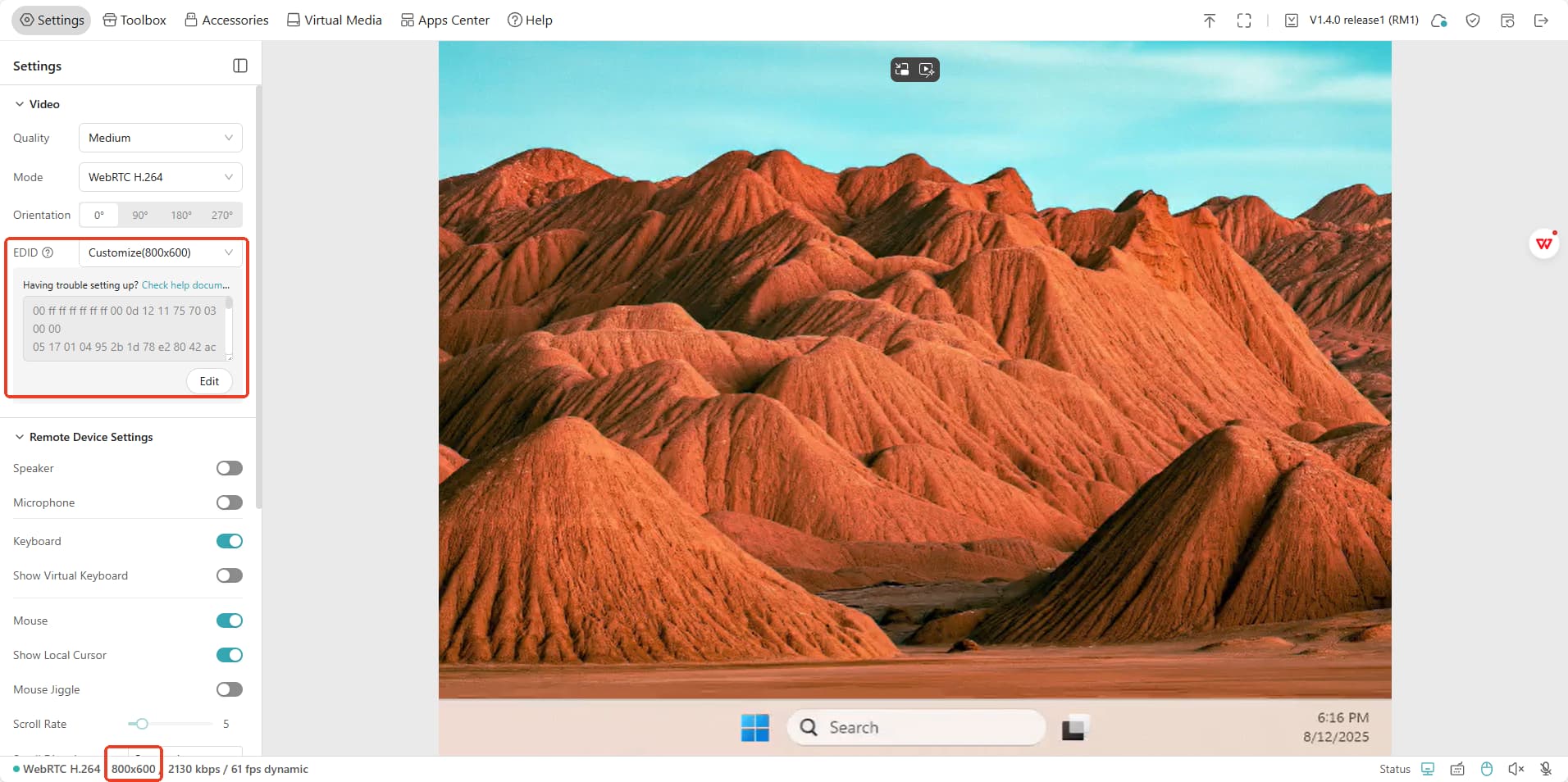

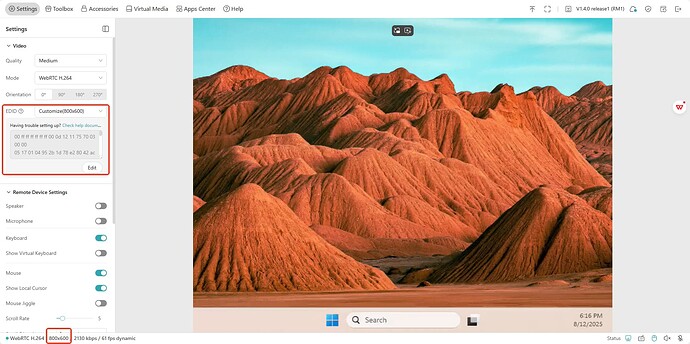

Hi, In my place the 800x600 EDID decode works fine.

768468ac2c6de6d83ab0b343f9e49dba
768468ac2c6de6d83ab0b343f9e49dba1912×954 173 KB

Please check if your controlled computer is in multi-screen and mirror mode. If there is another screen with a different resolution, it will cause the KVM EDID customization to fail. Also, please ensure that your computer supports 800x600 resolution.

10

Timing Bitmap
-720×400 @ 70 Hz
720×400 @ 88 Hz
-640×480 @ 60 Hz
-640×480 @ 67 Hz
-640×480 @ 72 Hz
-640×480 @ 75 Hz
-800×600 @ 56 Hz
-800×600 @ 60 Hz
-800×600 @ 72 Hz
-800×600 @ 75 Hz
-832×624 @ 75 Hz
1024×768i @ 87 Hz
-1024×768 @ 60 Hz
-1024×768 @ 72 Hz
-1024×768 @ 75 Hz
1280×1024 @ 75 Hz
1152x870 @ 75 Hz

Am I understanding this incorrectly? A lot of 60+Hz are enabled?

11

Is there one for 5120x1440@30hz?

12

No, this chip does not support any resolution exceeding 4096.

13

Is that an internal buffer limitation? 5120x1440 is less pixels / less bandwidth required than 4k (3840x2160)

14

Yeah.

1 Like
15

Any EDID for 1920x2160 ?? thx in advance

16

1200x1920

00 ff ff ff ff ff ff 00 05 e3 77 25 24 00 00 00

01 1e 01 04 a5 37 1f 78 3a 44 55 a9 55 4d 9d 26

0f 50 54 21 08 00 d1 c0 b3 00 95 00 81 80 81 40

81 c0 01 01 01 01 e4 3e b0 a0 40 80 37 70 30 20

3a 00 29 37 21 00 00 1e 00 00 00 fd 00 1e 3c 1e

63 1e 00 0a 20 20 20 20 20 20 00 00 00 fc 00 47

4c 4b 56 4d 0a 20 20 20 20 20 20 20 00 00 00 ff

00 41 48 4c 4c 31 39 41 30 30 30 30 33 36 01 0c

02 03 1e f1 4b 01 03 05 14 04 13 1f 12 02 11 90

23 09 07 07 83 01 00 00 65 03 0c 00 10 00 02 3a

80 18 71 38 2d 40 58 2c 45 00 29 37 21 00 00 1e

01 1d 00 72 51 d0 1e 20 6e 28 55 00 29 37 21 00

00 1e 8c 0a d0 8a 20 e0 2d 10 10 3e 96 00 29 37

21 00 00 18 8c 0a d0 90 20 40 31 20 0c 40 55 00

29 37 21 00 00 18 f0 3c 00 d0 51 a0 35 50 60 88

3a 00 29 37 21 00 00 1c 00 00 00 00 00 00 00 d0
3840x1620@30
00 ff ff ff ff ff ff 00 05 e3 77 25 24 00 00 00

01 1e 01 04 a5 37 1f 78 3a 44 55 a9 55 4d 9d 26

0f 50 54 21 08 00 d1 c0 b3 00 95 00 81 80 81 40

81 c0 01 01 01 01 f4 4c 00 a0 f0 54 17 60 30 20

3a 00 29 37 21 00 00 1e 00 00 00 fd 00 1e 3c 1e

63 1e 00 0a 20 20 20 20 20 20 00 00 00 fc 00 47

4c 4b 56 4d 0a 20 20 20 20 20 20 20 00 00 00 ff

00 41 48 4c 4c 31 39 41 30 30 30 30 33 36 01 4a

02 03 1e f1 4b 01 03 05 14 04 13 1f 12 02 11 90

23 09 07 07 83 01 00 00 65 03 0c 00 10 00 02 3a

80 18 71 38 2d 40 58 2c 45 00 29 37 21 00 00 1e

01 1d 00 72 51 d0 1e 20 6e 28 55 00 29 37 21 00

00 1e 8c 0a d0 8a 20 e0 2d 10 10 3e 96 00 29 37

21 00 00 18 8c 0a d0 90 20 40 31 20 0c 40 55 00

29 37 21 00 00 18 f0 3c 00 d0 51 a0 35 50 60 88

3a 00 29 37 21 00 00 1c 00 00 00 00 00 00 00 d0
1 Like
17

No, it can't run at this resolution. I don't know why, but it just won't work.

18

T_T any other resolution with the same aspect ratio that you know of? 8/9 (0.8888)

19
00 ff ff ff ff ff ff 00 05 e3 77 25 24 00 00 00

01 1e 01 04 a5 37 1f 78 3a 44 55 a9 55 4d 9d 26

0f 50 54 21 08 00 d1 c0 b3 00 95 00 81 80 81 40

81 c0 01 01 01 01 67 3e a0 a0 50 54 2e 60 30 20

3a 00 29 37 21 00 00 1e 00 00 00 fd 00 1e 3c 1e

63 1e 00 0a 20 20 20 20 20 20 00 00 00 fc 00 47

4c 4b 56 4d 0a 20 20 20 20 20 20 20 00 00 00 ff

00 41 48 4c 4c 31 39 41 30 30 30 30 33 36 01 ce

02 03 1e f1 4b 01 03 05 14 04 13 1f 12 02 11 90

23 09 07 07 83 01 00 00 65 03 0c 00 10 00 02 3a

80 18 71 38 2d 40 58 2c 45 00 29 37 21 00 00 1e

01 1d 00 72 51 d0 1e 20 6e 28 55 00 29 37 21 00

00 1e 8c 0a d0 8a 20 e0 2d 10 10 3e 96 00 29 37

21 00 00 18 8c 0a d0 90 20 40 31 20 0c 40 55 00

29 37 21 00 00 18 f0 3c 00 d0 51 a0 35 50 60 88

3a 00 29 37 21 00 00 1c 00 00 00 00 00 00 00 d0

1440x1620

20

The EDID for 3840x1600, when pasted into Custom, the resolution that is shown then in the dropdown menu is 1920x1080. The controlled computer native res is 3840x1600 60hz. The controlling computer is 1920x1080.

Shouldn’t this Custom EDID be shown as 3840x1600? Not 1920x1080…
