Wireguard / OpenVPN connects but no LAN Access when running in Repeater Mode?

SmurfonToast · February 20, 2023, 9:28am

I have a Beryl AX MT3000 but I don’t think this issue is peculiar to this device.

I have good working Wireguard and OpenVPN profiles, each which works fine on an Airport Wifi. With either profile I can access home devices, RD etc. using my iPhone.

However using the same WG / OVPN profiles imported into the Beryl AX, with the Beryl AX running in Repeater Mode using the same Airport Wifi, whilst these both connect (separate instances) and show a green dot (connected), I do not get LAN Access when connected to Wifi in Repeater Mode?

I looked in the FAQ Docs and searched the forum and it appears this combination of repeater and VPN should work (noting that the GLiNET Docs saying to get a Repeater Working, turn off your VPN to start with); but for me this combination doesn’t work.

Is there a simple switch or guidance document where I can see I missed a step please?

Thanks!

k.

hansome · February 20, 2023, 9:37am

The same profile should be not connected at the same time. What about turning iPhone wireguard client off for a while?

SmurfonToast · February 20, 2023, 10:04am

Apologies if I was not clear; each of the iPhone VPNs are off when I test, in turn, each of the two router-based VPN profile(s).

elorimer · February 20, 2023, 12:38pm

Which firmware are you using? I’ve found the MT3000 worked better on something from the end of January onwards.

Also, give it a full minute to settle.

SmurfonToast · February 20, 2023, 1:05pm

Was using 4.2.0 beta 4 but now on today’s snapshot.

Is there a log I could supply ?

SmurfonToast · February 21, 2023, 12:32am

OK, I took two logs (this is copy paste from the GLiNEt WebAdmin, apologies for formatting, it came out like that). Plus two screencaps showing Repeater and VPN were connected (but nothing went through).

I am not sure if this can help identify anything?

I can try and get something from the Router they connect to, noting again that using a VPN through the phone directly, same wifi, same VPN profiles same VON Server works fine; just not when the profiles are used in the Router.

oVPN

“Tue Feb 21 08:04:30 2023 daemon.notice netifd: ovpnclient (17744): udhcpc: sending discover\nTue Feb 21 08:04:33 2023 daemon.notice netifd: ovpnclient (17744): udhcpc: no lease, failing\nTue Feb 21 08:04:33 2023 daemon.info avahi-daemon[3388]: Interface ovpnclient.IPv4 no longer relevant for mDNS.\nTue Feb 21 08:04:33 2023 daemon.info avahi-daemon[3388]: Leaving mDNS multicast group on interface ovpnclient.IPv4 with address 10.8.0.2.\nTue Feb 21 08:04:33 2023 daemon.info avahi-daemon[3388]: Withdrawing address record for 10.8.0.2 on ovpnclient.\nTue Feb 21 08:04:33 2023 daemon.info avahi-daemon[3388]: Joining mDNS multicast group on interface ovpnclient.IPv6 with address .\nTue Feb 21 08:04:33 2023 daemon.info avahi-daemon[3388]: New relevant interface ovpnclient.IPv6 for mDNS.\nTue Feb 21 08:04:33 2023 daemon.info avahi-daemon[3388]: Registering new address record for on ovpnclient.*.\nTue Feb 21 08:04:33 2023 daemon.info avahi-daemon[3388]: Joining mDNS multicast group on interface ovpnclient.IPv4 with address 10.8.0.2.\nTue Feb 21 08:04:33 2023 daemon.info avahi-daemon[3388]: New relevant interface ovpnclient.IPv4 for mDNS.\nTue Feb 21 08:04:33 2023 daemon.info avahi-daemon[3388]: Registering new address record for 10.8.0.2 on ovpnclient.IPv4.\nTue Feb 21 08:04:33 2023 daemon.notice netifd: Interface ‘ovpnclient’ is now up\nTue Feb 21 08:04:33 2023 daemon.notice netifd: Network device ‘ovpnclient’ link is up\nTue Feb 21 08:04:33 2023 daemon.notice netifd: ovpnclient (17744): route: SIOCDELRT: No such process\nTue Feb 21 08:04:33 2023 daemon.notice netifd: ovpnclient (17744): route: SIOCDELRT: No such process\nTue Feb 21 08:04:33 2023 user.notice mwan3[18935]: Execute ifup event on interface ovpnclient (ovpnclient)\nTue Feb 21 08:04:33 2023 user.notice mwan3[18935]: Starting tracker on interface ovpnclient (ovpnclient)\nTue Feb 21 08:04:35 2023 user.notice firewall: Reloading firewall due to ifup of ovpnclient (ovpnclient)\nTue Feb 21 08:04:35 2023 daemon.warn ovpnclient[17744]: WARNING: this configuration may cache passwords in memory – use the auth-nocache option to prevent this\nTue Feb 21 08:04:35 2023 daemon.notice ovpnclient[17744]: Initialization Sequence Completed\n”

WG

“Tue Feb 21 08:08:15 2023 daemon.notice netifd: Interface ‘wgclient’ is setting up now\nTue Feb 21 08:08:18 2023 user.notice wireguard-debug: USER=root ifname=wgclient ACTION=KEYPAIR-CREATED SHLVL=1 HOME=/ HOTPLUG_TYPE=wireguard LOGNAME=root DEVICENAME= TERM=linux SUBSYSTEM=wireguard PATH=/usr/sbin:/usr/bin:/sbin:/bin PWD=/\nTue Feb 21 08:08:21 2023 daemon.notice netifd: Interface ‘wgclient’ is now up\nTue Feb 21 08:08:21 2023 daemon.notice netifd: Network device ‘wgclient’ link is up\nTue Feb 21 08:08:22 2023 user.notice mwan3[27184]: Execute ifup event on interface wgclient (wgclient)\nTue Feb 21 08:08:22 2023 user.notice mwan3[27184]: Starting tracker on interface wgclient (wgclient)\nTue Feb 21 08:08:23 2023 user.notice firewall: Reloading firewall due to ifup of wgclient (wgclient)\nTue Feb 21 08:08:25 2023 user.notice wgclient-up: env value:T_J_A1_1=object T_J_V_ifname=string USER=root ifname=wgclient ACTION=KEYPAIR-CREATED SHLVL=2 J_V_keep=1 T_J_V_ipaddr=array HOME=/ T_J_T2_mask=string HOTPLUG_TYPE=wireguard T_J_V_interface=string J_A1_1=J_T2 J_V_ifname=wgclient T_J_V_link_up=boolean T_J_T2_ipaddr=string LOGNAME=root DEVICENAME= T_J_V_action=int K_J_A1= 1 J_V_ipaddr=J_A1 TERM=linux SUBSYSTEM=wireguard PATH=/usr/sbin:/usr/bin:/sbin:/bin J_T2_mask=32 CONFIG_LIST_STATE= J_V_interface=wgclient K_J_V= action ifname link_up keep ipaddr interface J_V_link_up=1 J_T2_ipaddr=10.6.0.4 J_V_action=0 N_J_V_link_up=link-up PROTO_IPADDR=10.6.0.4/32// T_J_V_keep=boolean PWD=/ JSON_CUR=J_V K_J_T2= ipaddr mask CONFIG_SECTIONS=global AzireVPN Mullvad FromApp group_1695 group_4662 group_7629 peer_8189 CONFIG_cfg030f15_ports=\nTue Feb 21 08:08:25 2023 user.notice wireguard-debug: USER=root ifname=wgclient ACTION=KEYPAIR-CREATED SHLVL=1 HOME=/ HOTPLUG_TYPE=wireguard LOGNAME=root DEVICENAME= TERM=linux SUBSYSTEM=wireguard PATH=/usr/sbin:/usr/bin:/sbin:/bin PWD=/\n”

SmurfonToast · February 21, 2023, 8:03am

I attach my Server (ASUS RT-AX86U) and Client (In Beryl AX Router, does not work) and Peer Profiles (in iPhone, Works).

FYI in my Asus Router I use Cloudflare 1.1.1.1 an 1.0.0.1 as DNS Servers, hence why the former is added to the WG config. I did try adding 1.1.1.1 as an additional DNS to the WG VPN Client config in the Beryl AX Router too; but that still doesn’t work (it is removed again as shown below).

SmurfonToast · February 22, 2023, 7:41am

alzhao or anyone? I provided all the details I could … any ideas please?

hansome · February 22, 2023, 12:11pm

Does this ping get any replay?

ping 10.0.0.1 -I wgclient

10.0.0.1 is the wireguard server tunnal IP.

SmurfonToast · February 22, 2023, 12:22pm

Thanks for getting back to me, I’ll try to test it at work tomorrow, where the WiFi is. No way to test at home as I’m inside the LAN?

hansome · February 22, 2023, 12:27pm

If you can ssh into Beryl AX terminal, it will be okay.

SmurfonToast · February 22, 2023, 12:29pm

I have a terminal App on my iPhone which I use to SSH so I will use that and post the results tomorrow.

SmurfonToast · February 23, 2023, 1:28am

Hi

Well not much happend TBH. This is it. I waited 5 minutes it just gets stuck. No reply.
Ctrl-C says 100% packet loss.

All profile details shown in the above configs, although pls note I have added 0.0.0.0/0 to the Allowed IPs in the Peer Profile (not shown above). My Beryl AX is now on 192.168.7.1 (to avoid Huawei 192.168.8.1 Modems).

Anything else I can check?

hansome · February 23, 2023, 1:51pm

Actually, you should ping 10.6.0.1 in your setup. But that’s okay. I think I’ve found the problem.
Please try to disable “IP masquerading” in the VPN dashboard setting.
192.168.9.0/24 is your VPN server site network, right?

SmurfonToast · February 24, 2023, 1:34am

Noted on 10.6.0.1. I tried that and no change to the ping result. See here:

I tried disabling “IP masquerading” in the WG VPN dashboard setting. No change.
In fact I tried various combinations of “IP masquerading” and “Allow Remote Access LAN”.

I also tried this on the OpenVPN profile (which is also not workign as a Client Profile in the AX Router); also no go.

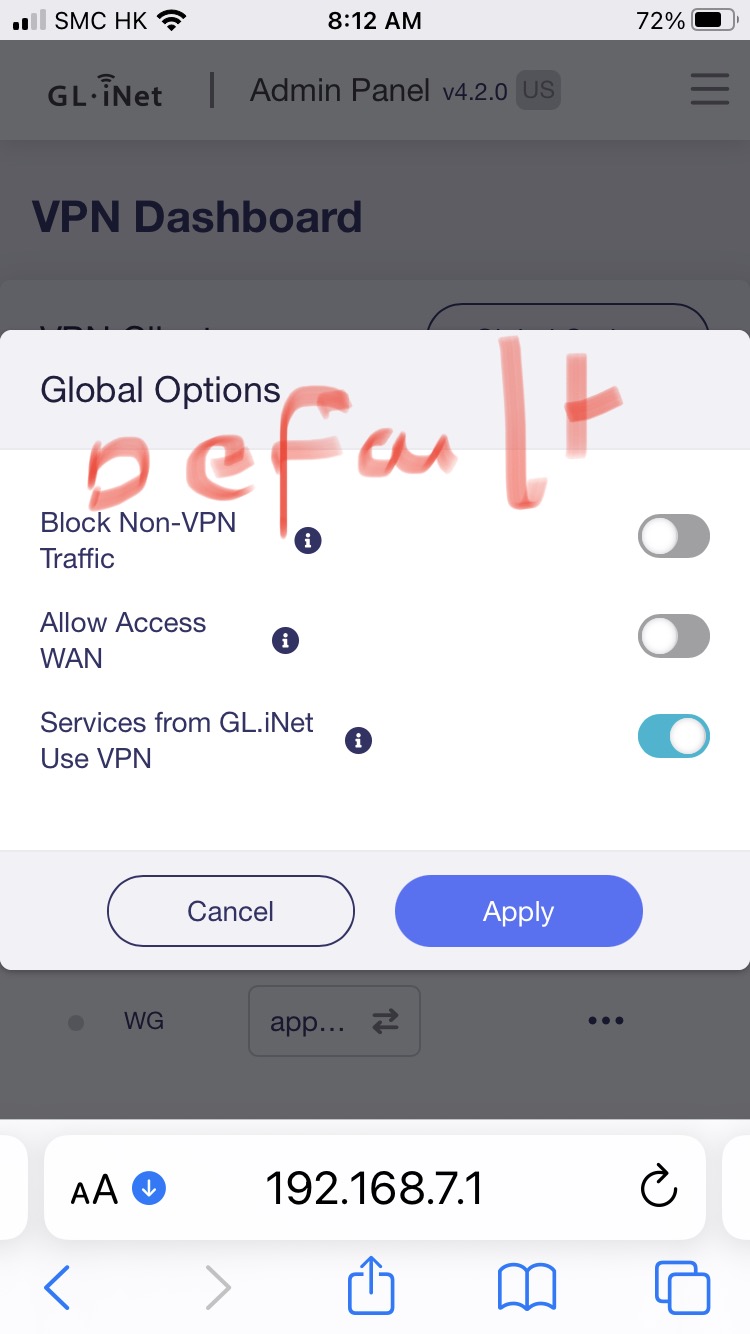

I also tried various combinations of the GLOBAL Options. No go.

I would note that it is pretty confusing that SOME of the VPN Options available in the Web Admin Panel are nto available in the App.

Yes 192.168.9.0/24 is my VPN Server network (ASUS RT-AX86U), but I don’t think the issue lies with the Server. I can via Wifi or LTE use the Wireguard and OpenVPN iOS Apps and succesfiully connect each time. For the Wireguard App the ONLY change to the profile given to by my ASUS VPN Server was that I had to add 192.168.9.0/24 to the Allowed IPs in the WG App Client config as shown here:

This is a really frustrating setup issue, surely it cannot be this hard. I simply cannot fathom that what works via a WG App to my home router cannot work trying to use the Beryl AX as a WG (or indeed OpenVPN) Client using the same VPN profiles. I can even get through to my ASUS Network via VPN using the iOS APP, with my phone connected to the Beryl in repeater mode (but not as a VPN Client).

k.

hansome · February 24, 2023, 7:50am

Sorry that this issue frustrating you for so long. It’s my first time learning about this use case so I’m not familiar with it. After check more about your config I found it Allowed IPs related issue.
The right setup step is to change to “Auto Detect” mode:

It’s indeed sort of complicated, as to meet the needs of different user scenarios. We’ll try to improve that.

Regards.

SmurfonToast · February 24, 2023, 8:21am

Oh my goodness, you’re an absolute star hansome!

Thank you for your patience! I have no idea what that “Auto Detect” Mode does, but together with “IP masquerading” ON (not off as above), BOTH the OpenVPN and the WG profiles work.

Absolutely fabulous. I am not sure what MTU should be because there is a glitch (separate thread, see here) where it gets stuck on 0, so for now I just put in 1280 (see point #2 in that thread).

Please, please put this in the Docs (I can see that Auto Detect means the Profile uses the Config Files Routing Rules).

Happy Days…

k.

SmurfonToast · February 24, 2023, 9:52am

One request please; if not already in there, could you put this selection from the default Global Proxy to Auto Detect in the App? I couldn’t see it but I may have missed it.

hansome · February 25, 2023, 11:57am

As you suggested, I tested Global Proxy and Auto Detect mode, seems more suitable route rules are configured by Auto Detect mode whenever the wg .cong file looks like. We will discuss this internally.
Thank you.

elorimer · February 26, 2023, 8:24pm

This isn’t working the way I expect, and I don’t think it is actually solved.

I have an openvpn server running on an Asus router, set up so that clients that connect can connect both the the LAN behind the Asus, and also access the internet over the tunnel. So the openvpn server pushes both a route to the LAN behind the Asus, and also pushes redirect-gateway. On a Beryl with 4.1 or 4.2 loaded, and a Beryl with 4.2b loaded, with Auto-detect selected, a connection is made, and I can access devices on the LAN behind the Asus, but my internet traffic does not go over the tunnel (a tracert shows this). So it is as if the Beryl and Beryl AX are executing a “pull-filter ignore redirect-gateway” command.

If I turn on Global Proxy, then internet traffic clearly goes over the tunnel, and I can still access devices on the LAN behind the Asus.

I’m going to load 3.215 on the Beryl and see if the expected behavior is restored.

EDIT: On 3.215 the Beryl sends internet traffic over the tunnel as expected, but the ignore redirect command isn’t observed.
